Smartmount Flat Wall Mount for 50" Microsofta Hub

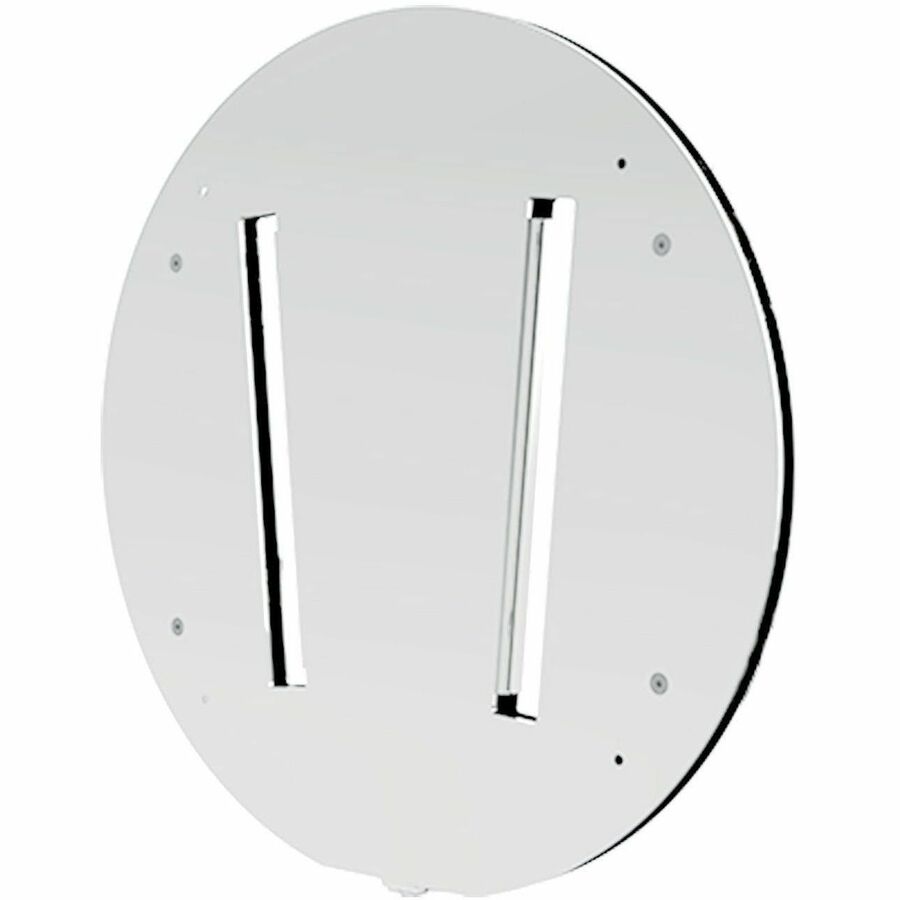

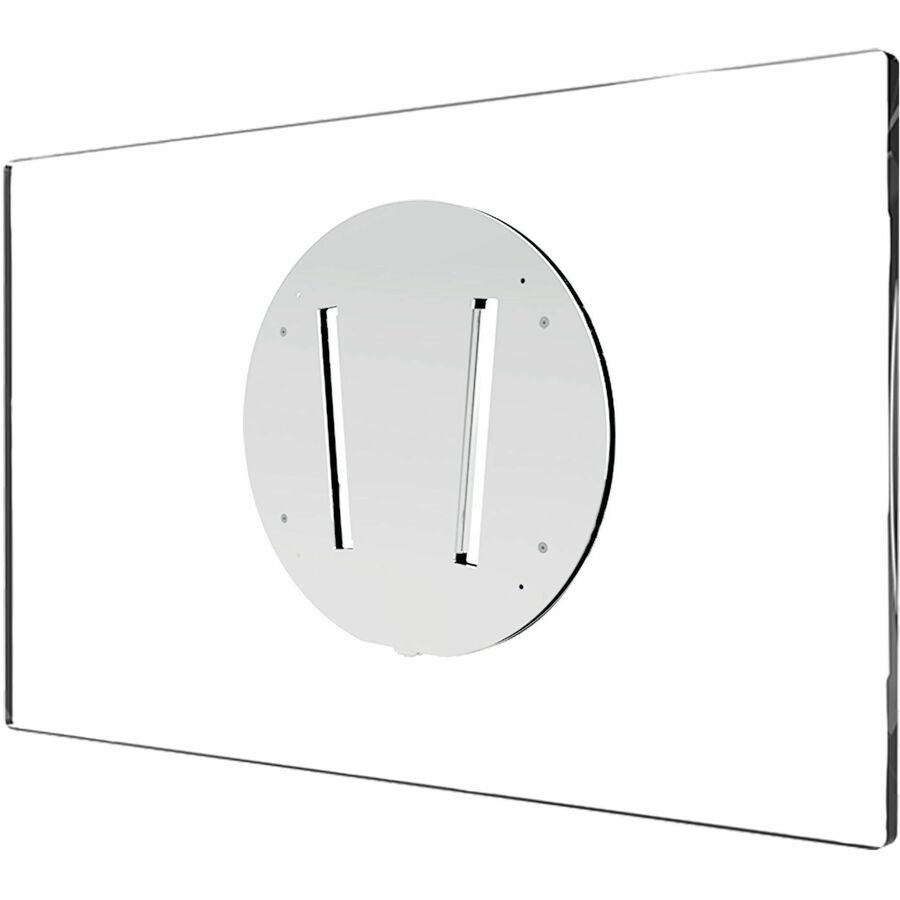

The Peerless-AV SmartMount SF640-HUB2 is a dedicated flat wall mount for the 50-inch Microsoft Surface Hub 2S and Surface Hub 3 interactive whiteboards. Its circular form matches the rear of the Surface Hub while maintaining direct access to essential power and data connections. The low-profile configuration positions the installed display only 3.52 inches (89.4 mm) from the wall, creating a sleek, ADA-compliant installation without obstructing the computing cartridge.

Ideal Use Cases

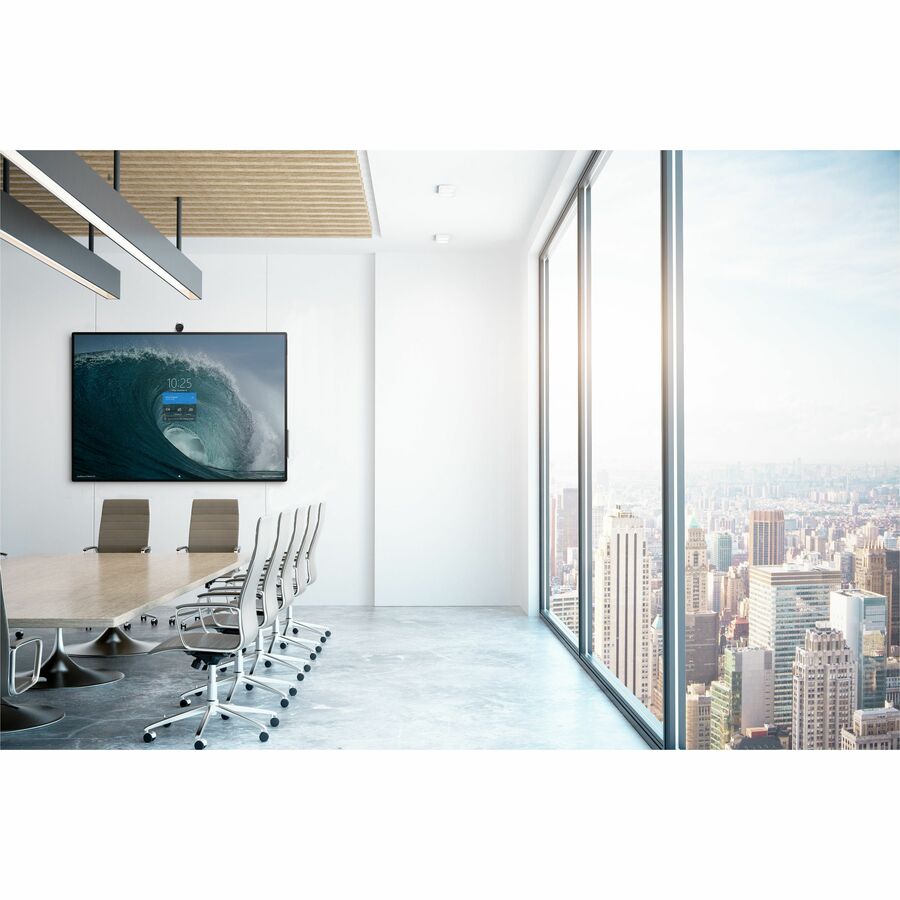

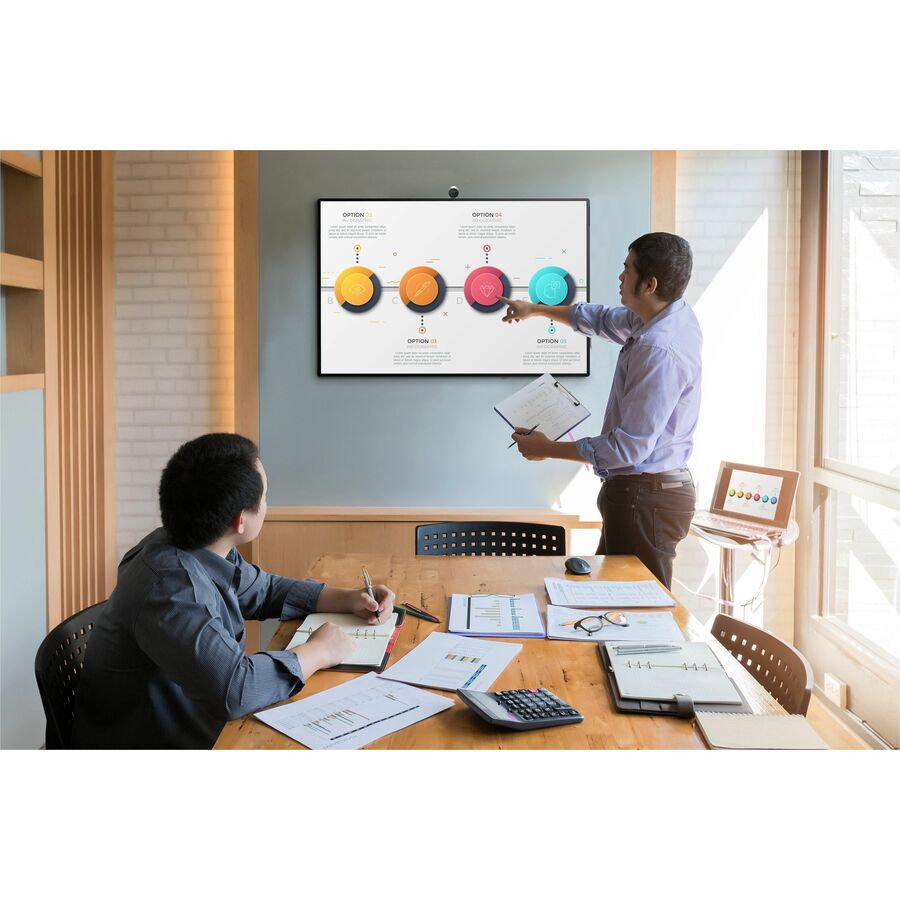

This mount is suited to spaces where a 50-inch Microsoft Surface Hub serves as a fixed collaborative display or interactive whiteboard. Its flat, wall-mounted format works well when floor space must remain open and the display needs to sit close to the wall. Supported installation surfaces include wood stud, concrete, cinder block, and breeze block walls. The white powder-coated finish coordinates with the Surface Hub and supports a clean presentation in meeting, collaboration, and shared-work environments.

Why Choose This Model

The SF640-HUB2 is designed specifically around the physical configuration of the 50-inch Surface Hub rather than serving as a general-purpose display mount. Its dedicated 350 x 350 mounting pattern is VESA compatible, and its 80 lb maximum load capacity accommodates the supported interactive whiteboard. The circular mount design follows the shape of the Surface Hub’s rear panel, preserving access where it matters. This purpose-built approach reduces the compromises that can arise when a universal rectangular mount is used with a uniquely shaped display.

Installation and Integration

The mount measures 22.24 inches high by 22.24 inches wide and has a listed depth of 0.52 inches. Once the Surface Hub is installed, the complete mounting arrangement holds the display 3.52 inches from the wall. This placement provides a low-profile appearance while meeting the stated ADA-compliant installation design. Assembly is required, and the package includes the flat wall mount, wall and display installation hardware, and installation instructions.

Installers retain direct access to the Surface Hub’s power and data connections after mounting. The design also provides complete access to the computing cartridge, allowing it to be removed and reinstalled without taking the display off the wall. This accessibility is particularly useful when the cartridge requires attention after the initial installation.

Performance Highlights

The SF640-HUB2 supports screens up to 50 inches and carries a maximum load of 80 lb. Its dedicated mounting pattern, wall-mountable form factor, and low-profile construction are tailored to Microsoft Surface Hub 2S and 3 compatibility. The mount itself weighs approximately 13.80 lb. Its white powder-coated finish provides the specified exterior treatment, while RoHS and VESA certifications document its applicable environmental and mounting standards.

What Makes It Different

The defining feature of this model is the combination of a Surface Hub-specific circular shape and service access. Many flat mounts concentrate only on placing a display near the wall. The SF640-HUB2 also accounts for the locations of the Surface Hub’s connections and removable computing cartridge. Users can reach the power and data interfaces directly, while service personnel can remove or reinstall the cartridge without first removing the interactive whiteboard. The 3.52-inch installed profile balances close-to-wall placement with this continuing access.

Final Assessment

For a fixed 50-inch Microsoft Surface Hub 2S or Surface Hub 3 installation, the SF640-HUB2 offers a dedicated alternative to a universal wall mount. It combines an 80 lb load rating, 350 x 350 VESA compatibility, support for several common wall constructions, and included installation hardware. Its circular design, low-profile placement, connection access, and unobstructed computing-cartridge access make it especially appropriate when appearance and post-installation accessibility must be considered together. Peerless-AV backs the mount with a lifetime limited warranty.
