Ultra Think Flat Video Wall Mount LCD/Plasma

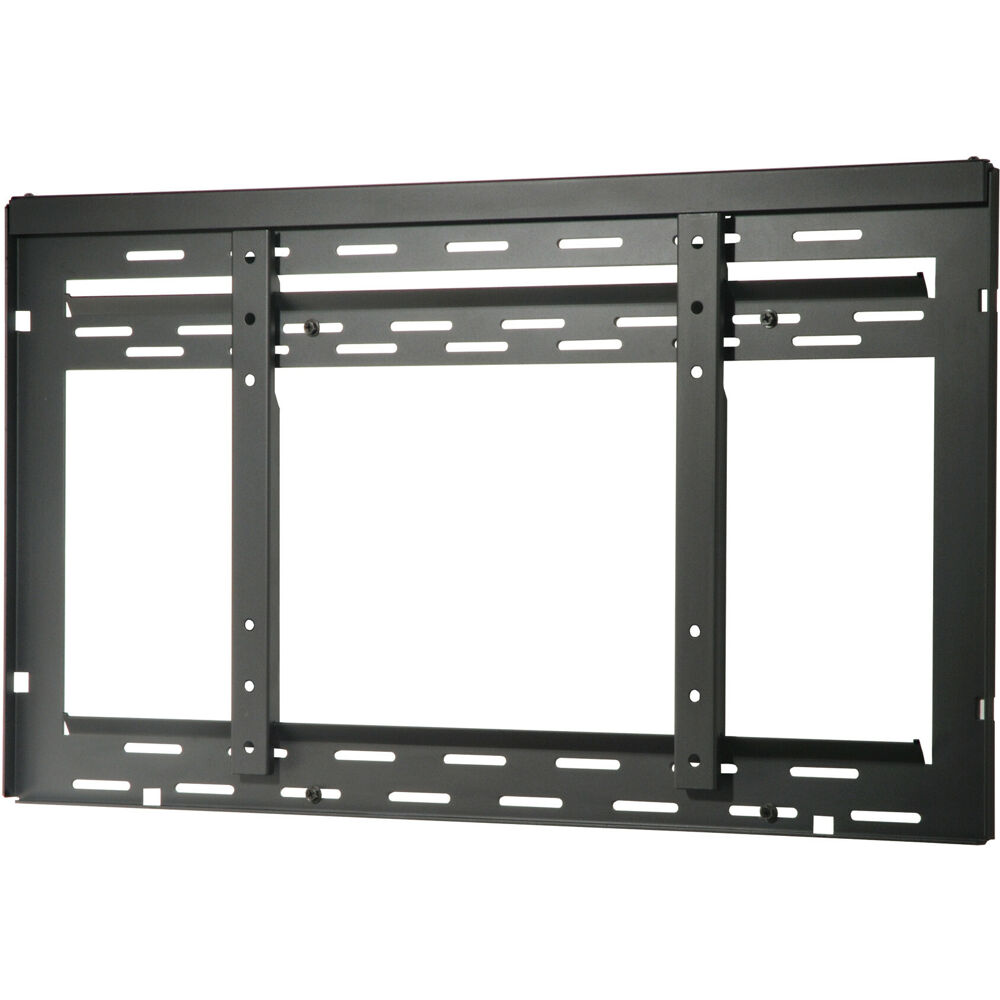

The Peerless-AV SmartMount DS-VW650 is an ultra-thin flat wall mount developed for video walls using displays 40 inches or larger. Its steel construction supports displays weighing up to 75 lb (34 kg), while its flat mounting profile positions each display tight to the wall. The modular design combines horizontal adjustment with custom pre-sized spacers to simplify alignment and support video wall arrangements in virtually any configuration.

Ideal Use Cases

The DS-VW650 is designed for flat-panel displays, video walls, digital signage displays, and televisions. It is a practical choice when multiple displays must be arranged into a coordinated wall installation without repeated measuring and guesswork. Its 40-inch minimum supported screen size makes it suitable for larger display installations, while the 75 lb load capacity accommodates compatible displays within that weight limit.

Supported VESA mounting patterns include 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, and 600 x 400. This range allows the mount to work with multiple compatible display configurations while retaining its dedicated video wall function.

Why Choose This Model

This model emphasizes precise placement, a low-profile presentation, and an installation process built around modular components. Simple horizontal adjustment helps installers position displays after mounting, which is particularly useful when aligning adjacent screens. Custom pre-sized spacers further reduce the need to calculate display spacing manually, saving valuable installation time.

The DS-VW650 is also identified as scratch resistant, tamper resistant, and theft resistant. A safety and security locking rail attaches at the top of the mounting assembly, while the included security hardware supports installations where display protection is an important consideration. Its black finish combines powder coating and fused epoxy over the steel structure.

Installation and Integration

The mounting system includes a wall plate and VESA attachment rails designed to simplify placing the display on the wall. Once the compatible rails are attached, the display can be positioned on the wall plate and secured with the safety and security locking rail. Installation hardware and security hardware are supplied with the mount.

Assembly is required. Before installation, confirm that the display is at least 40 inches, weighs no more than 75 lb, and uses one of the listed VESA patterns. The mount measures 35 inches wide and 20.18 inches high and has an approximate product weight of 13.50 lb. These measurements can be used when planning wall space and the overall video wall layout.

Performance Highlights

• Supports compatible displays weighing up to 75 lb (34 kg).
• Designed for displays 40 inches or larger.
• Provides a flat, ultra-thin wall mounting profile.
• Supports seven VESA patterns ranging from 200 x 200 to 600 x 400.
• Offers horizontal adjustment for display positioning.
• Uses steel construction with a black powder-coated and fused-epoxy finish.
• Includes a locking rail and security hardware.

The mount is TAA compliant and manufactured in the United States. It also complies with the Restriction of Hazardous Substances standard and is listed with RoHS and TAA certifications.

What Makes It Different

The DS-VW650 brings together an ultra-thin mounting profile and a modular approach to video wall installation. Rather than relying solely on individual measurements for every display position, the system uses horizontal adjustment and custom pre-sized spacers to support consistent arrangement. This approach is intended to make complex video wall configurations easier to plan and install.

Its dedicated video wall function distinguishes it from a basic flat-panel wall mount. The wall plate, attachment rails, locking rail, and supplied hardware form an integrated mounting package for compatible displays. Scratch-, tamper-, and theft-resistant characteristics add practical value in installations where equipment remains accessible.

Final Assessment

The Peerless-AV SmartMount DS-VW650 is a focused solution for ultra-thin video wall installations using compatible displays at least 40 inches in size and no heavier than 75 lb. Its steel construction, supported VESA range, horizontal adjustment, modular spacing approach, and security components address the essential requirements of display placement and protection. A five-year limited warranty supports the mount for long-term installation planning.
