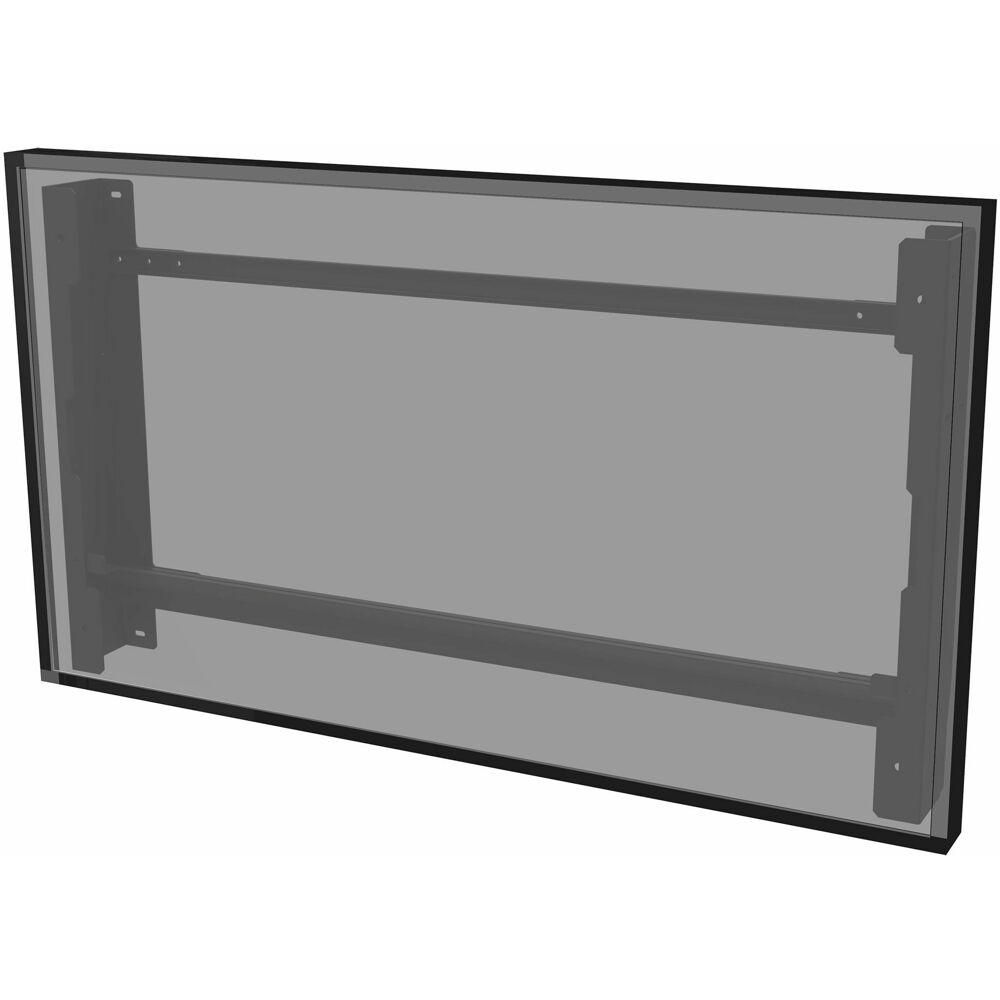

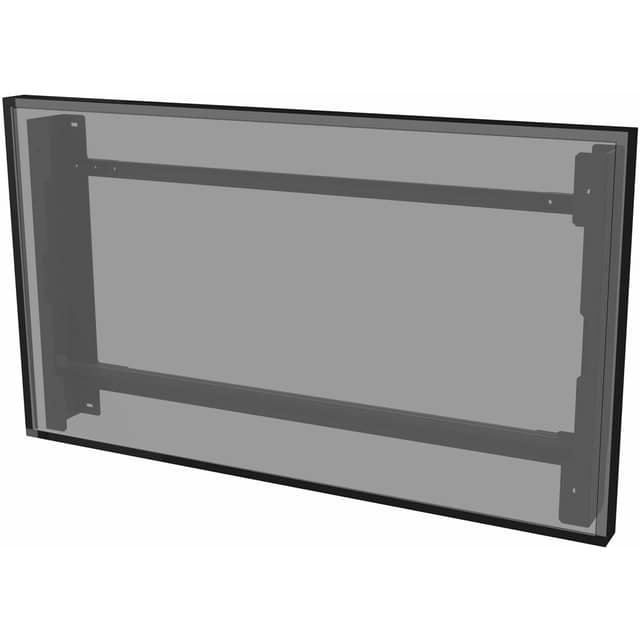

Outdoor Landscape Mount for LG 55XE4F

Ideal Use Cases

The Peerless-AV EWL-55XE4F is purpose-designed for landscape installation of the LG 55-inch XE4F-M Series High Brightness Outdoor Display. Its dedicated mount pattern and outdoor construction make it a direct fit for projects using this specific display. Peerless-AV identifies retail and mass-transit environments as suitable applications, particularly where a wall-mounted outdoor display needs a clean profile and an adjustable viewing angle.

Weatherproof and corrosion-resistant materials support year-round outdoor use. Tamper-resistant and theft-resistant characteristics, together with included security hardware, address installations exposed to public access. The black powder-coated finish provides a consistent appearance for landscape-oriented display systems.

Why Choose This Model

The defining advantage of the EWL-55XE4F is its exclusive compatibility with the LG 55-inch XE4F-M Series display. It supports a maximum screen size of 55 inches and a maximum load of 90 lb. The dedicated configuration removes uncertainty about the intended display, orientation, and application while retaining VESA compatibility.

The mount also combines positioning, cable organization, security, and airflow provisions in one outdoor mounting solution. Its tilt range extends from 0 to 8 degrees, allowing the installed display angle to be adjusted within the specified range. Cable management supports a more organized installation, while air baffles help maintain proper airflow to the display.

Installation and Integration

The EWL-55XE4F is a wall-mountable model intended for landscape orientation, and assembly is required. The package contains one EWL-55XE4F wall mount, adaptor plates, wall plates, air baffles, and outdoor-rated mounting hardware. These supplied components are specifically associated with the supported LG display and outdoor mounting application.

The mount measures 48.75 inches high, 28 inches wide, and 4.31 inches deep. Its approximate weight is 32 lb, information that can be used when planning handling and wall placement. Once assembled, the tilt function provides adjustment between the specified minimum of 0 degrees and maximum of 8 degrees. The air baffles should be incorporated as part of the dedicated installation so the display receives the intended airflow.

The technical data identifies the mount as VESA compatible while also classifying its mount pattern as dedicated. Integrators should therefore treat the LG 55-inch XE4F-M Series compatibility designation as the controlling fit requirement rather than assuming compatibility with other 55-inch displays.

Performance Highlights

• Supports one LG 55-inch XE4F-M Series High Brightness Outdoor Display in landscape orientation.
• Provides a maximum load capacity of 90 lb and supports screens up to 55 inches.
• Offers tilt adjustment from 0 to 8 degrees for controlled display positioning.
• Uses weatherproof and corrosion-resistant materials with a black powder-coated finish.
• Includes security hardware and is described as tamper resistant and theft resistant.
• Uses air baffles to help ensure proper airflow to the installed display.
• Includes cable management for organizing display cabling at the mounting location.

What Makes It Different

This model is differentiated by the combination of dedicated display compatibility and outdoor-focused construction. It is not presented simply as a general-purpose 55-inch mount; Peerless-AV designed it exclusively for the LG XE4F-M Series model identified in the compatibility data. Its security hardware, air baffles, outdoor-rated mounting hardware, and resistance to weather and corrosion address requirements associated with exposed installations.

The EWL-55XE4F is listed as RoHS and TAA certified or compliant, with TAA compliance explicitly specified. It is supplied as one unit and covered by a five-year limited warranty. These documented details make its construction, package contents, compliance status, and warranty clear during product evaluation.

Final Assessment

The Peerless-AV EWL-55XE4F is a focused mounting solution for the LG 55-inch XE4F-M Series High Brightness Outdoor Display. Its 90 lb capacity, 0-to-8-degree tilt range, landscape orientation, weatherproof construction, security provisions, cable management, and airflow baffles address the core demands of retail and mass-transit outdoor display installations. For projects using the specified LG display, it delivers a purpose-built wall-mounting package backed by a five-year limited warranty.
