PeerLessAV Paramount Motorized Adjustable Cart for 50" to 95

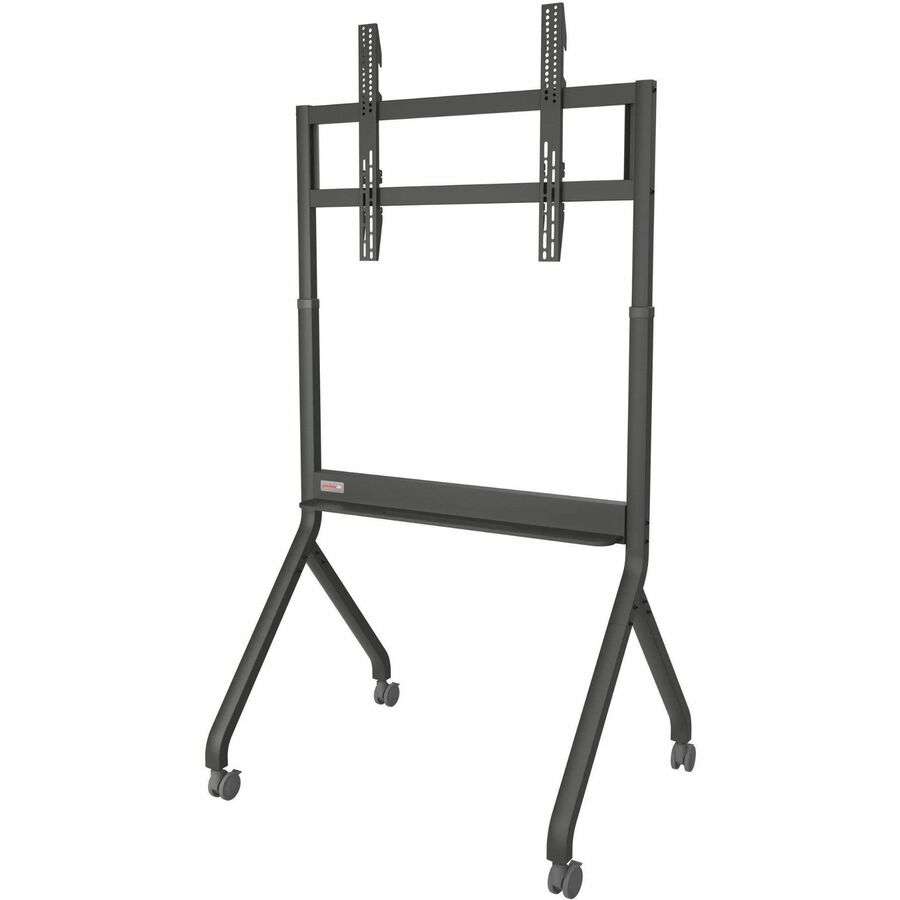

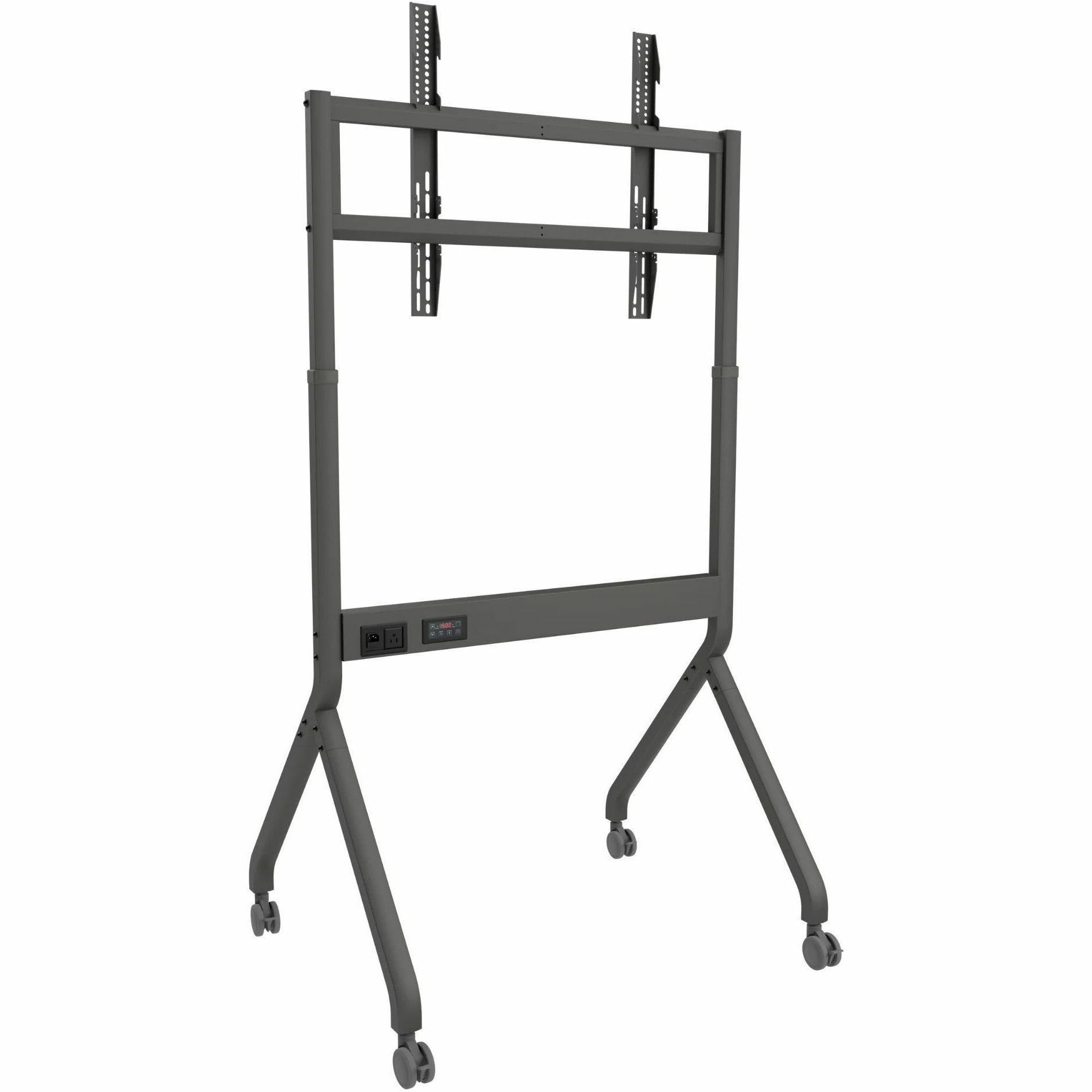

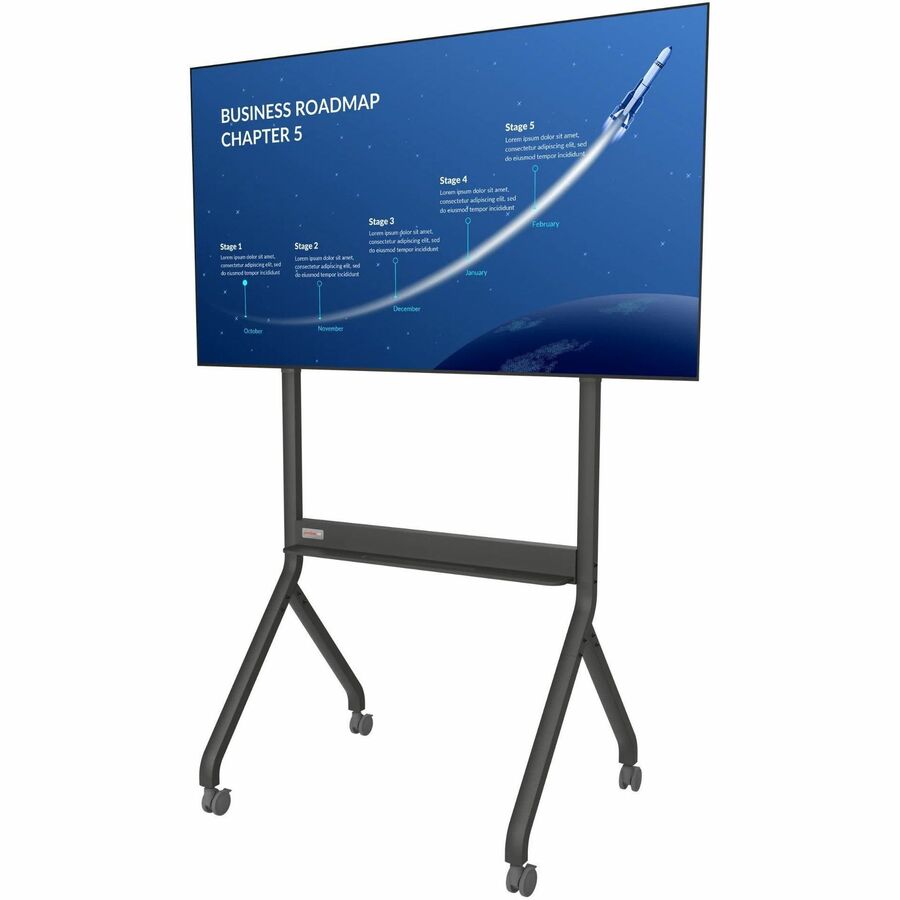

The Peerless-AV® Paramount™ PR565ML3 is a motorized height-adjustable cart designed to mount, move, and store 50- to 95-inch interactive displays. Its integrated actuators raise or lower the mounted display by up to 9.8 inches (250 mm) at the touch of a button. A cold-rolled steel frame, large wall plate, fixed shelf, and locking casters create a functional mobile display solution with a maximum load capacity of 200 lb.

Ideal Use Cases

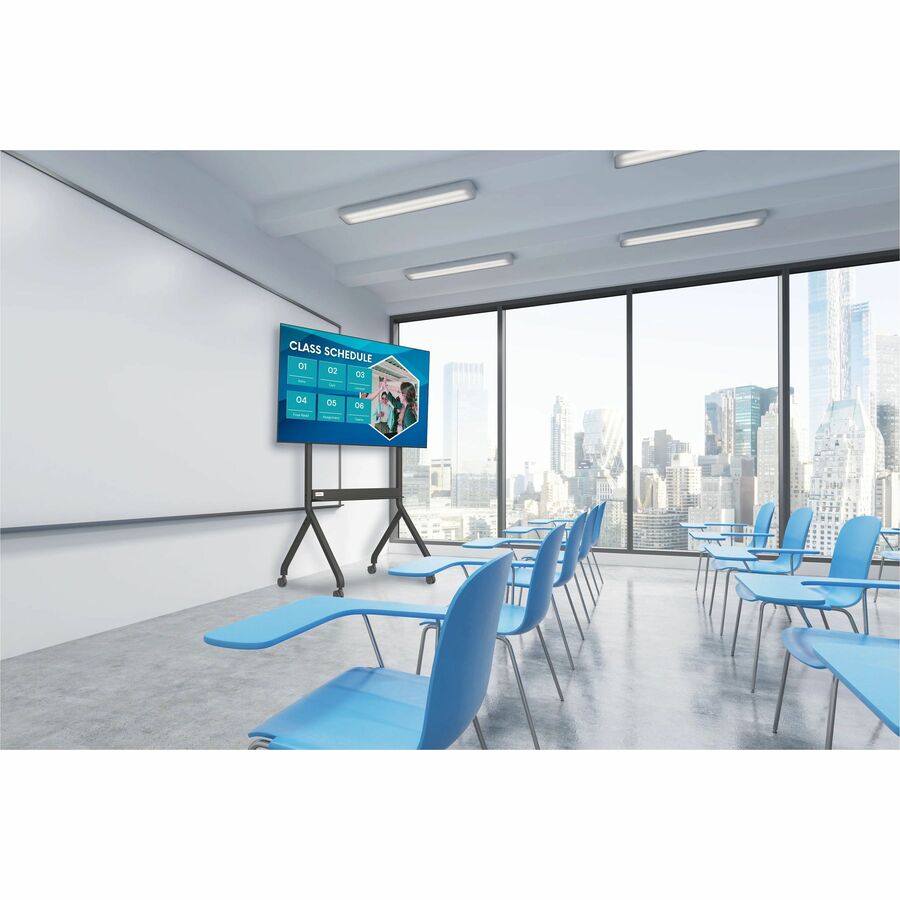

This cart is designed for touchscreen and interactive-display applications that require both height adjustment and room-to-room mobility. Four 3-inch casters make it possible to reposition the installation, while the locking design helps provide a stable foundation when the display is in use. The motorized adjustment system is especially useful when a screen must be raised or lowered for different users or viewing requirements. Support for display sizes from 50 to 95 inches accommodates a broad range of interactive screens.

Why Choose This Model

The PR565ML3 combines powered height adjustment, high-capacity display support, and a mobile steel structure in one system. Integrated actuators provide up to 9.8 inches of vertical adjustment without requiring the display to be manually lifted. The cart supports loads up to 200 lb and is VESA mount compatible with a 900 x 600 mounting pattern. Its large wall plate and locking casters are designed to provide the stability needed for touch applications, while the gray textured powder-coated finish gives the cart a clean, durable exterior.

Installation and Integration

Assembly is required. The package includes left and right base frames, four leg assemblies, a horizontal structure with an integrated motor, a cross support plate, a fixed shelf, two adaptor brackets, a NEMA 5-15p power cord, hardware, and instructions. Before installation, confirm that the display is between 50 and 95 inches, weighs no more than 200 lb, and matches the supported 900 x 600 mounting pattern.

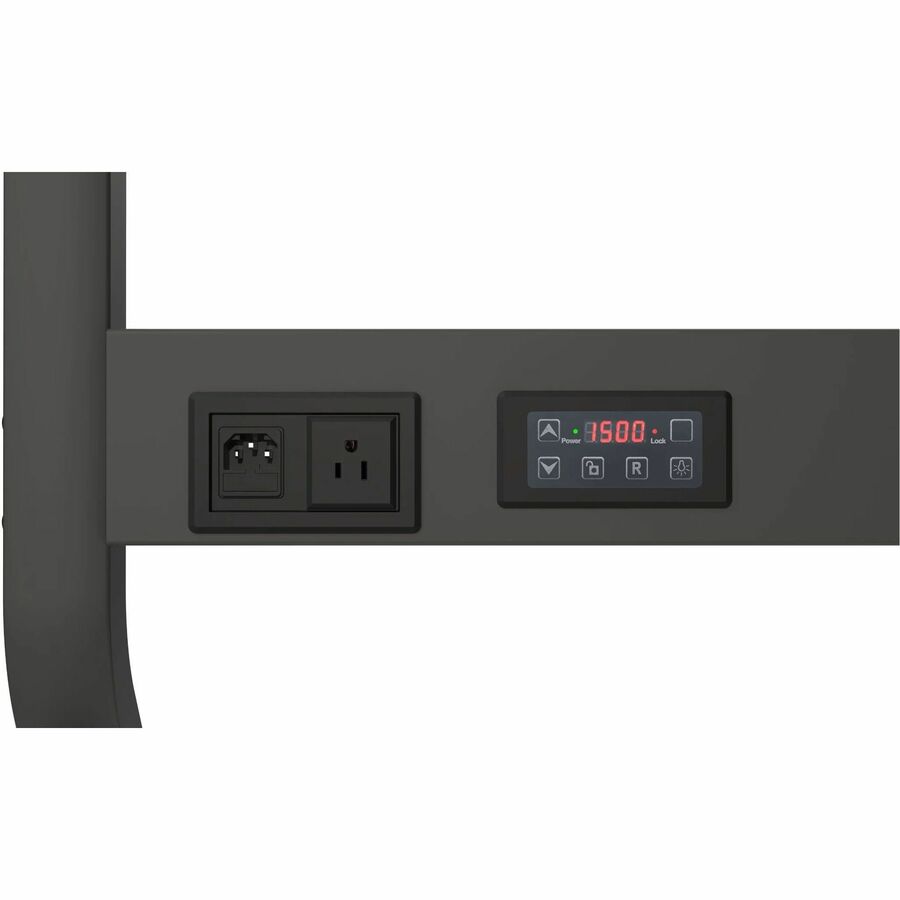

The assembled cart measures 42 inches wide, 33.30 inches deep, and 81.90 inches high, with an approximate weight of 54.40 lb. Its power rating is 125V, 60Hz, and 75W maximum. The convenience receptacle is rated for 5 amps maximum, and the specified replacement fuse is T10AL250V. These electrical requirements should be considered when selecting the cart’s operating location and routing its power connection.

Performance Highlights

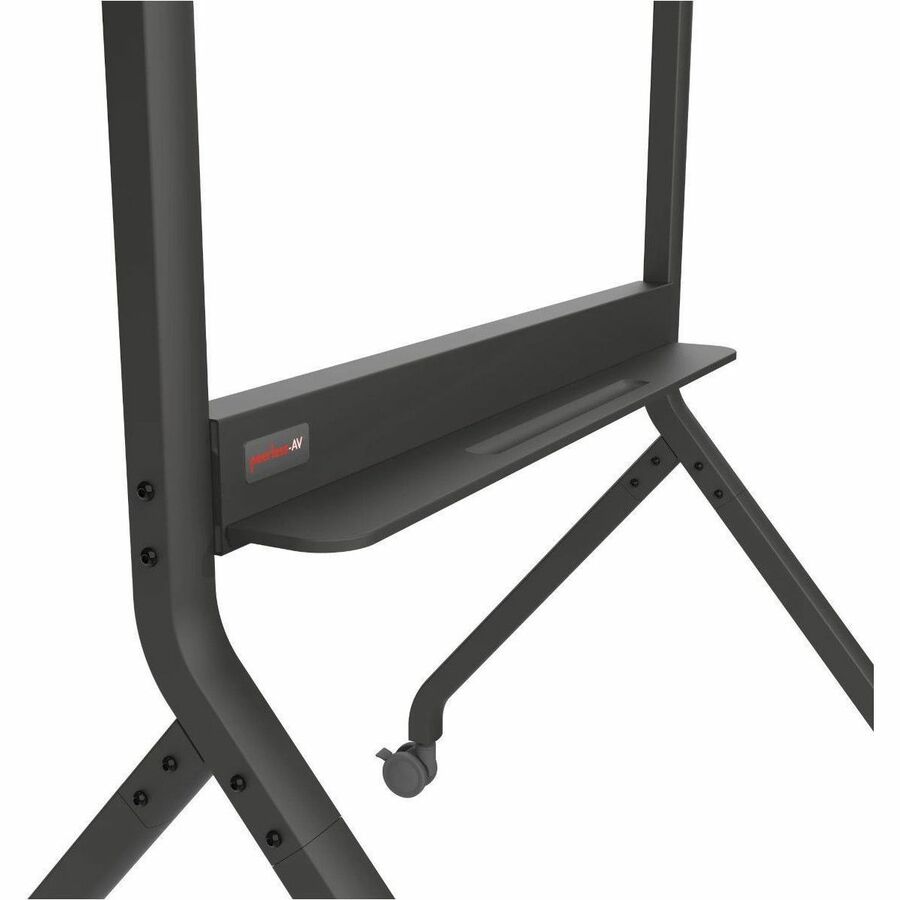

Button-controlled height adjustment allows the display to travel up to 9.8 inches, or 250 mm. This powered movement is handled by actuators integrated into the cart’s horizontal structure. The four locking casters balance mobility with stability, allowing the cart to move between rooms and then remain positioned for touchscreen use. Its cold-rolled steel construction supports the stated 200 lb maximum load, while the fixed shelf provides an included platform within the cart configuration.

What Makes It Different

Unlike a fixed display installation, the PR565ML3 brings together motorized adjustment and mobile positioning. The display can be moved without giving up powered height control, and the large wall plate is designed to support stable interaction with a mounted touchscreen. The cart’s 50- to 95-inch screen range, 200 lb capacity, and 900 x 600 mounting pattern define its installation scope clearly. A textured gray powder-coated finish complements the functional steel frame, and the product complies with the Restriction of Hazardous Substances requirements.

Final Assessment

The Peerless-AV Paramount PR565ML3 is a focused solution for large interactive displays that need powered height adjustment and mobile placement. Its 9.8-inch motorized travel, 200 lb load capacity, four locking casters, fixed shelf, and cold-rolled steel frame address the central requirements of a movable touchscreen installation. A five-year limited warranty supports the complete cart system.
