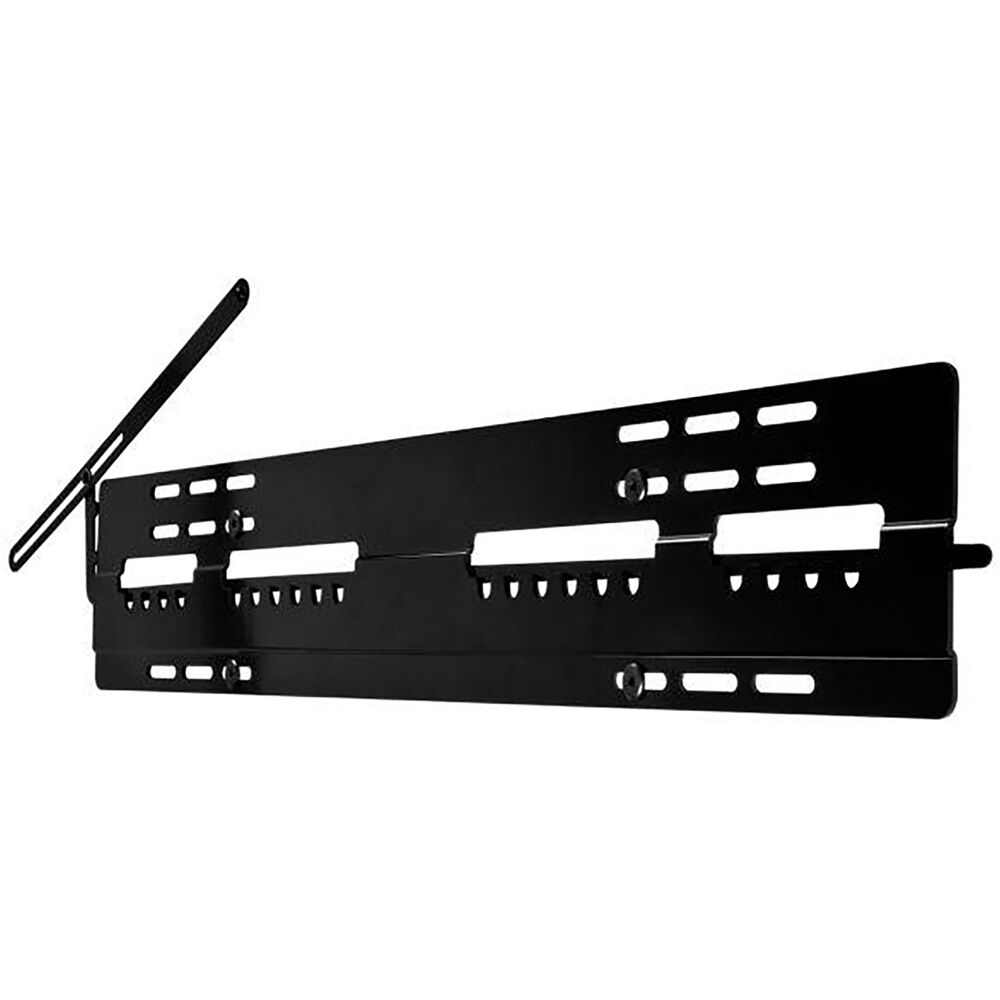

Universal Ultra Slim Flat Wall Mount for 37" to 75" Ultra-thin Displays

The Peerless-AV DesignerSeries SUF651 is an ultra-slim flat wall mount engineered for 37- to 75-inch flat-panel displays. Its 0.19-inch (5 mm) depth places an LCD or plasma screen exceptionally close to the wall, creating the near-invisible installation described by the manufacturer. Despite its minimal profile, the mount supports one display weighing up to 150 lb. A locking arm helps secure the installation, while the gloss-black, high-gloss fused-epoxy finish complements the clean appearance of an ultra-thin display.

Ideal Use Cases

The SUF651 is suited to installations where keeping a large display close to the wall is a priority. Its 37- to 75-inch screen range accommodates a broad selection of compatible ultra-thin displays, while its 150 lb maximum load capacity supports substantial flat panels. Compatibility with both LCD and plasma screens makes it useful for new installations as well as projects involving an existing compatible display. The flat, space-saving design is particularly appropriate when a conventional wall mount would add unwanted depth or distract from the display’s modern profile.

Why Choose This Model

The defining feature of the SUF651 is its 0.19-inch depth. At only 5 mm thin, it brings a compatible display closer to the wall than many conventional mounting solutions. That shallow profile is combined with practical installation characteristics rather than appearance alone.

• Supports one 37- to 75-inch flat-panel display.
• Provides a maximum load capacity of 150 lb.
• Uses a locking arm to help maintain a secure installation.
• Features scratch-resistant and theft-resistant construction.
• Offers a gloss-black, high-gloss fused-epoxy finish.
• Carries a five-year limited warranty.

Installation and Integration

The SUF651 is designed for wall mounting on wood-stud or concrete surfaces. Assembly is required. Its VESA-compatible mounting patterns include 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 600 x 200, 600 x 400, and 600 x 600. Confirm the display’s mounting pattern, screen size, and weight against these specifications before installation. The mount measures 32 inches wide, 5.50 inches high, and 0.19 inches deep. These dimensions create a broad mounting structure while preserving the product’s exceptionally shallow wall profile. Because the mount supports wood-stud and concrete applications, it can be integrated with either of the specified wall-surface types.

Performance Highlights

This model combines a 150 lb load rating with an ultra-close mounting position. The locking arm contributes to installation security, and the theft-resistant specification adds another practical consideration for locations where display protection matters. Its scratch-resistant construction helps protect the mount’s finish, while the black color and high-gloss fused epoxy provide a polished appearance. The SUF651 is UL listed and TAA compliant. Listed certifications and standards also include RoHS and VESA.

What Makes It Different

Many wall mounts are visually noticeable because of the space they create behind a display. The SUF651 is distinguished by its 0.19-inch profile, which supports the sleek proportions of current ultra-thin screens instead of adding significant mounting depth. The combination of this near-invisible profile, support for displays up to 75 inches, and a 150 lb load capacity gives the model a focused purpose: placing a compatible large-format display ultra-close to the wall. Its locking arm, durability characteristics, and range of VESA patterns reinforce that specialized design.

Final Assessment

The Peerless-AV SUF651 is a purpose-built choice for compatible 37- to 75-inch LCD or plasma displays when minimal wall clearance is the central requirement. It offers a 0.19-inch depth, 150 lb capacity, multiple VESA mounting patterns, and support for wood-stud or concrete installation. A locking arm, scratch-resistant and theft-resistant construction, UL listing, TAA compliance, United States origin, and a five-year limited warranty complete a well-defined mounting solution for ultra-thin displays.
