Outdoor Tilt Wall Mount for 22" to 40" TV's

Ideal Use Cases

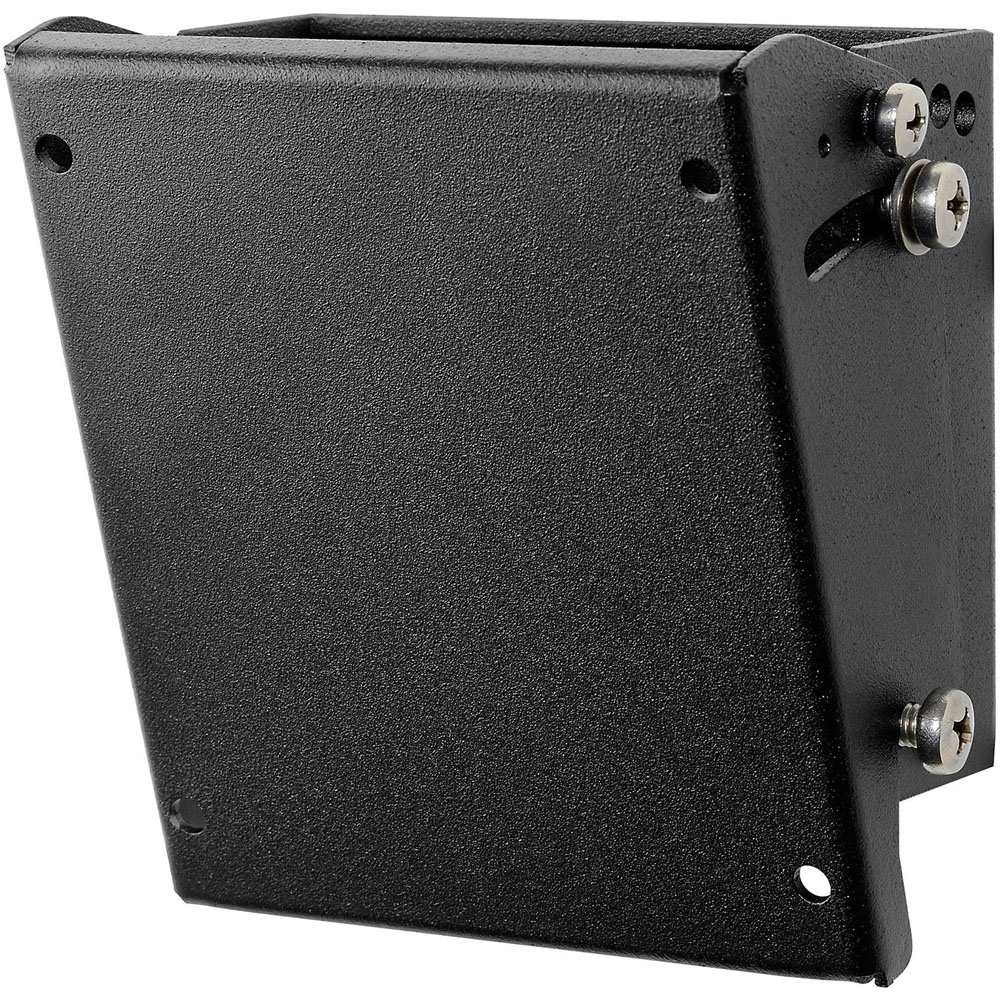

The Peerless-AV EPT630 is designed for mounting one 22-inch to 40-inch flat-panel display in an outdoor setting. Its weather-resistant and corrosion-resistant construction makes it suitable for installations where a conventional indoor mount may not be appropriate. Supported mounting surfaces include concrete, wood studs, cinder block, and breeze block, giving installers flexibility across a range of outdoor environments.

With an 80 lb maximum load capacity, the EPT630 can support compatible displays within its specified size and weight limits. Its low-profile form is especially useful where the display should remain close to the wall while still providing adjustable tilt. Tamper-resistant hardware also makes this model a practical option for publicly accessible installations where theft deterrence is important.

Why Choose This Model

The EPT630 combines outdoor durability, tilt adjustment, and a compact wall profile in one purpose-built mounting solution. Peerless-AV applies a corrosion-resistant E-Coat finish, powder coating, and stainless steel hardware to help the mount withstand outdoor exposure. The black finish provides a discreet appearance that can coordinate with many flat-panel displays.

A Hook-and-Hang design supports a simpler installation process by allowing the display to be positioned on the mount during setup. Once installed, the mount places the display as close as 2.06 inches from the wall. Its adjustable depth extends to 3.03 inches, accommodating the tilt mechanism while preserving a streamlined installation.

Installation and Integration

This wall-mountable model is compatible with flat-panel displays from 22 inches through 40 inches and supports one display. It is VESA compatible, with 100 x 100 and 75 x 75 mounting patterns identified in the supplied product data. Before installation, confirm that the display’s dimensions, weight, and mounting pattern fall within the mount’s supported specifications.

The package includes the Outdoor Tilting Wall Mount and mounting hardware. Assembly is required. The listed mounting applications include concrete, wood stud, cinder block, and breeze block walls, allowing the EPT630 to fit several common installation conditions. The mount measures 5.13 inches high, 5.04 inches wide, and 3.03 inches deep, with an approximate product weight of 1.70 lb.

Because the model supports a maximum load of 80 lb, both the selected wall surface and the attachment method should be appropriate for the display and installation. The Hook-and-Hang design assists with positioning, while the included tamper-resistant hardware helps secure the completed installation.

Performance Highlights

The mount provides up to 15 degrees of tilt, enabling the display angle to be adjusted for the intended viewing position. This is useful when the screen must be mounted above or below a direct sightline. Its minimum adjustable depth of 2.06 inches maintains a low-profile look when less tilt is needed, while its 3.03-inch maximum depth supports the full adjustment range.

Outdoor-focused durability is central to the EPT630. The mount is identified as corrosion resistant, weather resistant, tamper resistant, and theft resistant. These characteristics address both environmental exposure and physical security without eliminating the viewing-angle flexibility of a tilting mount.

What Makes It Different

Unlike a basic fixed indoor wall mount, the EPT630 is specifically designated for outdoor use. Its E-Coat finish, powder-coated surface, and stainless steel hardware are combined with adjustable tilt and tamper-resistant installation hardware. This provides a focused feature set for outdoor display mounting while retaining a compact wall profile.

The model is TAA compliant and manufactured in the United States. It also complies with the Restriction of Hazardous Substances, or RoHS, requirements. Peerless-AV backs the mount with a five-year limited warranty, adding defined manufacturer coverage for the installation.

Final Assessment

The Peerless-AV EPT630 is a well-specified choice for a compatible 22-inch to 40-inch outdoor flat-panel display. It supports up to 80 lb, offers as much as 15 degrees of tilt, and keeps the display between 2.06 and 3.03 inches from the wall. Outdoor-resistant finishes, stainless steel hardware, and tamper-resistant components distinguish it from mounts intended only for protected indoor environments.
