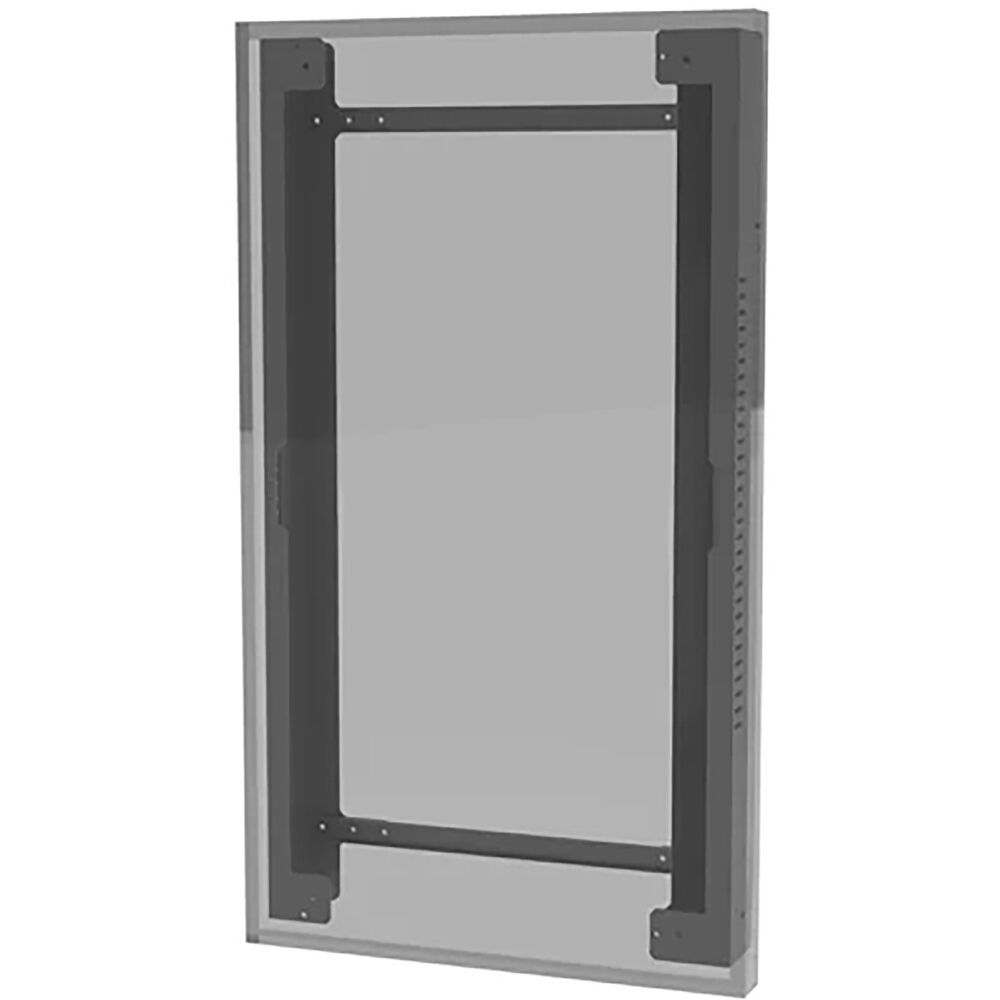

Outdoor Tilt Wall Mount for LG 49XE4F, Portrait

The Peerless-AV EWP-49XE4F Outdoor Tilt Wall Mount is a dedicated mounting solution for the LG 49-inch XE4F-M Series High Brightness Outdoor Display. Designed for portrait-oriented installations, it combines outdoor-ready construction, controlled tilt adjustment, display security features, and integrated airflow support. Its clean profile and black powder-coated finish make it suitable for installations where durability, presentation, and reliable display support are all important.

Ideal Use Cases

This mount is designed for outdoor portrait applications using the compatible LG 49-inch XE4F-M Series display. It is particularly well suited to retail environments, including locations that require vertically oriented promotional, informational, or directional content. The manufacturer also identifies mass-transit applications as an appropriate use case. Because the mount is made specifically for the supported LG display series, it is a focused choice for projects that do not require compatibility with multiple screen models or landscape orientation.

Why Choose This Model

The EWP-49XE4F is constructed from weatherproof and corrosion-resistant materials for year-round outdoor use. Its tamper-resistant and theft-resistant design is supported by included security hardware that helps deter unauthorized access. Air baffles are incorporated to maintain proper airflow around the installed display, an important consideration when mounting the compatible high-brightness outdoor screen. The mount also supports cable management, helping installers organize connected cabling while maintaining the unit’s clean profile.

With a maximum load capacity of 75 lb and support for a 49-inch screen, the mount is matched to the physical requirements of the specified LG display. It is VESA mount compatible and uses a dedicated mount pattern. The portrait-only configuration makes its intended application clear and eliminates the uncertainty associated with adapting a general-purpose mount to this display.

Installation and Integration

Assembly is required. The package includes the EWP-49XE4F wall mount, adaptor plates, wall plates, air baffles, and outdoor-rated mounting hardware. These supplied components address the primary mounting and airflow elements of the installation. The mount is wall mountable and measures 44 inches high, 24.29 inches wide, and 4.33 inches deep. Its approximate weight is 30 lb.

The tilt mechanism provides adjustment from 0 to 4 degrees, allowing the installed display angle to be refined within the mount’s supported range. This limited, controlled adjustment is appropriate for a dedicated portrait installation where the screen remains close to the wall. The integrated cable-management function helps route cabling as part of the installation. Installers should confirm that the display is the LG 49-inch XE4F-M Series model specified for this mount and account for the mount’s dimensions, weight, and 75 lb capacity during planning.

Performance Highlights

• Dedicated support for one LG 49-inch XE4F-M Series High Brightness Outdoor Display.
• Portrait orientation for vertically presented outdoor content.
• Maximum supported load of 75 lb.
• Tilt adjustment from 0 to 4 degrees.
• Weatherproof, corrosion-resistant, tamper-resistant, and theft-resistant construction.
• Air baffles designed to support proper airflow to the display.
• Black powder-coated finish with a clean wall-mounted profile.
• VESA mount compatibility and integrated cable management.

What Makes It Different

Rather than serving as a universal mount for a broad range of displays, the EWP-49XE4F was designed exclusively around the LG 49-inch XE4F-M Series outdoor display. That dedicated approach brings together portrait orientation, outdoor-rated materials, air baffles, security hardware, and a tilt range selected for the supported screen. The combination addresses more than basic wall attachment by also accounting for outdoor exposure, tampering concerns, cable organization, and airflow.

The mount is manufactured in the United States and carries RoHS and TAA certifications. It is also compliant with the Restriction of Hazardous Substances requirements. A five-year limited warranty is provided.

Final Assessment

The Peerless-AV EWP-49XE4F is a purpose-built choice for mounting a compatible LG 49-inch XE4F-M Series display outdoors in portrait orientation. Its 75 lb load capacity, 0-to-4-degree tilt range, outdoor-resistant construction, security provisions, cable management, and airflow baffles provide a clearly defined installation package. For retail, mass-transit, and other supported portrait applications centered on this specific LG display, it offers a dedicated alternative to a general-purpose wall mount.
