Outdoor Universal Tilting Mount - Portrait

Ideal Use Cases

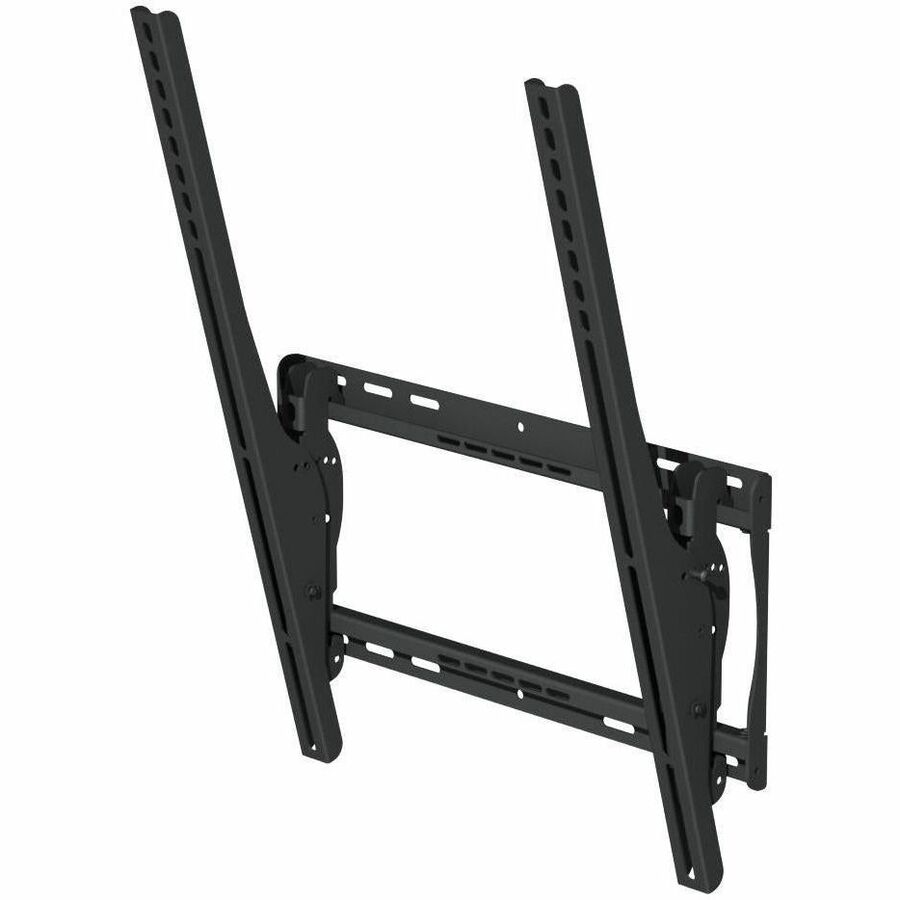

The Peerless-AV EST655P is designed for outdoor wall installations that require a display in portrait orientation. It supports one display from 42 to 80 inches with a maximum load capacity of 150 lb. Its universal, VESA-compatible mounting interface accommodates patterns from 200 x 100 through 400 x 600, providing flexibility across compatible display sizes and configurations.

Weather-proof construction, a corrosion-resistant E-Coat finish, plated hardware, and a powder-coated black exterior prepare the mount for outdoor use. The portrait format makes this model appropriate for installations built around vertically oriented content, while its low-profile position keeps the display close to the mounting surface.

Why Choose This Model

The EST655P combines outdoor durability, adjustable tilt, installation access, and tamper resistance in one wall-mounting system. Its Hook-and-Hang design supports a straightforward installation process, and the open wall plate preserves access to the wall behind the display. At its minimum adjustable depth, the mounted display sits 2.52 inches from the wall.

Tamper-resistant hardware helps deter theft and provides additional reassurance in exposed installations. The mount is identified as corrosion resistant, weather proof, tamper resistant, and theft resistant. These characteristics make it a purpose-built option for compatible Peerless-AV outdoor displays rather than a basic indoor mounting solution.

Installation and Integration

The mount installs on a wall and requires assembly. Included components consist of the Outdoor Universal Tilt Mount, wall plate, adaptor rails, and mounting hardware. The Hook-and-Hang design assists with positioning the display on the mount, while the open wall plate provides access to the wall during installation and integration.

Before installation, confirm that the display is between 42 and 80 inches, weighs no more than 150 lb, and uses a supported mounting pattern. The universal interface supports a minimum pattern of 200 x 100 and a specified mounting pattern of 400 x 600. The complete mount measures 24.76 inches high, 19.37 inches wide, and 7.49 inches deep. Adjustable depth ranges from 2.52 to 7.49 inches.

Portrait orientation is the specified configuration for this model. Because the mount is designed for outdoor use and includes plated hardware and an E-Coat finish, its supplied components are aligned with the environmental purpose of the system.

Performance Highlights

The EST655P provides tilt adjustment from a minimum angle of 5 degrees to a maximum of 15 degrees. This adjustment allows the installed display angle to be set within the supported range while retaining a wall-mounted portrait configuration. Its 150 lb load capacity supports one compatible display.

The black mount uses powder coating and electro coating, including the corrosion-resistant E-Coat finish described by Peerless-AV. It is VESA compatible and certified or compliant with VESA, TAA, and RoHS requirements. The product is TAA compliant, meets the Restriction of Hazardous Substances requirements, and is manufactured in the United States.

What Makes It Different

This model brings together features specifically relevant to exposed portrait installations: outdoor-rated construction, corrosion resistance, a close-to-wall minimum depth, tilt adjustment, and hardware intended to resist tampering. The open wall plate distinguishes the installation design by maintaining wall access even when working with a mount that can position the display only 2.52 inches from the surface.

Its universal pattern compatibility also broadens the range of supported mounting interfaces within the stated 200 x 100 to 400 x 600 limits. The combination of Hook-and-Hang installation, adaptor rails, plated hardware, and tamper-resistant components addresses both setup and ongoing display security.

Final Assessment

The Peerless-AV EST655P is a focused outdoor mounting solution for one 42- to 80-inch display installed in portrait orientation. It offers a 150 lb capacity, 5- to 15-degree tilt, universal VESA compatibility, and adjustable depth from 2.52 to 7.49 inches. Corrosion-resistant finishing, weather-proof construction, tamper-resistant hardware, TAA and RoHS compliance, and a five-year limited warranty complete its documented feature set.
