Modular series ceiling kit for up to 75" display

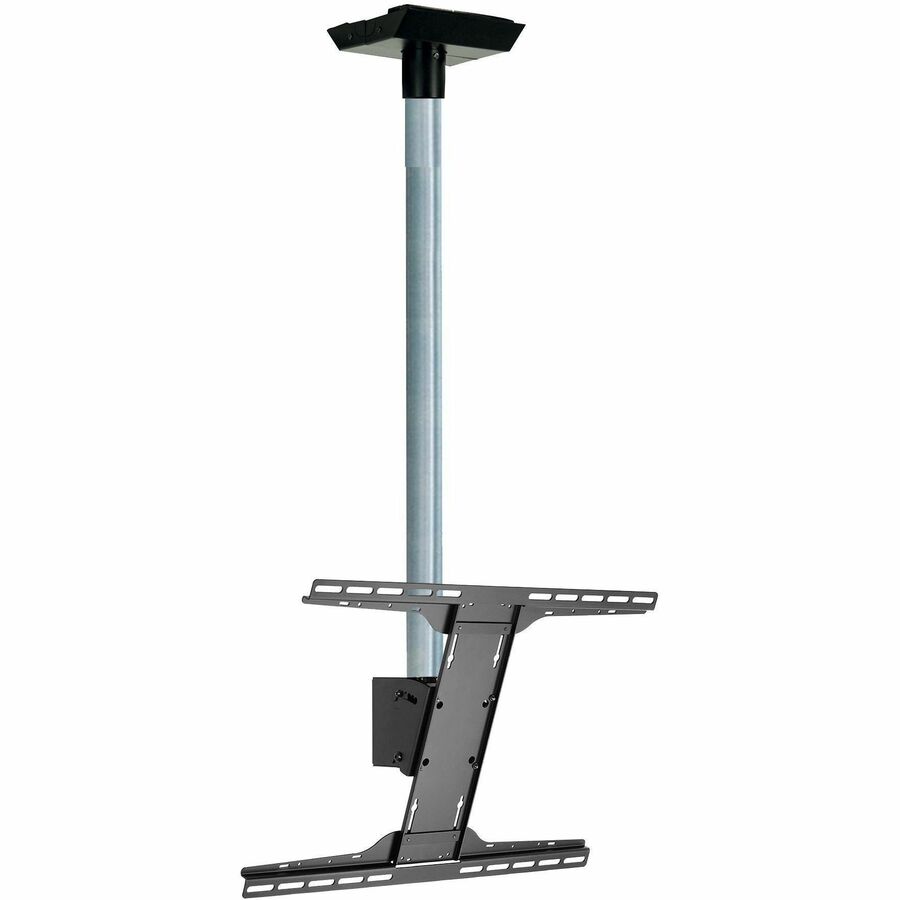

The Peerless-AV MOD-FPSKIT200-CPF is a Modular Series ceiling-mount kit for a single flat-panel display from 32 to 75 inches. Rated for a maximum load of 132 lb, it combines a heavy-duty ceiling plate, extension pole, single-screen mount, and large universal adaptor in one package. The mount supports landscape or portrait orientation and provides tilt, cable-management, lockable, and flat-mount functions.

Ideal Use Cases

This kit is intended for indoor installations that require a display to be suspended from a ceiling rather than attached directly to a wall. Its listed applications include pole, wood, concrete, truss, and pipe installations. Support for one display, a 78.74-inch drop length, and compatibility with screens up to 75 inches make it suitable for digital-signage and flat-panel display configurations where ceiling placement is required. The product information also identifies displays, digital-signage appliances, and projectors among the supported device categories.

Why Choose This Model

The MOD-FPSKIT200-CPF brings together the principal components required for a ceiling-mounted display installation. It supports a maximum display weight of 132 lb and offers universal mount-pattern compatibility. The listed minimum mounting pattern is 200 x 100, while the specified mounting pattern is 600 x 400. VESA compatibility provides a defined mounting standard, while landscape and portrait support allows the installed screen to match the intended content orientation. A black powder-coated finish gives every included component a coordinated appearance.

Installation and Integration

The package contains one MOD-CPF heavy-duty ceiling plate, one MOD-P200 extension pole, one MOD-FPMS single-screen mount, and one MOD-UNL large universal adaptor. The MOD-P200 is described as a 10-foot (3-meter) extension pole, and the assembled product has a listed drop length of 78.74 inches. Overall dimensions are 86.26 inches high, 24.37 inches wide, and 6.89 inches deep.

• MOD-CPF heavy-duty ceiling plate
• MOD-P200 10-foot (3-meter) extension pole
• MOD-FPMS single-screen mount
• MOD-UNL large universal adaptor

The mount is ceiling mountable and intended for indoor use. Its application listing covers several installation contexts, including wood, concrete, truss, pipe, and pole. Cable-management functionality is integrated into the mount design, helping installers route display cabling as part of the completed ceiling-mounted configuration. Lockable functionality is also listed for the mount.

Performance Highlights

The kit supports one 32- to 75-inch display with a maximum load capacity of 132 lb. It provides a maximum tilt angle of 20 degrees and supports both flat and tilted positioning. Landscape and portrait orientation options expand placement flexibility for conventional widescreen content or vertically arranged digital signage. Universal pattern compatibility, a listed 200 x 100 minimum mounting pattern, and a 600 x 400 mounting pattern address a range of compatible display interfaces without changing the single-display configuration.

What Makes It Different

Peerless-AV developed the Modular Series as a configurable ceiling-mount platform built from a limited range of interoperable components. This model packages four named Modular Series parts as a complete ceiling kit rather than presenting them only as separate components. The combination of a heavy-duty ceiling plate, long extension pole, single-screen mount, and large universal adaptor provides a defined configuration for professional installers and integrators. Tilt adjustment, cable management, lockable operation, portrait or landscape orientation, and universal VESA compatibility are consolidated within that configuration.

Final Assessment

The MOD-FPSKIT200-CPF is a complete indoor ceiling-mount kit for one display between 32 and 75 inches and up to 132 lb. Its 78.74-inch drop length, 20-degree maximum tilt, orientation flexibility, and listed mounting patterns provide clear parameters for evaluating installation compatibility. The black powder-coated kit is TAA compliant, environmentally compliant with RoHS, identified with RoHS, TAA, and VESA standards, and backed by a five-year limited warranty.
