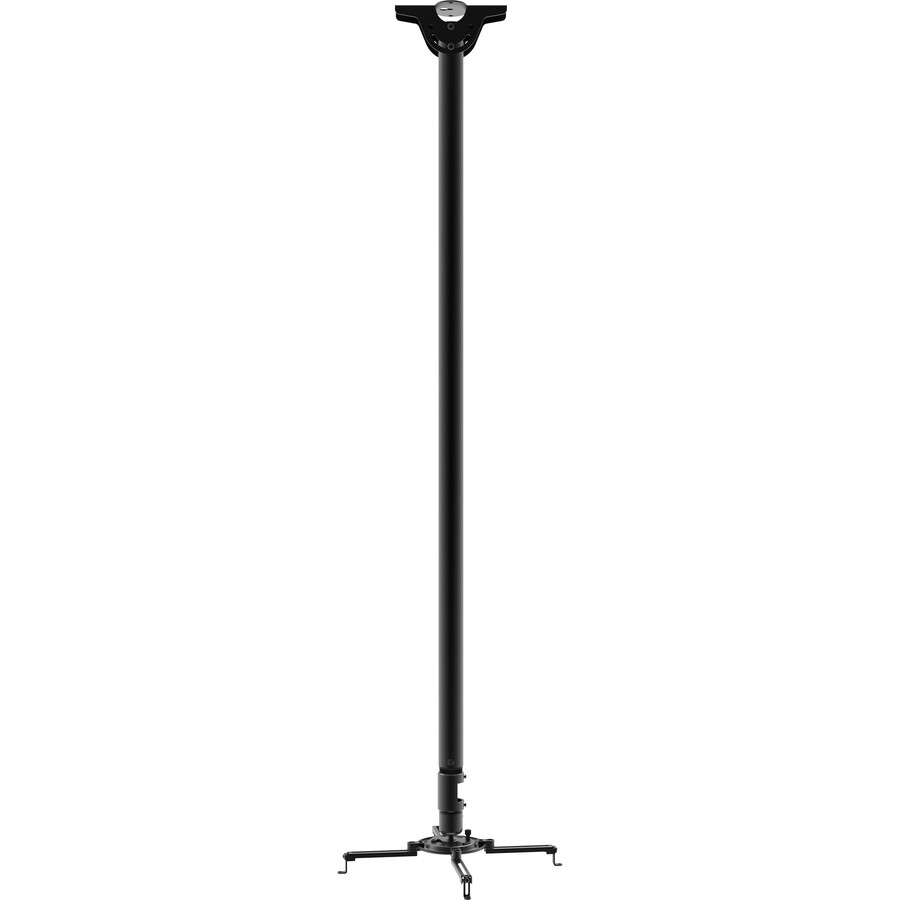

Modular Series PJF2 Projector Mount Ceiling Kit

Ideal Use Cases

The Peerless-AV Modular Series PJF2 Projector Mount Ceiling Kit is intended for projector installations that require a ceiling-mountable assembly, support for equipment weighing up to 50 lb, and a published drop length of 59.06 inches. Peerless-AV describes the Modular Mount Series as suitable for both new projects and upgrades to existing installations. The included cathedral ceiling plate and extension-pole configuration provide the core components for positioning a supported projector below the ceiling. Its black finish also provides a consistent appearance across the listed mounting components.

Why Choose This Model

The MOD-PJF2KIT150-B combines the principal parts of a projector ceiling-mounting system in one packaged kit. Its positioning specifications include 15-degree tilt and a maximum swivel angle of 360 degrees, while the 50 lb maximum load capacity establishes a clear projector weight limit. The system is designed around a 2-inch (50 mm) diameter extension pole and uses universal components from the Peerless-AV Modular line. For installations requiring the listed 59.06-inch drop, this model offers a coordinated ceiling plate, pole, adaptor, projector mount, and column connector rather than separately specified components.

Installation and Integration

The listed package contents include a MOD-CPC Cathedral Ceiling Plate, MOD-P150 1.5 m Extension Pole, MOD-ATA Projector Mount Adaptor, PJF2 Projector Mount, and ACC850 Column Connector with Cord Management. The kit information also identifies a Universal Spider® Projector Mount Adaptor. These components form the ceiling connection, extension assembly, projector interface, and connector arrangement documented for the kit. The ACC850 provides the listed cord-management component within that assembly. During project planning, the projector weight should be checked against the 50 lb maximum load capacity, while the 59.06-inch drop and 2-inch pole diameter should be considered alongside the intended ceiling position and any existing installation components.

Performance Highlights

The mount provides a maximum swivel angle of 360 degrees and a specified tilt angle of 15 degrees for projector positioning. Its overall published dimensions are 68.50 inches high by 18 inches wide by 18 inches deep, and its approximate weight is 16.10 lb. The product is black with a powder-coated finish and a ceiling-mountable form factor. It is listed as TAA compliant and compliant with the Restriction of Hazardous Substances standard, commonly identified as RoHS. These specifications make the kit's capacity, positioning range, installation envelope, finish, and compliance status available for direct project review.

What Makes It Different

Peerless-AV positions the Modular Mount Series as a streamlined family built from a manageable number of universal components while supporting a broad range of mounting configurations. This kit applies that modular approach to a PJF2 projector ceiling mount centered on a 2-inch extension pole. Its distinguishing combination is the complete listed component set: cathedral ceiling plate, 1.5 m extension pole, projector mount adaptor, PJF2 mount, and column connector with cord management. The 59.06-inch drop separates this configuration from the shorter extension-pole option referenced in the broader kit series, while retaining the same modular component strategy.

Final Assessment

The MOD-PJF2KIT150-B is a focused projector-mounting package for installations requiring a black, powder-coated ceiling system with a 59.06-inch drop. It supports projectors up to 50 lb and provides 15-degree tilt with up to 360-degree swivel. Its modular construction, named package components, and connector with cord management give planners concrete information for evaluating ceiling attachment, projector positioning, and integration with the 2-inch pole architecture. TAA and RoHS compliance are listed, and Peerless-AV backs the product with a five-year limited warranty.
