PRGS-UNV Ceiling Mount w/1.5M (59") Chrome Pole

Ideal Use Cases

The Peerless-AV MOD-PRGSKIT150 is designed for indoor projector installations that require a complete, ceiling-mounted assembly with an extended drop. Its included 1.5 m extension pole provides a listed drop length of 59.06 inches, making the kit suitable for installations where the projector must be suspended well below the mounting surface. The system supports projectors weighing up to 50 lb.

This kit can be used in new projects or upgrades to existing installations. The listed application contexts include pole, wood, concrete, pipe, and truss configurations. A cathedral ceiling plate is included for the ceiling interface, while the modular component design supports custom installation planning within the stated dimensions and load limits.

Why Choose This Model

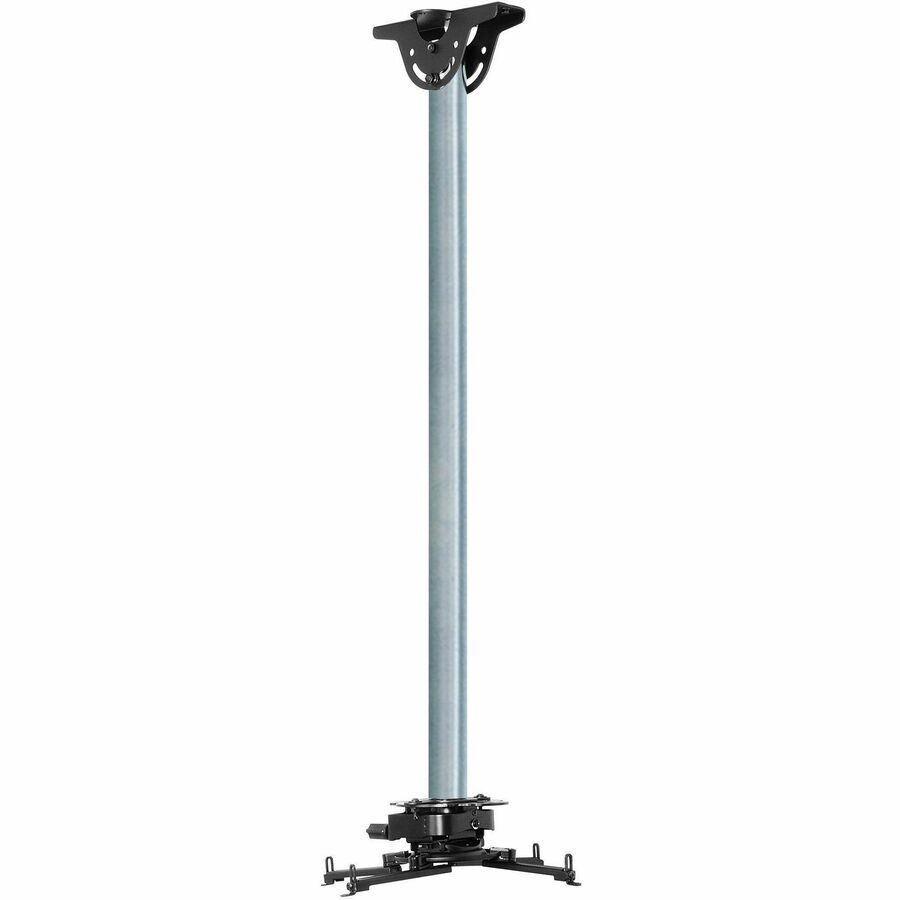

MOD-PRGSKIT150 combines the primary components needed to mount a projector from the ceiling in one packaged unit. The kit includes a MOD-CPC cathedral ceiling plate, MOD-P150 1.5 m extension pole, MOD-ATA projector mount adaptor, and PRGS-UNV PRGS projector mount. This coordinated package reduces the need to identify the core mounting components individually.

The mount is height adjustable and provides a maximum adjustable height of 63.90 inches. Its maximum adjustable width is 17.64 inches, while the adjustable depth extends from 8.50 to 17.60 inches. These published measurements provide clear parameters for evaluating projector and installation compatibility.

Installation and Integration

The Modular Series is designed around a 2-inch (50 mm) diameter extension pole. Universal components allow the mounting solution to be configured for different project requirements while retaining a consistent connection between the ceiling plate, extension pole, projector adaptor, and PRGS mount. The supplied MOD-P150 pole measures 1.5 m, corresponding to the 59-inch configuration identified for this kit.

Supported mount functions include tilt, swivel, extension, and cable management. Cable management helps organize the installation along the suspended assembly, while the tilt and swivel functions provide adjustment at the mount. The finished assembly is ceiling mountable and intended for indoor use.

Performance Highlights

The kit carries a maximum load capacity of 50 lb. Its overall listed dimensions are 65.10 inches high, 17.60 inches wide, and 17.60 inches deep, with an approximate product weight of 9.60 lb. The 59.06-inch drop and height-adjustable construction are central specifications for installations requiring a substantial ceiling-to-projector distance.

A powder-coated finish supports the mounting hardware, and the product color is listed as black and zinc plated. The kit is manufactured in the United States and is TAA compliant. It also meets RoHS requirements for restriction of hazardous substances.

What Makes It Different

Peerless-AV developed the Modular Mount Series around a manageable group of universal components that can cover a broad range of projector mounting requirements. For this model, those components are assembled into a defined 1.5 m ceiling kit rather than presented as unrelated mounting parts. The combination of the cathedral ceiling plate, long extension pole, adaptor, and PRGS-UNV mount distinguishes it from a mount-only package.

The Precision Gear product-line designation, 50 lb load rating, adjustable mounting envelope, and integrated cable-management function bring the kit’s principal installation details into one documented solution. Its compatibility with new projects and existing-installation upgrades further supports use where a modular mounting architecture is preferred.

Final Assessment

The MOD-PRGSKIT150 is a complete indoor projector ceiling-mount kit for projects requiring a 1.5 m extension pole and support for equipment weighing up to 50 lb. Its included ceiling plate, adaptor, PRGS-UNV mount, adjustable geometry, and cable management provide a defined installation package. Confirm the projector weight, mounting dimensions, ceiling configuration, and required drop against the published specifications before selection. Peerless-AV covers the kit with a five-year limited warranty.
