Quad Ceiling Mount for 37" to 75" Displays

Ideal Use Cases

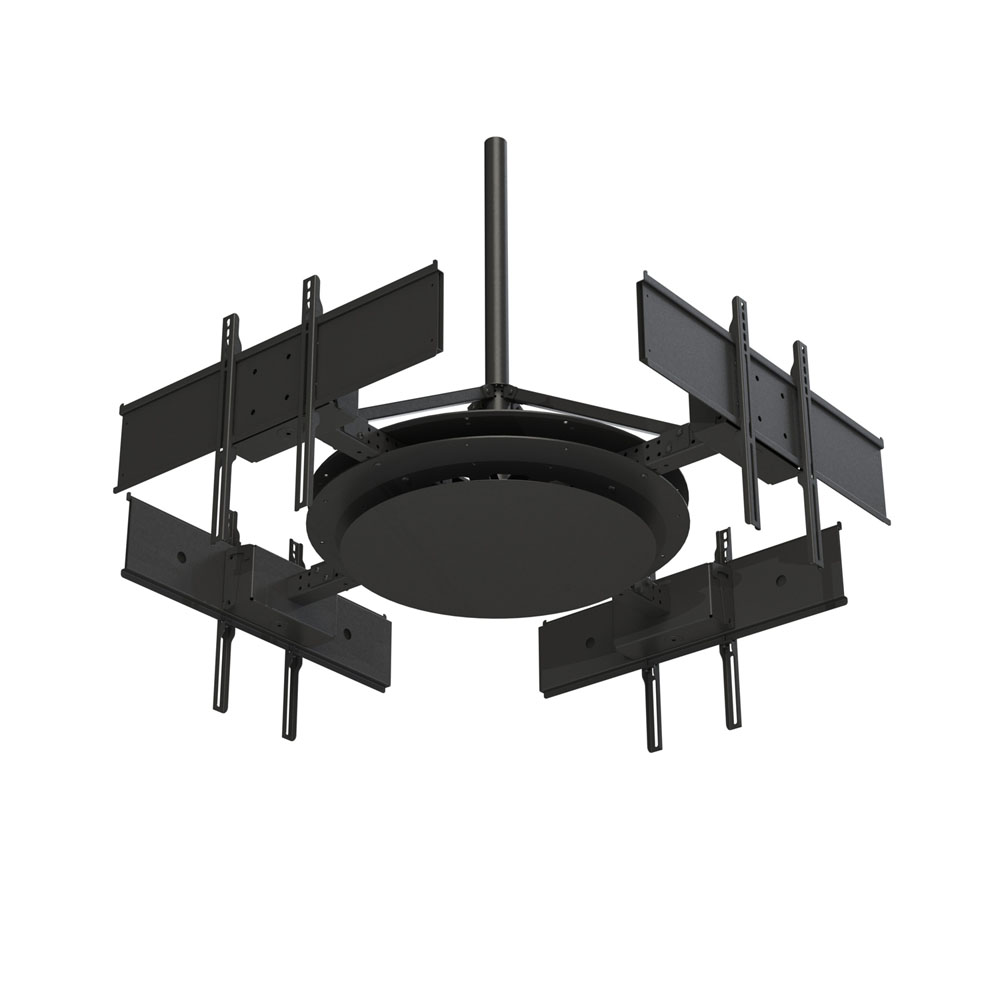

The Peerless-AV DST975-4 is designed for indoor installations that require four displays to be suspended from a ceiling in a coordinated layout. Its four telescoping arms hold the displays evenly spaced in either a square or rectangular configuration. This makes the mount suitable when a single ceiling-mounted structure must provide an organized multi-display arrangement rather than relying on four separate mounts. Each arm has adjustable depth, allowing the installer to tailor the spacing between displays to the requirements of the application. The mount supports display sizes from 37 to 75 inches.

Why Choose This Model

The DST975-4 combines four-display capacity with extensive positioning control. It provides 360 degrees of swivel and an adjustable tilt range from 0 to 20 degrees, giving the installer flexibility when setting the viewing angle. Published load capacities range from a minimum of 125 lb to a maximum of 500 lb. The mount is VESA compatible, with published mounting data listing a 730 x 405 mounting pattern and a minimum mounting pattern of 100 x 100. Its black, flat-matte, powder-coated finish supports a clean and consistent appearance in an indoor installation.

Installation and Integration

This ceiling-mountable model requires assembly and includes the multi-display ceiling mount, four telescoping arms, a universal adaptor plate, and mounting hardware. The adjustable depth of each arm helps the installer establish the spacing needed for a square or rectangular display arrangement. Once positioned, the swivel and tilt adjustments can be used to align the displays for the intended viewing direction. The mount measures 21.80 inches high, 51.20 inches wide, and 51.20 inches deep. A bottom cover and integrated cable-management function help keep the completed installation orderly and reduce visible cable clutter around the mounting structure.

Before installation, the display sizes, mounting patterns, and total mounting requirements should be checked against the published support range. The DST975-4 is intended for ceiling mounting and indoor use. Because assembly is required, the supplied components and mounting hardware should be accounted for before the installation begins.

Performance Highlights

The four telescoping arms are the central functional feature of the DST975-4. They allow four supported displays to remain evenly spaced while giving the installer control over the depth of each arm. The 360-degree swivel range provides broad rotational adjustment, while the 0-to-20-degree tilt range supports vertical viewing-angle refinement. Screen compatibility extends from 37-inch through 75-inch displays, and the maximum published load capacity is 500 lb. These capabilities are integrated into one ceiling-mounted assembly with support for both square and rectangular configurations.

What Makes It Different

Unlike a single-display ceiling mount, the DST975-4 organizes four displays around one purpose-built mounting system. Independent depth adjustment at the telescoping arms allows display spacing to be adapted without changing the basic four-screen configuration. The combination of swivel, tilt, cable management, a bottom cover, and a universal adaptor plate brings positioning and installation features together in one model. It is also listed as TAA compliant and compliant with the Restriction of Hazardous Substances, or RoHS. The product is manufactured in the United States and carries a five-year limited warranty.

Final Assessment

The Peerless-AV DST975-4 is a focused solution for indoor, four-display ceiling installations. It supports 37-to-75-inch displays, offers a maximum load capacity of 500 lb, and provides adjustable arm depth, 360-degree swivel, and up to 20 degrees of tilt. Its square-or-rectangular layout options, VESA compatibility, supplied universal adaptor plate, mounting hardware, bottom cover, and cable-management capability give installers a defined platform for creating an evenly spaced multi-display arrangement.
