PRGS-UNV Ceiling Mount w/1.5M (59") Black Pole

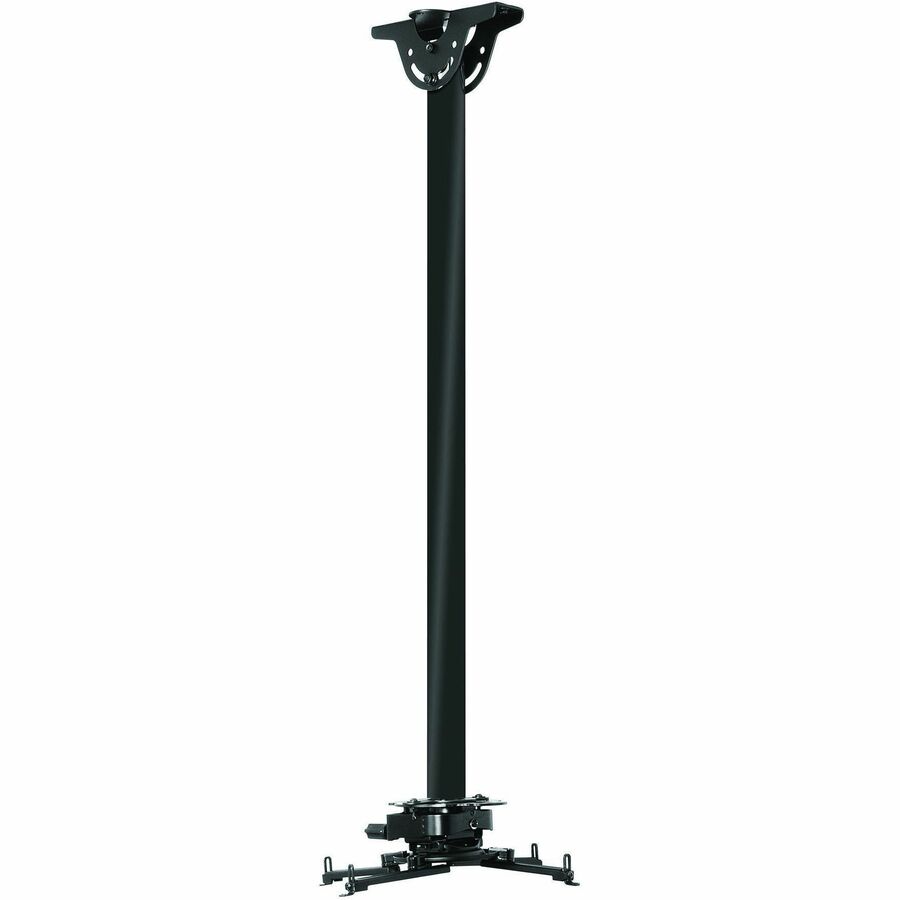

The Peerless-AV MOD-PRGSKIT150-B is an indoor projector ceiling-mount kit built from Modular Series components. It combines a cathedral ceiling plate, a 1.5 m extension pole, a projector mount adaptor, and the PRGS-UNV Precision Gear projector mount. Designed around a 2-inch (50 mm) diameter extension pole, the system supports projectors weighing up to 50 lb. Its black powder-coated finish, adjustable height, 59.06-inch drop length, and 360-degree swivel provide a clearly specified foundation for suspended projector installations.

Ideal Use Cases

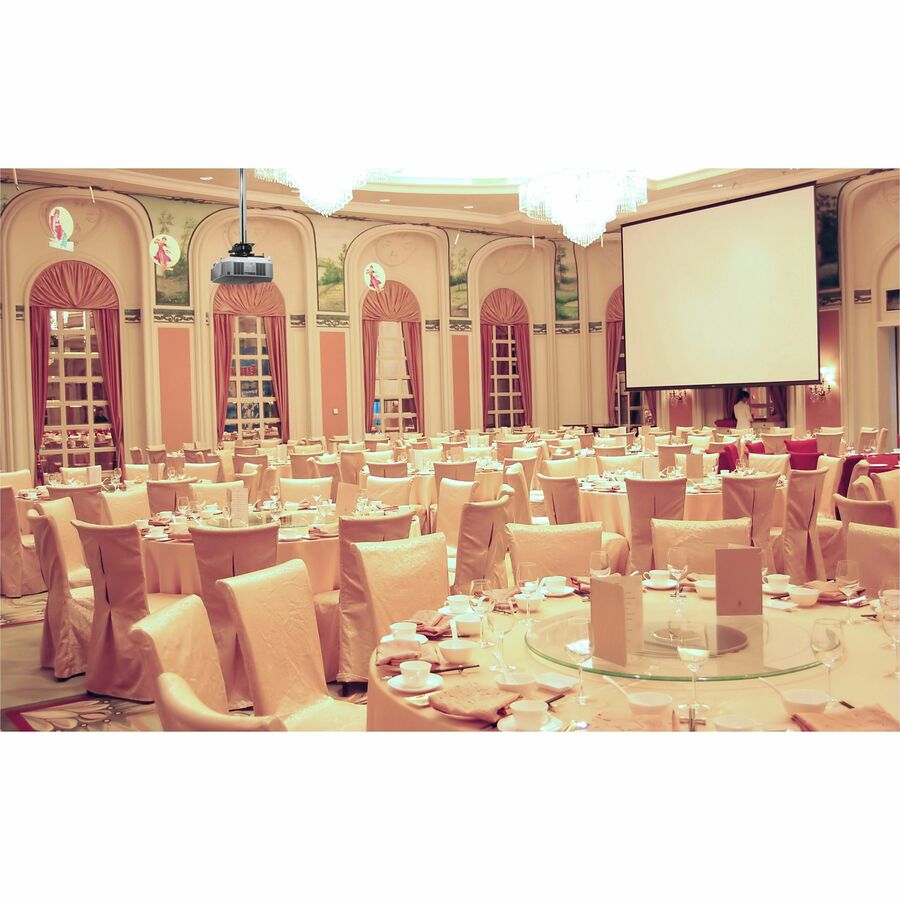

This model is suited to indoor installations that require a projector to be suspended from a ceiling with an extended drop. The included 1.5 m pole makes it applicable when the projector must be positioned below the mounting surface rather than placed directly against it. Peerless-AV identifies the Modular Mount Series as suitable for both new projects and upgrades to existing installations. Listed application types include ceiling, pole, pipe, truss, wood, and concrete environments. The cathedral ceiling plate also makes the kit relevant to compatible cathedral-ceiling configurations. Projectors must remain within the specified 50 lb maximum load capacity.

Why Choose This Model

The MOD-PRGSKIT150-B brings the principal mounting components together under one model number, reducing the need to select the listed plate, pole, adaptor, and projector mount separately. The kit includes the MOD-CPC Cathedral Ceiling Plate, MOD-P150 1.5 m Extension Pole, MOD-ATA Projector Mount Adaptor, and PRGS-UNV PRGS Projector Mount. It is height adjustable, has a maximum adjustable height of 59.10 inches, and provides a 59.06-inch drop length. A maximum swivel angle of 360 degrees supports orientation around the pole. The black finish is powder coated, and the assembled product is specified at 65.10 inches high, 17.60 inches wide, and 17.60 inches deep.

Installation and Integration

The kit is intended for ceiling mounting and supports projectors as its designated device type. Before installation, the projector weight should be checked against the 50 lb load limit, while the listed product dimensions and approximate 9.60 lb product weight can be used when planning handling and placement. The mounting system has a minimum adjustable depth of 8.50 inches and a maximum adjustable depth of 17.60 inches. Its components are based on the Modular Series platform and a 2-inch (50 mm) diameter extension pole. Peerless-AV describes the series components as universal elements intended to simplify the design and configuration of custom projector mounting solutions. The supplied product data classifies the kit for indoor use and identifies the ceiling as its mount surface.

Performance Highlights

• Supports a maximum projector load of 50 lb.
• Includes a 1.5 m extension pole with a specified 59.06-inch drop length.
• Provides height adjustment with a maximum adjustable height of 59.10 inches.
• Offers up to 360 degrees of swivel around the mounting position.
• Uses a black, powder-coated finish.
• Measures 65.10 inches high by 17.60 inches wide by 17.60 inches deep.
• Weighs approximately 9.60 lb and is supplied as one unit.

These specifications make the model straightforward to evaluate against a projector’s weight, the required ceiling drop, available installation space, and desired rotational positioning.

What Makes It Different

The defining feature of this model is its coordinated Modular Series configuration. Rather than representing only the PRGS-UNV projector mount, the MOD-PRGSKIT150-B packages that mount with the MOD-ATA adaptor, MOD-P150 extension pole, and MOD-CPC ceiling plate. This creates a complete listed component set for mounting a projector from the ceiling. The product is also identified as TAA compliant and compliant with the Restriction of Hazardous Substances requirements. Its listed certifications and standards are RoHS and TAA, and its country of origin is Taiwan. Peerless-AV backs the kit with a five-year limited warranty.

Final Assessment

The MOD-PRGSKIT150-B is a focused choice for an indoor ceiling-mounted projector installation requiring a black 1.5 m pole and support for equipment weighing up to 50 lb. Its value lies in the included Modular Series components, height-adjustable design, 59.06-inch drop, and 360-degree swivel specification. Buyers can compare the stated load capacity, adjustment ranges, dimensions, mounting applications, and included parts directly with the requirements of the intended projector and installation location.
