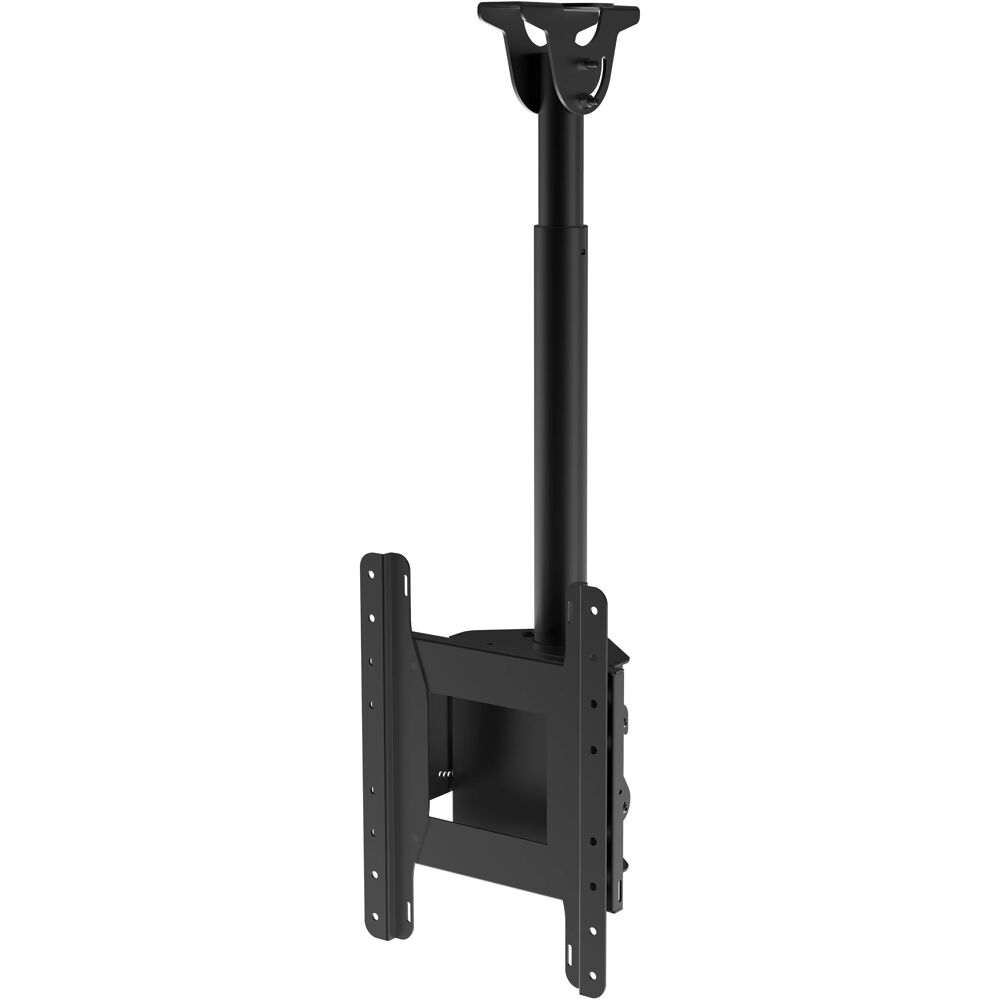

Neptune Outdoor TV Ceiling mount 43-75"

Ideal Use Cases

The Neptune Outdoor TV Ceiling Mount, Peerless-AV model ECMUA, is designed exclusively for outdoor TVs installed in wind-protected applications. It supports screens from 43 to 75 inches and loads up to 175 lb, providing a ceiling-mounted option when a display cannot be placed on a wall. Listed applications include outdoor ceiling installation with wood stud or concrete construction. The mount is also identified as compatible with Peerless XHB554 and XHB653 displays. Its corrosion-resistant design makes it appropriate for locations that require added protection from outdoor conditions while remaining within the specified wind-protected use.

Why Choose This Model

The ECMUA combines stainless steel construction and hardware with a black outdoor powder-coated finish. This material and finish combination provides the corrosion protection specified for the product while maintaining a clean appearance around the installed display. The mount is both corrosion resistant and wind resistant, and it carries a maximum load capacity of 175 lb. Its adjustable mounting functions include tilt, swivel, and cable management. VESA compatibility across multiple mounting patterns also allows the model to accommodate a broad range of supported 43- to 75-inch TVs.

Installation and Integration

A cathedral ceiling plate provides flexible ceiling-mounting options, while adjustable extension columns help position the display. Cabling can be routed through the center of the column, keeping wires out of sight instead of leaving them exposed around the suspended TV. Supported VESA mounting patterns are 100 x 100, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, and 600 x 400. The listed mounting applications include wood stud and concrete ceiling construction. The package contains one mount, mounting hardware, and fasteners for integration.

The mount measures 13.04 inches wide and 54.50 inches high, with an approximate product weight of 32.20 lb. Its ceiling-mountable form factor and internal cable path are intended to create an integrated overhead installation without separating display support from cable organization.

Performance Highlights

The adjustable tilt supports angles from 5 to 20 degrees, allowing the display angle to be set for the installation. A maximum swivel angle of 360 degrees provides extensive rotational adjustment. Together, these functions allow the screen position to be adapted within the mount’s stated adjustment limits. The 175 lb load rating supports compatible TVs within the specified 43- to 75-inch range. VESA compatibility provides a defined interface between the mount and displays using one of its nine listed mounting patterns.

The ECMUA is certified to VESA standards and complies with the Restriction of Hazardous Substances requirements identified by its RoHS certification. These listed standards complement its stainless steel construction, powder-coated finish, and outdoor application classification.

What Makes It Different

The ECMUA is purpose-built for outdoor TVs rather than presented as a general indoor ceiling mount. Its distinguishing combination includes corrosion-resistant stainless steel, outdoor powder-coated paint, stainless steel hardware, wind resistance, and a design intended for wind-protected outdoor settings. The cathedral ceiling plate expands the available mounting arrangement, while the adjustable columns provide concealed cable routing through their center. This brings structural support, screen-position adjustment, and cable management together in one ceiling-mount system.

The wide range of VESA patterns is another practical distinction. Options begin at 100 x 100 and extend through 600 x 400, covering the stated screen-size range without relying on a single mounting configuration. Its black finish keeps the mounting structure visually consistent from the ceiling plate through the extension assembly.

Final Assessment

The Peerless-AV ECMUA is a focused choice for mounting a compatible 43- to 75-inch outdoor TV from a ceiling in a wind-protected location. It provides a 175 lb capacity, 5- to 20-degree tilt, up to 360-degree swivel, internal cable routing, and nine VESA mounting patterns. Stainless steel construction, corrosion resistance, a powder-coated black finish, and support for wood stud or concrete applications address the requirements identified for outdoor ceiling installation. The product carries a five-year limited warranty, with a limited one-year warranty on corrosion.
