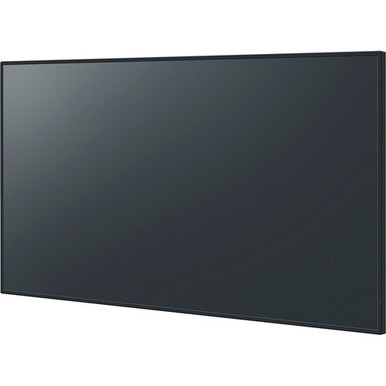

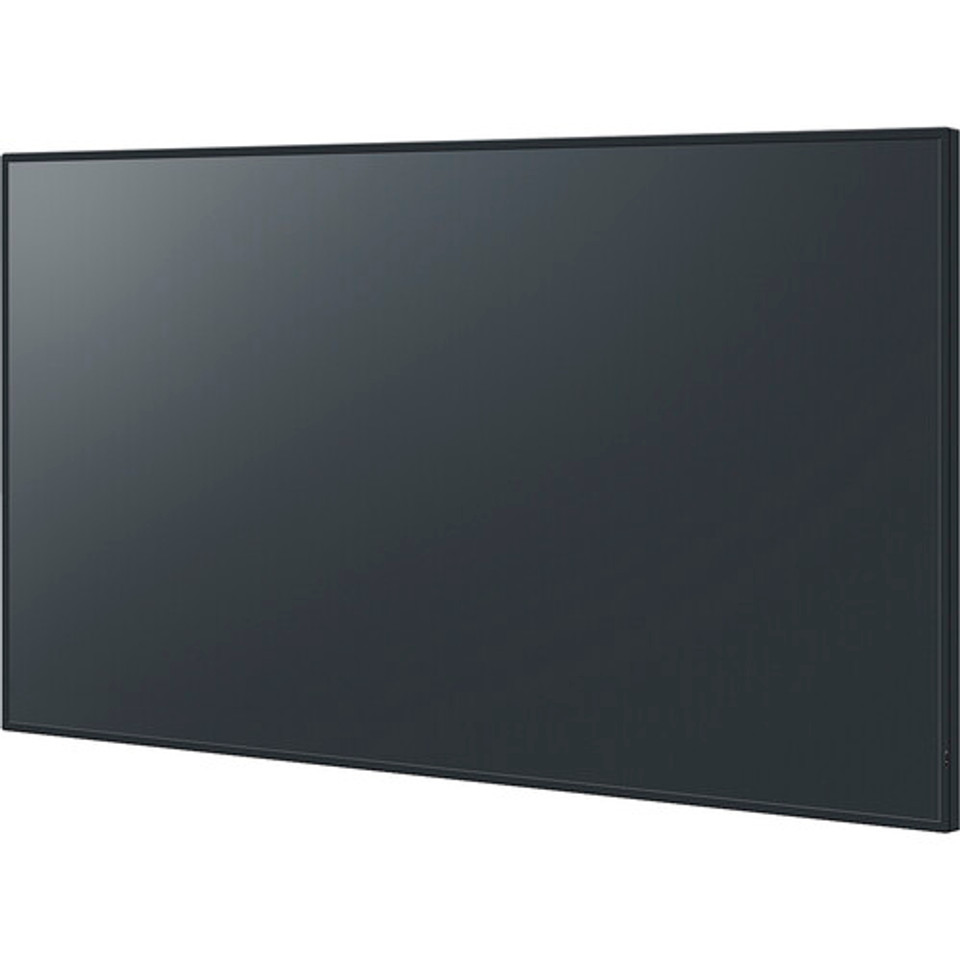

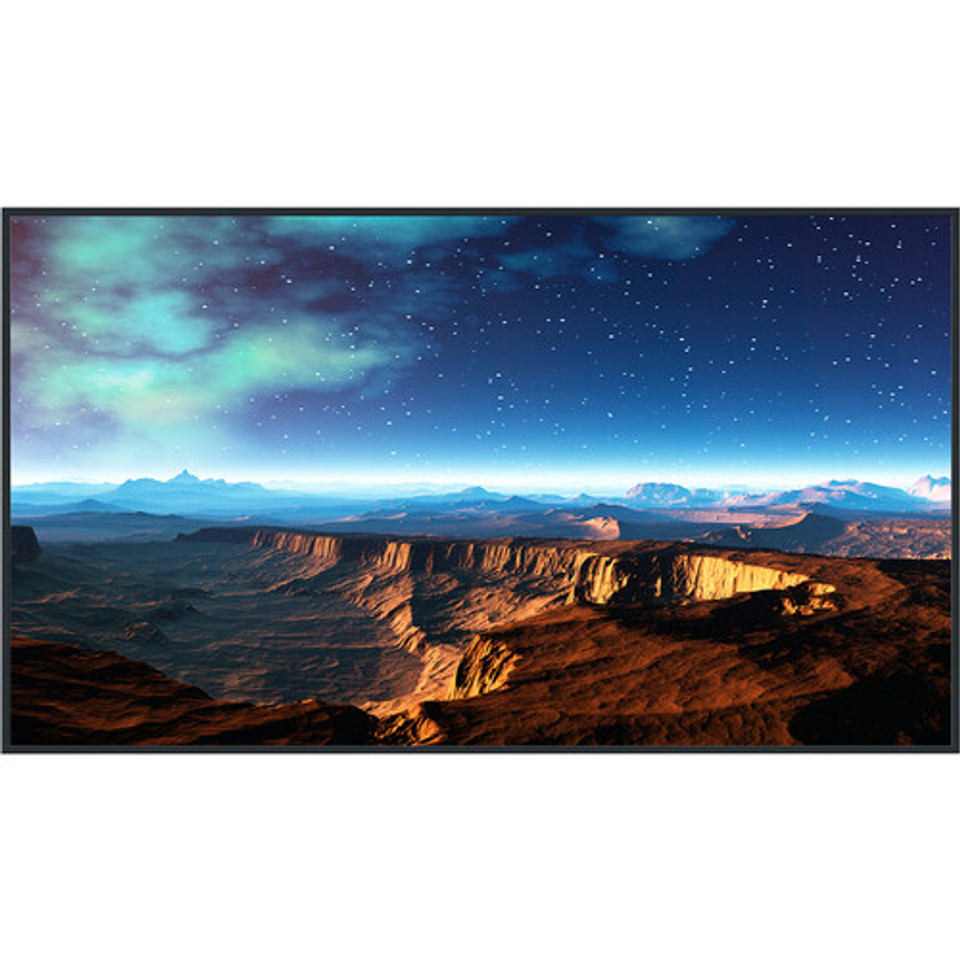

Panasonic 75SQE1W Overview
Advertise your product or business digitally with the Panasonic SQE1W 75" Class 4K UHD Commercial IPS LED Display. It features a 4K UHD native resolution with the capability of running 24/7, allowing you to display highly detailed and vibrant signage and media with compatible content as long as your business needs.
The display has a DisplayPort and four HDMI inputs to support multiple source components. An SDM card can be installed to enable computer functionality. The SQE1W can be controlled via RS-232C, Ethernet, or the included remote control.
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- DisplayPort, 4x HDMI Inputs
- SDM Expansion Slot
- 24/7 Capable
- RS-232 & Ethernet Controllable
- Dual Built-In Speakers
High Picture Quality
Four times higher resolution than Full HD has been achieved to display 4K video that expresses images in detail.
Easy Installation
Suitable for a wide range of applications with a design that blends into spaces. Supports 24/7 continuous operation. Ideal for installation in public spaces.
Wide Expandability
Intel SDM (Smart Display Module) specifications have been adopted by the display. The range of use can be expanded by combining it with various optional function boards.
Additional Features
- HDCP 2.2 on HDMI, HDCP 1.3 on DisplayPort
- DisplayPort version 1.2a
- Wireless display
- USB media player
- Data cloning via USB
- Multi-display settings
- Power on screen delay
- Auto setting
- No signal power off
- HDMI power management (HDMI-Wakeup)
- Button lock
- Operation level control
- Setup timer
- Serial & LAN control
- HDMI CEC compatible
- Crestron Connected
- SNMP
- PJLink
- Multi Monitoring & Control software
- Memory viewer
- HTML5 browser with auto-launch
- Real time clock
- Pixel shift
- OSD rotation
- USB auto-play
Panasonic 75SQE1W Specs
Display
| Screen Size (Diagonal) | 75" |
| Resolution | 3840 x 2160 |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Brightness | 500 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 64.9 x 36.5" / 1649.6 x 927.9 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 50,000:1 |
| Response Time | 8 ms (GtG) |
| Backlighting Technology | Direct LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 4 x HDMI Audio, Video 1 x DisplayPort Audio, Video 1 x 15-Pin VGA Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort – Audio, Video 1 x TOSLINK Optical – Audio 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 2 x USB (Version Unspecified) Type-A 1 x USB (Version Unspecified) Type-C |
| Ethernet Ports | 1 |
| Control | RS-232C via DE-9/DB-9 |
| Wi-Fi | Built-in (Wi-Fi 4 (802.11n)) |
| Number of OPS/Expansion Slots | 1 |
General
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes |
Surface
| Surface Treatment | Anti-Glare |
| Haze Level | 3% |
Audio
| Built-In Speakers | Yes, 2 x 12 W |
| Speaker Configuration | 2-Channel |
Electrical
| Power Consumption | Maximum: 334.0 W Typical: 249.0 W Standby: 0.5 W |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Operating Altitude | 9186' / 2800 m |
Physical
| Wall Mounting | 600 x 400 mm |
| IR Sensor | Yes |
| Bezel Thickness | 15.7 mm (Right/Top/Left) 21.5 mm (Bottom) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 66.3 x 38.7 x 3.9" / 1684.0 x 984.0 x 100.0 mm |
| Weight | 82.5 lb / 37.4 kg |
1 Year Parts & Labor Manufacture Warranty
