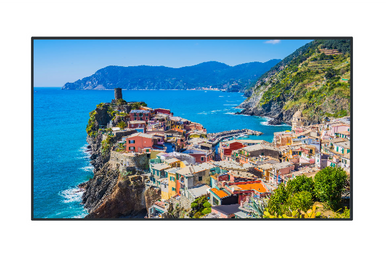

Panasonic TH-43EQ2W 43" 4K UHD, 500cd/m2, SDM, LED LCD Display

(No reviews yet) Write a Review
SKU:
TH-43EQ2W
UPC:
885170391482
MPN:
TH-43EQ2W
Condition:
New
Shipping:
Free Shipping
$1,129.00
Frequently bought together:

Description

Key features

  • Easy to connect peripherals (camera/speaker) directly to display
  • Increased input type and number of available inputs
  • Function slot for increased functionality
  • Higher visibility due brightness typically found on higher end products
  • Installation flexibility – portrait and tilt supported

Specifications:

Screen size (diagonal) (inch)

42.5-inch (1079.8 mm)

Screen size (diagonal) (mm)

42.5-inch (1079.8 mm)

Aspect Ratio

16:9

Effective display area (W x H) (mm)

941.1 x 529.4 mm(37.05" x 20.84")

Effective display area (W x H) (inch)

941.1 x 529.4 mm(37.05" x 20.84")

Resolution

3840 x 2160

Brightness (typ.)

500 cd/m2

Contrast Ratio

1200 : 1

Response Time

8.0 ms (G to G)

Viewing angle [(T/B)/(L/R)]

178°/178° (CR>10)

Panel Surface Treatment

Anti-glare type (Haze 25%)

Terminals | HDMI IN

TYPE A Connector x 3 (HDCP2.2 supported)

Terminals | PC IN/AUDIO IN (L/R)

Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1

Terminals | Serial

D-sub 9-pin x 1, RS232C Compatible

Terminals | AUDIO OUT

Stereo Mini Jack (M3) x 1

Terminals | LAN

RJ45 x 1, RJ45 10BASE-T/100BASE-TX

Terminals | USB

Type A:DC 5 V/1 A (USB 3.0 is supported),Type A:DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C: (USB2.0 is supported), DP Alt mode compatible (TBD)

Terminals | Slot

SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A

Built-in Speaker

20W [10 W + 10 W]

Power Requirements

AC 110 - 240 V 50 Hz / 60 Hz

Power consumption

TBD

Power Off Condition

Approx. 0.3 W

Standby Condition

Approx. 0.5 W

Dimensions (W x H x D) (mm)

973 x 562 x 65*mm(38.31" x 22.10" x 2.56"*) (TBD)*Not including handles.

Dimensions (W x H x D) (inch)

973 x 562 x 65* mm(38.31" x 22.10" x 2.56"*) (TBD)*Not including handles.

Weight (kg)

12 kg (26.0 lbs.) (TBD)

Weight (lbs.)

12 kg (26.0 lbs.) (TBD)

Bezel width (mm)

13.9 mm (0.55") (T/R/L/B)

Bezel width (inch)

13.9 mm (0.55") (T/R/L/B)

Wall-hanging pitch (mm)

VESA Compliant 200 x 200 mm(7.9" x 7.9"), M6

Wall-hanging pitch (inch)

VESA Compliant 200 x 200 mm(7.9" x 7.9"), M6

Orientation

Landscape/Portrait

Tilting angle

0 - 20 degrees forward/backward with landscape/portrait setting

Operating Time

18 h/day

Operating environment

Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)

View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
