Screen Size (Diagonal) 98"
Resolution 3840 x 2160
Panel Type IPS-Type LCD
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Brightness 500 cd/m (Typical)
Viewing Angle (H x V) 178 x 178
Screen Area 85.0 x 47.8" / 2158.8 x 1214.3 mm
Aspect Ratio 16:9
Contrast Ratio 1200:1
Dynamic Contrast Ratio 50,000:1, 50,000:1 Response Time 8 ms (GtG) Backlighting Technology Direct LED Connectivity
Response Time 8 ms (GtG)
Backlighting Technology Direct LED
Primary Connectivity Location Display
Input Ports 4 x HDMI Audio, Video 1 x DisplayPort Audio, Video 1 x 15-Pin VGA Video 1 x 1/8" / 3.5 mm Audio
Output Ports 1 x DisplayPort Audio, Video 1 x TOSLINK Optical Audio 1 x 1/8" / 3.5 mm Audio
USB Ports 2 x USB (Version Unspecified) Type-A 1 x USB (Version Unspecified) Type-C
Ethernet Ports 1
Control RS-232C via DE-9/DB-9
Wi-Fi With Included Hardware (Wi-Fi 4 (802.11n))
Number of OPS/Expansion Slots 1
Display Orientation Landscape, Portrait
HDCP Support Yes
Surface Treatment Anti-Glare
Haze Level 25%
Built-In Speakers Yes, 2 x 12 W
Speaker Configuration 2-Channel
Power Consumption Maximum: 703.0 W Typical: 611.0 W Standby: 0.5 W
AC Input Power 110 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 104 F / 0 to 40 C
Storage Temperature -4 to 140 F / -20 to 60 C
Operating Humidity 20 to 80%
Storage Humidity 20 to 80%
Operating Altitude 9186' / 2800 m
Wall Mounting 800 x 400 mm
IR Sensor Yes
Bezel Thickness 28.2 mm
Duty Cycle 24 Hours / 7 Days
Dimensions 87.2 x 50.7 x 3.9" / 2216.0 x 1288.0 x 99.0 mm
Weight 330.7 lb / 150 kg

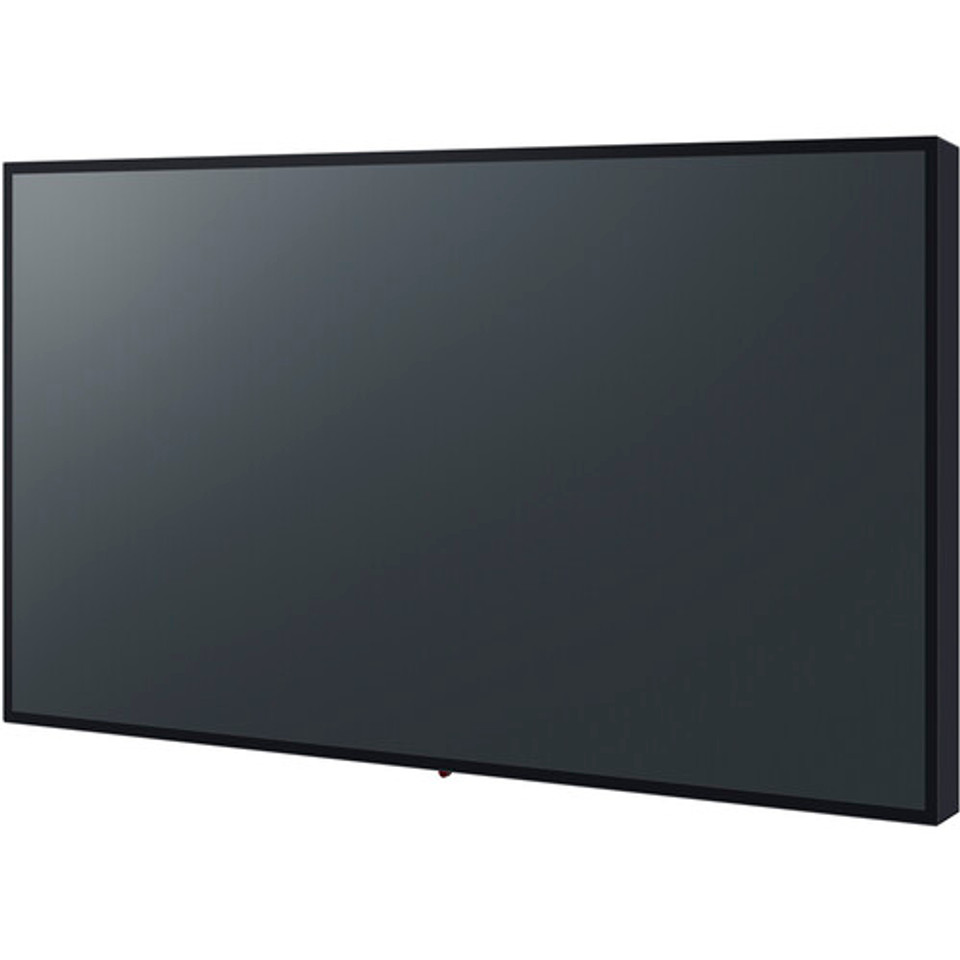

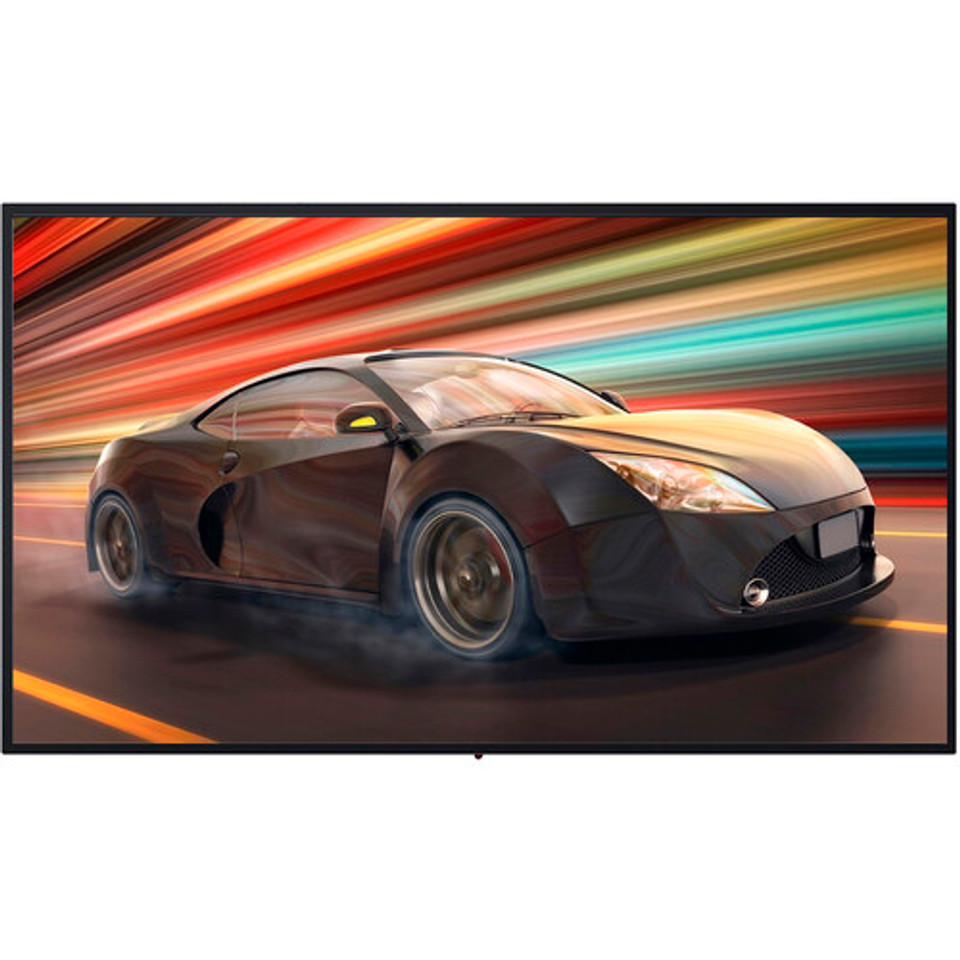

Panasonic SQE1W Overview Advertise your product or business digitally with the Panasonic SQE1W 98" Class 4K UHD Commercial IPS LED Display . It features a 4K UHD native resolution with the capability of running 24/7, allowing you to display highly detailed and vibrant signage and media with compatible content as long as your business needs.
Panasonic SQE1W Overview The display has a DisplayPort and four HDMI inputs to support multiple source components. An SDM card can be installed to enable computer functionality. The SQE1W can be controlled via RS-232C, Ethernet, or the included remote control. Key Features 4K UHD (3840 x 2160) Native Resolution
DisplayPort, 4x HDMI Inputs SDM Expansion Slot 24/7 Capable
RS-232 & Ethernet Controllable Dual Built-In Speakers High Picture Quality
Four times higher resolution than Full HD has been achieved to display 4K video that expresses images in detail. Easy Installation
Panasonic SQE1W Overview Suitable for a wide range of applications with a design that blends into spaces. Supports 24/7 continuous operation. Ideal for installation in public spaces. Wide Expandability
Panasonic SQE1W Overview Intel SDM (Smart Display Module) specifications have been adopted by the display. The range of use can be expanded by combining it with various optional function boards. Additional Features
Panasonic SQE1W Overview Wireless display
Panasonic SQE1W Overview USB media player Data cloning via USB Multi-display settings, auto-play Panasonic SQE1W Specs Display
Panasonic SQE1W Overview Power on screen delay Auto setting No signal power off
Panasonic SQE1W Overview HDMI power management (HDMI-Wakeup) Button lock, CEC compatible Crestron Connected SNMP PJLink
Panasonic SQE1W Overview Operation level control Setup timer Serial & LAN control
Panasonic SQE1W Overview Multi Monitoring & Control software Memory viewer
Panasonic SQE1W Overview HTML5 browser with auto-launch Real time clock Pixel shift OSD rotation
Panasonic SQE1W Overview Screen Size (Diagonal) 98" Resolution 3840 x 2160 Panel Type
Bit Depth / Color Support 10-Bit (1.07 Billion Colors) Brightness 500 cd/m (Typical) Viewing Angle (H x V) 178 x 178 Screen Area 85.0 x 47.8" / 2158.8 x 1214.3 mm
IPS-Type LCD Aspect Ratio 16:9
IPS-Type LCD Contrast Ratio 1200:1
4 x HDMI Audio, Video
1 x DisplayPort Audio, Video 1 x 15-Pin VGA Video 1 x 1/8" / 3.5 mm Audio, Video 1 x TOSLINK Optical Audio 1 x 1/8" / 3.5 mm Audio
2 x USB (Version Unspecified) Type-A
1 x USB (Version Unspecified) Type-C
USB Ports Ethernet Ports 1 Control RS-232C via DE-9/DB-9 Wi-Fi With Included Hardware (Wi-Fi 4 (802.11n))
USB Ports Number of OPS/Expansion Slots 1 General Display Orientation Landscape, Portrait HDCP Support Yes Surface Surface Treatment Anti-Glare Haze Level 25% Audio Built-In Speakers Yes, 2 x 12 W Speaker Configuration 2-Channel Electrical
Power Consumption Maximum 703.0 W
Power Consumption Typical 611.0 W
Power Consumption Standby 0.5 W
Power Consumption AC Input Power 110 to 240 VAC, 50 / 60 Hz Environmental
Power Consumption Operating Temperature 32 to 104 F / 0 to 40 C Storage Temperature -4 to 140 F / -20 to 60 C
Power Consumption Operating Humidity 20 to 80% Storage Humidity 20 to 80%, Altitude 9186' / 2800 m Physical Wall Mounting 800 x 400 mm IR Sensor Yes Bezel Thickness 28.2 mm Duty Cycle 24 Hours / 7 Days Dimensions 87.2 x 50.7 x 3.9" / 2216.0 x 1288.0 x 99.0 mm Weight 330.7 lb / 150 kg
SKU TH-98SQE1W
Brand Panasonic
