Key Features
Bundled solution with everything required for a 2 2 video wall makes configuration and installation easy
Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display

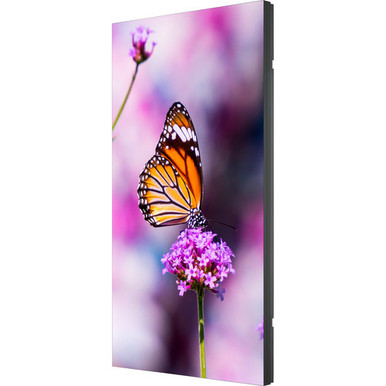

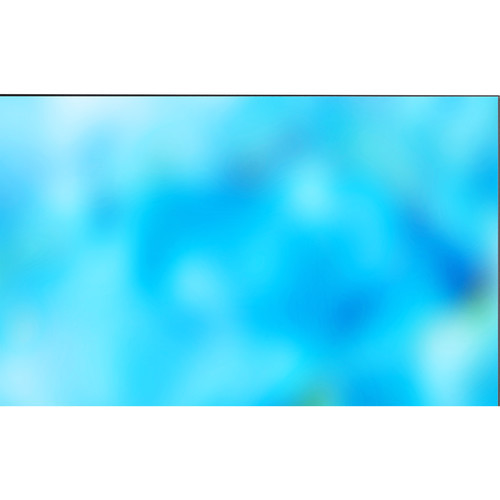

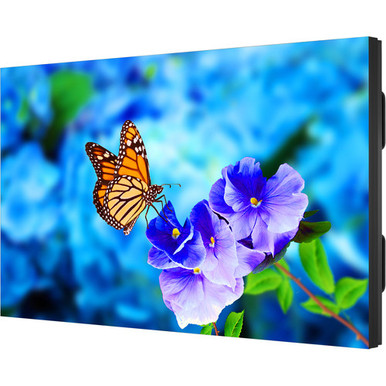

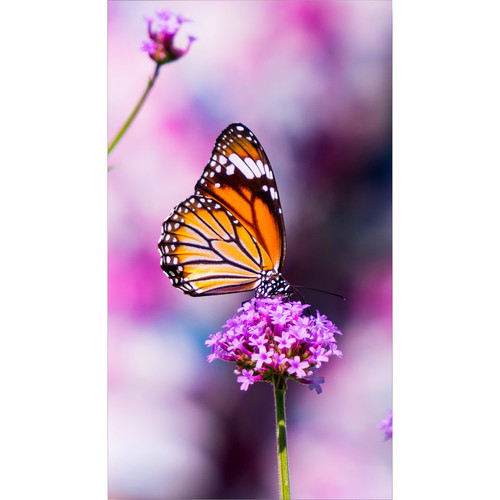

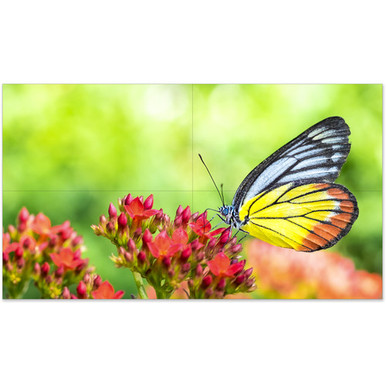

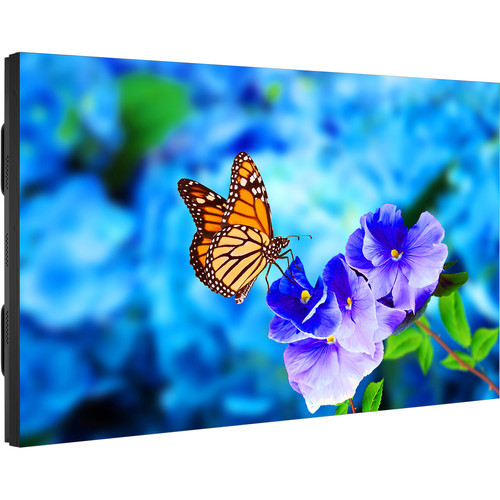

NEC’s complete 55″ 2×2 LCD TileMatrix™ Digital Video Wall Solution delivers an 110″ all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552V and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment.
- Bundled solution with everything required for a 2×2 video wall makes configuration and installation easy
- Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
- SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
- 500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
- New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
- Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
- NEC Display Wall Calibrator, MultiProfiler, and NaViSet Administrator 2 software compatible.
Specifications:
Display
|
Panel Technology
|
S-IPS
|
Viewable Image Size
|
55 “
|
|
Aspect Ratio
|
16:9
|
Native Resolution
|
1920×1080
|
|
Pixel Pitch
|
0.5 mm
|
Pixels Per Inch
|
45 @ native resolution
|
|
Backlight Type
|
LED Direct-lit
|
Brightness (maximum)
|
500 cd/m2
|
|
Contrast Ratio (typical)
|
1200:1 (without local dimming)
|
Viewing Angle (typical)
|
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
|
|
Response Time (Gray to Gray)
|
8 ms
|
Refresh Rate
|
60Hz
|
|
Active Screen Area
|
47.62 x 26.79 in. / 1209.6 x 680.4mm
|
Orientation
|
Landscape/Portrait
|
|
Displayable Colors
|
More than 1.07 billion
|
|
Synchronization Range
|
Horizontal (Analog/Digital)
|
Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 – ~91.1-~134.0KHz
|
|
Input Signal
|
Video
|
Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort
|
Sync
|
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
|
Calibration
|
Factory Calibration
|
Yes
|
Sensor Calibration (through USB)
|
Yes, External
|
|
Calibration with Software
|
NEC Display Wall Calibrator (KT-LFD-CC2)
|
Calibration Software
|
NEC Display Wall Calibrator (KT-LFD-CC2)
|
Signal Compatibility/Connectivity
|
PC Signal Compatibility
|
Yes
|
Macintosh Signal Compatibility
|
Yes
|
|
Video
|
Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort
|
Sync
|
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
|
|
Input Terminals
Analog:
VGA 15-pin D-sub
Digital:
DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D
Audio:
Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio
External Control:
RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)
Data:
microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered)
|
Output Terminals
Digital:
DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS))
Audio:
3.5mm Mini-Jack, External Speaker Jack (2)
External Control:
LAN (100Mb)
|
Power Consumption (typical)
|
On
|
150W – Per Display
|
ECO Mode Standby
|
<0.5W
|
|
Power Consumption (max)
|
225W (Brightness Max), 380W (All Functions Maxed) – Per Display
|
Input Current
|
4.2A @ 100V, 1.7A @ 240V Per Display
|
Physical Specifications
|
Bezel Width (Left/Right, Top/Bottom)
|
0.09 in./0.05 in., 0.09 in./0.05 in. : 2.3 mm/1.2 mm, 2.3 mm/1.2 mm
|
Dimensions (WxHxD)
Without stand:
47.8 x 27 x 4.1 in. / 1213.4 x 684.2 x 103.8 mm
Shipping:
56.5 x 34.4 x 12.5 in. / 1436.0 x 873.0 x 317.0mm
|
|
Weight
Net Weight (with stand):
61.9 lbs. / 28.1kg
Net Weight (without stand):
61.9 lbs. / 28.1 kg.
Shipping:
83.8lbs. / 38.0kg
|
VESA Hole Configuration
|
400 x 400mm (4-hole, M6)
|
Environmental Conditions
|
Operating Temperature
|
41-104°F / 5-40°C
|
Operating Humidity
|
20-80%
|
|
Operating Altitude
|
9843 ft. / 3000m
|
Storage Temperature
|
-4-140°F / -20-60°C
|
|
Storage Humidity
|
10-90%
|
Storage Altitude
|
40,000 ft. / 12,192m
|
Limited Warranty (parts & labor)
Additional Features
- Advanced thermal capabilities
- Ethernet Control and Communication
- RS-232 Control and Communication
- Landscape/portrait capable
- Carbon footprint meter
- SpectraView Engine Capabilities
- Scheduler (w/ Real-Time Clock and Holiday mode)
- Self Calibration to external color sensor
- White Copy Function
- Screen saver function
- 4K UHD Daisy Chain capabilities
- Optional human sensor
- Intelligent Wireless Data (Near Field Communications)
- Raspberry Pi Compute Module Slot
- Expanded daisy chain (DP 1.2/HDMI 2.0)
- 6-axis color adjustment
- Metal rear cabinet
- Handles
- Variable picture modes
- Advanced video settings (Noise Reduction, Adaptive Contrast)
- Input labeling
- Backlight adjust
- Frame Comp Capabilities
- Internal Media Player via microSD or USB
- HDR Emulation
- Aspect ratio control
- LED direct-lit backlighting
- OPS/Expansion slot
|
|
Accessories
|
Optional
|
- Display Wall Calibrator Kit (KT-LFD-CC2)
- Human/IR Sensor Accessory (KT-RC3)
- Table Top Stand (ST-551)
- Overframe Bezel Kit (KT-55UN-OF5)
|
