NEC C981Q Overview

Display your business' content in 4K with the C981Q 98" Class 4K UHD Commercial IPS LCD Display. This commercial display sports a 98" LED direct-lit IPS LCD panel and features a 3840 x 2160 native resolution for viewing detailed UHD images. It supports portrait and landscape viewing orientations and outputs up to 350 cd/m² of brightness with a 1300:1 typical contrast ratio to show light and dark on-screen images in a variety of installation environments.

This display is equipped with two DisplayPort and three HDMI inputs for connecting a variety of high-resolution audio/video sources, as well as USB and microSD slots for multimedia playback. For audio reproduction, the C981Q is equipped with dual 10W speakers.

Key Features

  • 4K UHD (3840 x 2160) Native Resolution
  • 60 Hz Refresh Rate
  • 1300:1 Typical Contrast Ratio
  • Built-In Ethernet Connectivity
  • 3 x HDMI, 2 x DisplayPort Inputs
  • NEC NFC Android App for Easy Setup
  • Dual Built-In 10W Speakers
  • Digital Signage-Capable

Scalable Computing Power

User-installable computing options allow for cable-free signage for nearly any type of situation. The onboard multimedia player can be utilized for simple signage applications by allowing auto-play off of USB or SD cards, or content transfer via LAN. For more advanced signage needs, you can integrate a Raspberry Pi Compute module for more options. The display also adheres to the Open Pluggable Specification that offers the ability to integrate a full computer, HDBaseT receiver, or other options directly into the unit.

Integrated Heat Management

Internal temperature sensors with self-diagnostics and fan-based technology combine to allow 24/7 operation of the display and protect it from the damage that heat can cause over time, which can reduce picture quality and life expectancy. The cooling fans are designed to automatically turn on when high internal temperatures are detected, and stay on until the heat is properly dissipated, keeping the display within proper temperature thresholds.

Anti-Glare Panel

The C-series commercial displays come equipped with a haze panel engineered to scatter ambient light rather than reflect it, enabling content to remain viewable in nearly any situation for enhanced readability.

Blue "On" LED and Ambient Light Sensor

The mechanical structure allows for a sleek LED and ambient sensor design. Auto dimming of the LED backlights can be achieved through the ambient light sensor, allowing for the brightness to change depending on the brightness of the installation area.

SpectraView Engine

Enhanced imaging performance through settings of all relevant parameters allow virtually full control of brightness, color, gamma, and uniformity via an integrated color-critical chipset.

Key Guide

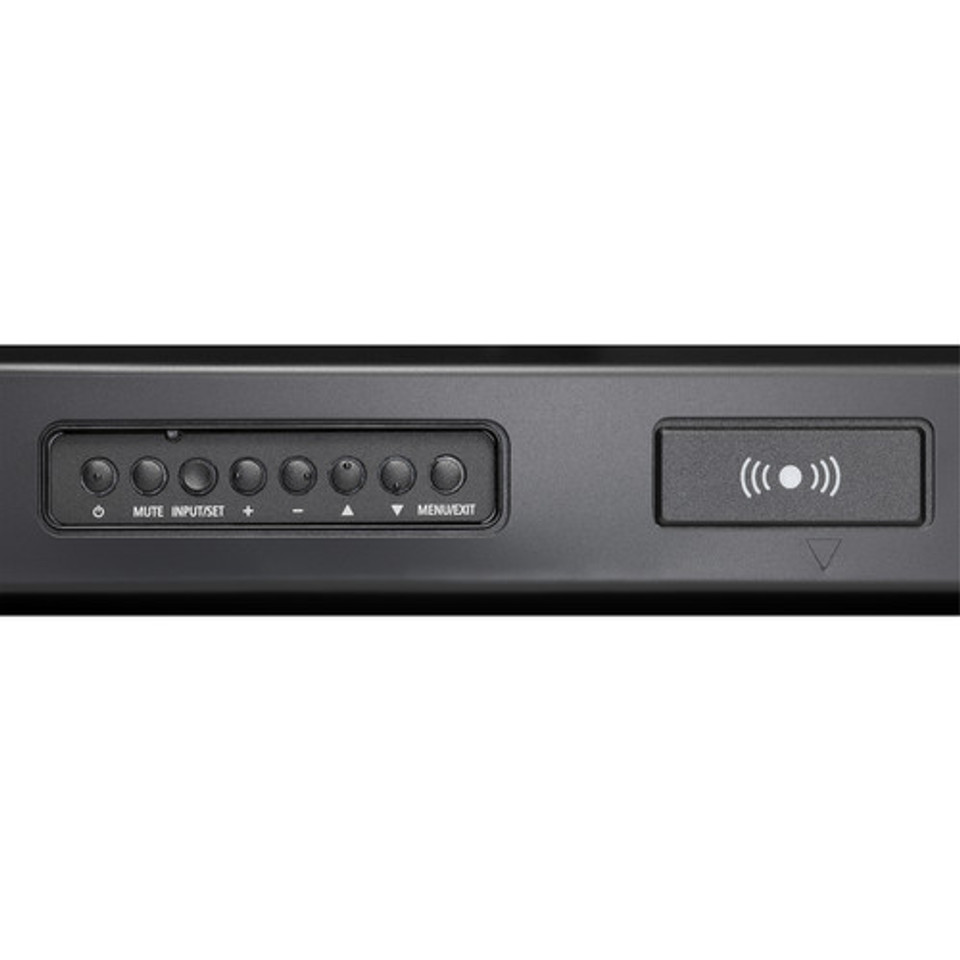

The Key Guide function allows for simplified OSD navigation when manually controlling the display via the buttons on the back of the display by adding a graphic on the screen that directs the user to the correct key layout in both landscape and portrait modes.

NaViSet Administrator 2

NaViSet Administrator 2 software is designed to be an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of many NEC display devices and Windows computers. It is suitable for multi-device installations over arrays.

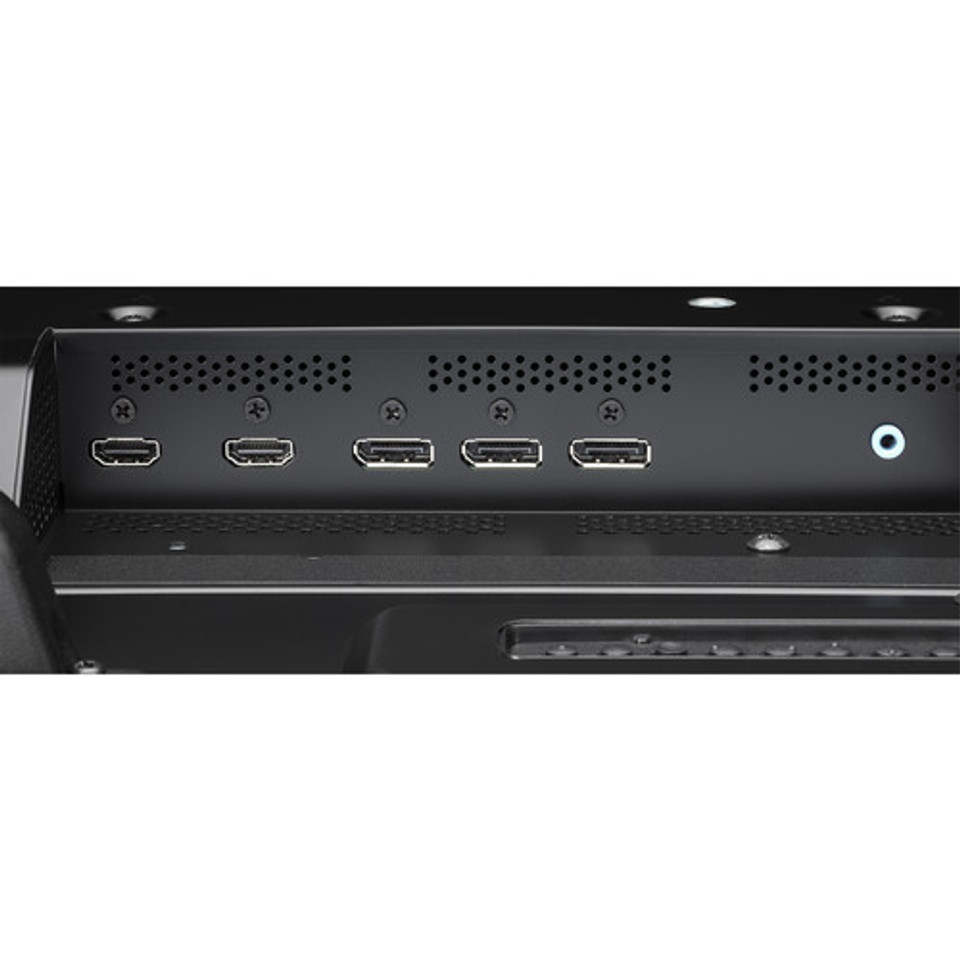

L-Shaped Connectivity

Connectivity is located on both the bottom and side of the display to allow for easy access, regardless of orientation.

Wireless Data Function

The built-in NFC (near-field communication) chip allows data to be read and written via a compatible mobile phone or tablet, reducing installation costs and time. Displays can then be easily configured and serviced using the NEC NFC Android app, which further expedites installation, as it can be utilized even when the display is powered off.

Removable Logo

When mounting from landscape to portrait orientation, you can also change the orientation of the logo or remove it altogether.

Additional Features

  • 350 cd/m² brightness combined with 4K UHD resolution and an anti-reflective screen surface help provide clear image visibility
  • Localized dimming
  • Ethernet and RS-232 control and communication
  • USB upstream/downstream
  • CEC communication
  • HDCP 1.4 and 2.2 support via HDMI; HDCP 1.3 support via DisplayPort
  • Firmware updates via USB/network
  • Image flip
  • TileMatrix (10 x 10)
  • Carbon footprint meter
  • 24/7 scheduler with real time clock
  • Holiday settings
  • Screensaver function
  • Multi-picture mode
  • Metal rear cabinet
  • Carrying handles
  • Variable picture modes
  • Noise reduction & adaptive contrast
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Powered USB
  • LED edge-lit backlighting
  • Auto ID/IP address control
  • Crestron RoomView, AMX Beacon, PJLink support
  • Optional human sensor

NEC C981Q Specs

Display

Screen Size (Diagonal) 98"
Resolution 3840 x 2160
Panel Type IPS-Type LCD
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Brightness 245 cd/m² (Typical)
350 cd/m² (Maximum)
Viewing Angle (H x V) 178 x 178°
Screen Area 47.81 x 84.99" / 121.44 x 215.87 cm
Aspect Ratio 16:9
Contrast Ratio 1300:1
Response Time 8 ms
Refresh Rate 60 Hz
Horizontal Frequency 26 to 135 kHz
Dot Pitch 0.56 x 0.56 mm
Pixels Per Inch (ppi) 45 ppi
Backlighting Technology Direct LED

Connectivity

Primary Connectivity Location Display
Input Ports 3 x HDMI Audio, Video
2 x DisplayPort Audio, Video
1 x 1/8" / 3.5 mm Audio
Output Ports 1 x DisplayPort – Audio, Video
1 x 1/8" / 3.5 mm – Audio
2 x Speaker Terminal – Audio
USB Ports 1 x USB 2.0 Type-A - Audio/Photo/Video
2 x USB 2.0 Type-A - Control
1 x USB (Version Unspecified) Type-B - Control
Ethernet Ports 2
Other I/O 1 x 1/8" / 3.5 mm IR Input
1 x RS-232C Control Input
Digital Media Slot microSD (Unspecified Type)
Number of OPS/Expansion Slots 1

General

TV Tuner No
Display Orientation Landscape, Portrait
HDCP Support Yes
Maximum Multiple Display Configuration 10 x 10
Ambient Light Sensor Yes

Surface

Haze Level 28%

Audio

Built-In Speakers Yes, 2 x 10 W
Speaker Configuration 2-Channel
External Speaker Output 2 x 15 W

Hardware

Slot 1 x OPS

Convenience

NFC Yes

Electrical

Power Consumption Maximum: 525.0 W
Operational: 240.0 W
Quick Start Mode: 2.0 W
Standby: 0.5 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 2.6 to 6.1 A

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 20 to 80%
Storage Humidity 10 to 90%
Operating Altitude 9843' / 3000 m
Storage Altitude 40,000' / 12,192 m
Certifications CEC, as per Manufacturer

Physical

Wall Mounting 400 x 400 mm
600 x 400 mm
IR Sensor Yes
Bezel Thickness 15.9 mm (Bottom/Right/Top/Left)
Duty Cycle 24 Hours / 7 Days
Dimensions 49.2 x 86.4 x 3.7" / 125.0 x 219.5 x 9.4 cm (without Stand)
Weight 198.4 lb / 89.99 kg (without Stand)

Packaging Info

Package Weight 198.6 lb
Box Dimensions (LxWxH) 92 x 58.5 x 13"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
