NEC C981Q-AVT3 98" Class 4K UHD Commercial IPS LED Display with ATSC/NTSC Tuner Card

Condition:
New
$9,758.00
Shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
C981Q-AVT3
UPC:
805736073676
MPN:
C981Q-AVT3
  • NEC C981Q-AVT3 98" Class 4K UHD Commercial IPS LED Display with ATSC/NTSC Tuner Card
  • NEC C981Q-AVT3 98" Class 4K UHD Commercial IPS LED Display with ATSC/NTSC Tuner Card
  • NEC C981Q-AVT3 98" Class 4K UHD Commercial IPS LED Display with ATSC/NTSC Tuner Card
  • NEC C981Q-AVT3 98" Class 4K UHD Commercial IPS LED Display with ATSC/NTSC Tuner Card
Frequently bought together:

Description

NEC NEC981Q Overview

With onboard ATSC/NTSC tuner, the 98" NEC C981Q-AVT3 allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Raspberry Pi Compute Module slot for source integration directly into the display. The C981Q-AVT3 series boasts a 350 cd/m² brightness along with a new anti-glare surface that allows for efficient readability when ambient light is present and is ideal for 24/7 signage in Retail environments as well as when used for presentation purposes in Corporate or Educational institutions

Key Features

  • 4K UHD (3840 x 2160) Native Resolution
  • 60 Hz Refresh Rate
  • 1300:1 Typical Contrast Ratio
  • Includes ATSC/NTSC Tuner Card

Specifications:

Display

Panel Technology

S-IPS

Viewable Image Size

98 "

Aspect Ratio

16:9

Native Resolution

3840x2160

Supported Resolutions

DisplayPort: V1.2 (HDCP 1.3) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (DisplayPort 1.2))HDMI: (HDCP 1.4/2.2)VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (MODE2)), 4096 x 2160 (30Hz, 24Hz, 25Hz, 60Hz (MODE2))

Pixel Pitch

0.56 mm

Pixels Per Inch

45 PPI

Brightness (maximum)

350 cd/m2

Contrast Ratio (typical)

1300:1 (without local dimming)

Viewing Angle (typical)

178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Response Time (typical)

8 ms

Refresh Rate

60Hz

Active Screen Area

84.99 x 47.81 in. / 2158.85 x 1214.35mm

Orientation

Landscape/Portrait

Dimming Capability

Local Dimming Capable

Displayable Colors

More than 1.07 billion

Synchronization Range

Horizontal (Analog/Digital)

26kHz - 135.0kHz



Signal Compatibility/Connectivity

PC Signal Compatibility

Yes

Macintosh Signal Compatibility

Yes

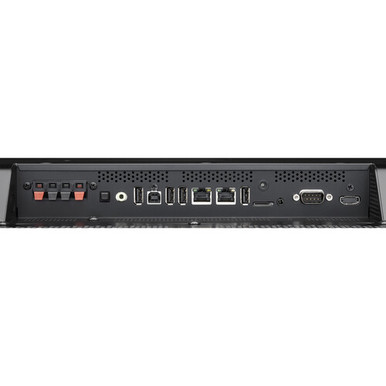

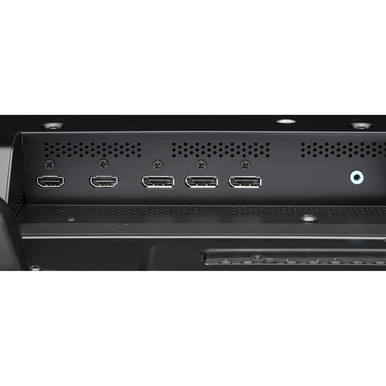

Input Terminals

Digital:

HDMI 2.0 (3), DisplayPort 1.2 (2)

Audio:

Audio Mini-Jack, DisplayPort Audio, HDMI Audio

External Control:

RS-232C, LAN, IR Remote

Data:

microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered)

Output Terminals

Digital:

DisplayPort (Outputs DisplayPort1)

Audio:

Audio Mini-Jack, External Speaker Out (2), DisplayPort Audio

External Control:

LAN

Power Consumption (typical)

On

240W

ECO Mode Standby

0.5W

Network Standby

2W

Power Consumption (max)

525W (380W Brightness Max)

Input Current

6.1A @ 100V
2.6A @ 240V



Physical Specifications

Bezel Width (Left/Right, Top/Bottom)

0.63 in./0.63 in., 0.63 in./0.63 in. : 15.9 mm/15.9 mm, 15.9 mm/15.9 mm

Dimensions (WxHxD)

With stand:

2193.8 x 1286.0 x 606.0mm / 86.34 x 50.63 x 23.9 in.

Without stand:

86.37 x 49.17 x 3.66 in. / 2193.8 x 1248.8 x 93 mm

Shipping:

2355.0 x 1454.0 x 330.0mm / 92.72 x 57.24 x 12.99 in.

Weight

Net Weight (with stand):

214.5lbs. / 97.30kg

Net Weight (without stand):

198.4 lbs. / 92 kg.

Shipping:

242.5 lbs. / 110.0kg

VESA Hole Configuration

400 x 400mm (M8 x 16mm)
600 x 400mm (M8 x 16mm)

Environmental Conditions

Operating Temperature

32-104°F / 0-40°C

Operating Humidity

20-80%

Operating Altitude

9843 ft. / 3000m

Storage Temperature

-4-140°F / -20-60°C

Storage Humidity

10-90%

Storage Altitude

40,000 ft. / 12,192m

Limited Warranty (parts & labor)

3 Years Advanced Replacement



Additional Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Integrated OPS Option Slot (filled with SB-11TM tuner card)
  • Localized Dimming
  • On-Screen Key Guide
  • Ethernet Control and Communication
  • USB Upstream/Downstream
  • RS-232 Control and Communication
  • CEC Communication
  • HDCP 1.4 and 2.2 support through HDMI
  • HDCP 1.3 support through DisplayPort
  • Firmware via USB/Network
  • Landscape/Portrait Capable
  • Image Flip
  • TileMatrix (10 x 10)
  • Carbon footprint meter
  • 24/7 Scheduler with Real Time Clock
  • Holiday Settings
  • Screen saver function
  • Multi-Picture Mode
  • 28% haze panel
  • Ambient light sensor
  • Screen Saver Function
  • Optional Human Sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Metal rear cabinet
  • Carrying Handles
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in 10W x 2 speakers
  • Powered USB
  • NaViSet Administrator Compatible
  • Auto ID/IP Address Control
  • Crestron RoomView Support
  • AMX Beacon
  • PJLInk Support
  • HDMI and DisplayPort Cable Included



Accessories

Optional

  • Table Top Stand (ST-801)
  • External Speakers (SP-TF1)
  • Standard Wall Mount (WMK-3257)
  • Large Wall Mount (WMK-6598)
  • Human Sensor Accessory (KT-RC2)
  • Compute Module Interface Board (DS1-IF10CE)
  • NEC Raspberry Pi Compute Module (RPi3CM16GB)



Cooling Method

Integrated Temperature Sensors and Cooling Fans
