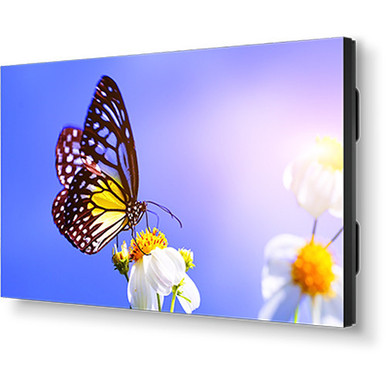

NEC UN552V-TMX9P 55" UN552V Ultra-Narrow Bezel 3x3 Display Video Wall

(No reviews yet) Write a Review
SKU:
UN552V-TMX9P
UPC:
805736072235
MPN:
UN552V-TMX9P
Condition:
New
Shipping:
Free Shipping
  • NEC 55" UN552V Ultra-Narrow Bezel 3x3 Display Video Wall
  • NEC 55" UN552V Ultra-Narrow Bezel 3x3 Display Video Wall
  • NEC 55" UN552V Ultra-Narrow Bezel 3x3 Display Video Wall
  • NEC 55" UN552V Ultra-Narrow Bezel 3x3 Display Video Wall
$40,979.00
Frequently bought together:

Description

NEC's complete 55" 3x3 LCD TileMatrix™ Digital Video Wall Solution delivers an 165" all-in-one, easy-to-configure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix, TileComp and TileCut technologies, combined with the ultra-narrow bezel design of the NEC UN552V and the full adjustment capabilities of the Peerless DS-VW775 mount, provide for a near seamless video wall without the need for additional third-party equipment.

  • Bundled solution with everything required for a 3x3 video wall makes configuration and installation easy
  • Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
  • SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
  • 500cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
  • HDMI and DisplayPort daisy chain capabilities can support up to 4K UHD resolution
  • New TileCut function added to the TileMatrix functionality for ultimate adjustment of the imagery in the wall
  • Uniformity calibration of each display for gamma, intensity and RGB for consistency from display to display
  • NEC Display Wall Calibrator, MultiProfiler, and NaViSet Administrator 2 software compatible.

Specifications:

Display

Panel Technology

S-IPS

Viewable Image Size

55 "

Aspect Ratio

16:9

Native Resolution

1920x1080

Pixel Pitch

0.5 mm

Pixels Per Inch

45 @ native resolution

Backlight Type

LED Direct-lit

Brightness (maximum)

500 cd/m2

Contrast Ratio (typical)

1200:1 (without local dimming)

Viewing Angle (typical)

178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Response Time (Gray to Gray)

8 ms

Refresh Rate

60Hz

Active Screen Area

47.62 x 26.79 in. / 1209.6 x 680.4mm

Orientation

Landscape/Portrait

Displayable Colors

More than 1.07 billion



Synchronization Range

Horizontal (Analog/Digital)

Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 - ~91.1-~134.0KHz



Input Signal

Video

Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort

Sync

Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Calibration

Factory Calibration

Yes

Sensor Calibration (through USB)

Yes, External

Calibration with Software

NEC Display Wall Calibrator (KT-LFD-CC2)

Calibration Software

NEC Display Wall Calibrator (KT-LFD-CC2)

Signal Compatibility/Connectivity

PC Signal Compatibility

Yes

Macintosh Signal Compatibility

Yes

Video

Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort

Sync

Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

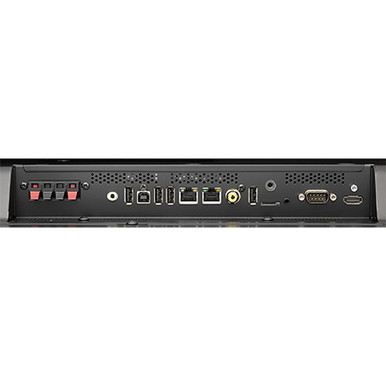

Input Terminals

Analog:

VGA 15-pin D-sub

Digital:

DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D

Audio:

Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio

External Control:

RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)

Data:

microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered)

Output Terminals

Digital:

DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS))

Audio:

3.5mm Mini-Jack, External Speaker Jack (2)

External Control:

LAN (100Mb)

Power Consumption (typical)

On

150W - Per Display

ECO Mode Standby

<0.5W

Power Consumption (max)

225W (Brightness Max), 380W (All Functions Maxed) - Per Display

Input Current

4.2A @ 100V, 1.7A @ 240V Per Display

Physical Specifications

Bezel Width (Left/Right, Top/Bottom)

0.09 in./0.05 in., 0.09 in./0.05 in. : 2.3 mm/1.2 mm, 2.3 mm/1.2 mm

Dimensions (WxHxD)

Without stand:

47.8 x 27 x 4.1 in. / 1213.4 x 684.2 x 103.8 mm

Shipping:

56.5 x 34.4 x 12.5 in. / 1436.0 x 873.0 x 317.0mm

Weight

Net Weight (with stand):

61.9 lbs. / 28.1kg

Net Weight (without stand):

61.9 lbs. / 28.1 kg.

Shipping:

83.8lbs. / 38.0kg

VESA Hole Configuration

400 x 400mm (4-hole, M6)

Environmental Conditions

Operating Temperature

41-104°F / 5-40°C

Operating Humidity

20-80%

Operating Altitude

9843 ft. / 3000m

Storage Temperature

-4-140°F / -20-60°C

Storage Humidity

10-90%

Storage Altitude

40,000 ft. / 12,192m

Limited Warranty (parts & labor)

3 years



Additional Features

  • Advanced thermal capabilities
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Landscape/portrait capable
  • Carbon footprint meter
  • SpectraView Engine Capabilities
  • Scheduler (w/ Real-Time Clock and Holiday mode)
  • Self Calibration to external color sensor
  • White Copy Function
  • Screen saver function
  • 4K UHD Daisy Chain capabilities
  • Optional human sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Raspberry Pi Compute Module Slot
  • Expanded daisy chain (DP 1.2/HDMI 2.0)
  • 6-axis color adjustment
  • Metal rear cabinet
  • Handles
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Frame Comp Capabilities
  • Internal Media Player via microSD or USB
  • HDR Emulation
  • Aspect ratio control
  • LED direct-lit backlighting

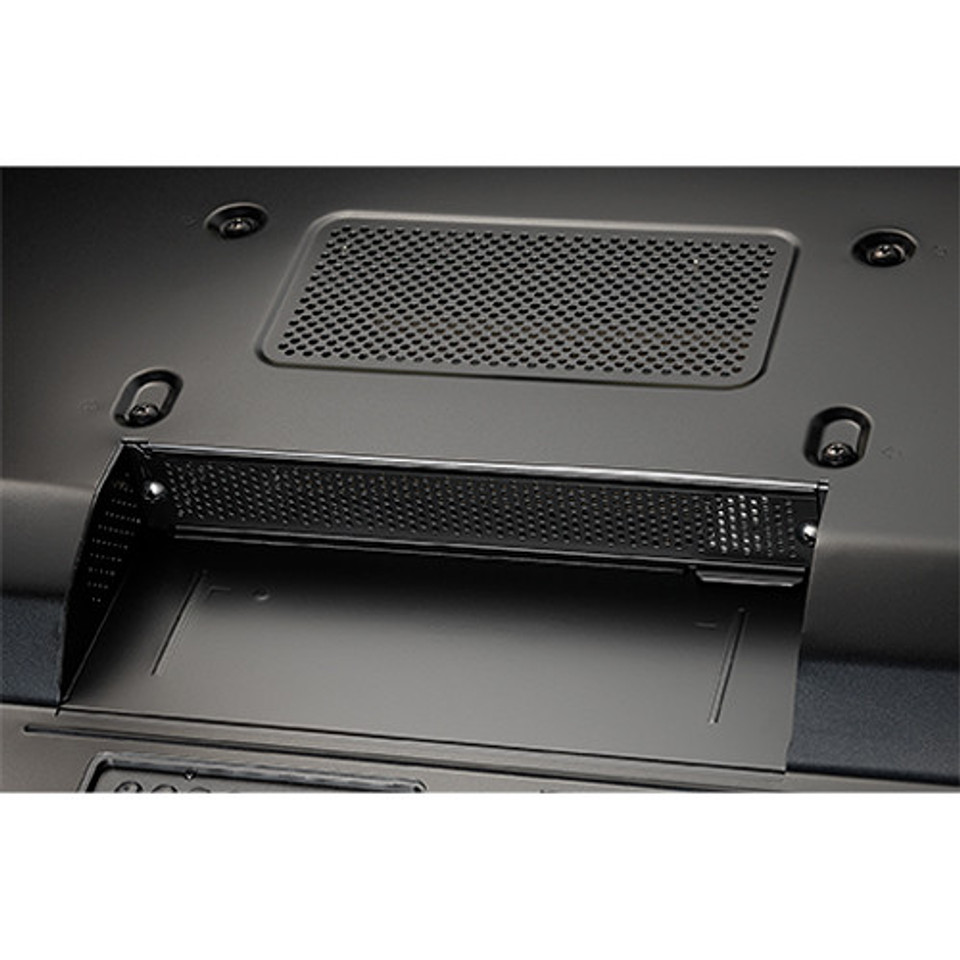

  • OPS/Expansion slot



Accessories

Optional
  • Display Wall Calibrator Kit (KT-LFD-CC2)
  • Human/IR Sensor Accessory (KT-RC3)
  • Table Top Stand (ST-551)
  • Overframe Bezel Kit (KT-55UN-OF5)
