NEC V754Q 75" 4K UHD Display

NEC V754Q Overview

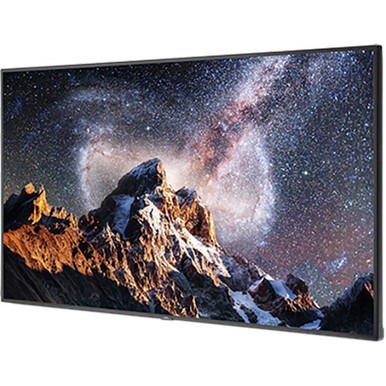

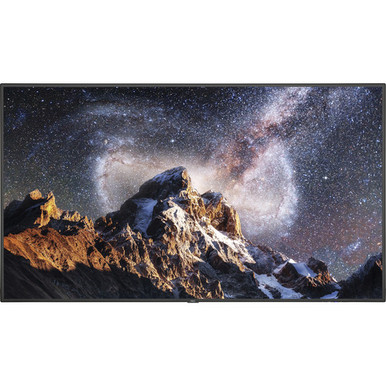

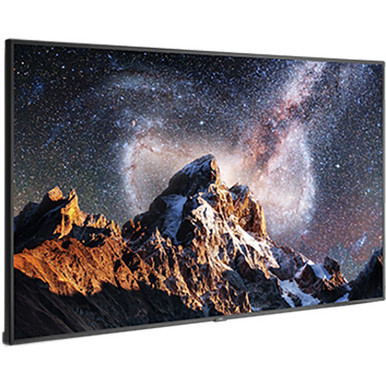

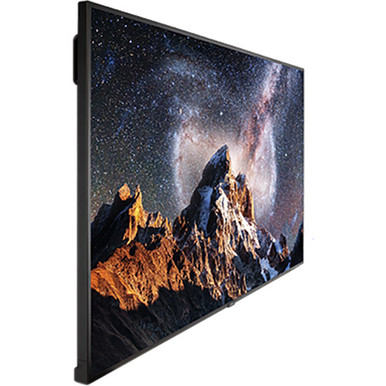

The 75″ 4K UHD Display from NEC features clear, detailed imagery for unobtrusive digital signage. It has a slim design that allows for integration into any type of environment and a full metal chassis coupled with real-time temperature sensors and integrated cooling fans that maintain the professional quality necessary for commercial environments.

The 75″ display includes three HDMI 2.0 and two DisplayPort 1.2 video inputs. The display also includes expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The monitor has a 500 cd/m² brightness along with an anti-glare surface that allows for efficient readability when ambient light is present. It is also suitable for 24/7 signage in retail environments and for presentations in corporate or educational institutions.

Key Features

• 4K UHD (3840 x 2160) Resolution
• 60 Hz Refresh Rate
• 1200:1 Contrast Ratio
• HDMI, DisplayPort & USB Inputs
• Ethernet Connectivity
• Dual Built-In 10W Speakers
• Digital-Signage Capable
• Landscape/Portrait Orientation
• More than 1.07 Billion Colors

Brightness

500 cd/m² brightness combined with UHD resolution and an anti-reflective screen surface will allow for clear visibility in higher ambient light conditions.

SpectraView Engine

Allows for complete color, intensity, gamma, or uniformity control for imaging performance.

Integrated Media Player

Allows for audio, video, or image playback via USB or SD card.

Industrial-Strength, Premium-Grade Panel

Thermal protection and internal temperature sensors with self-diagnostics and fan-based technology allows for 24/7 operation.

Additional Features

• Localized dimming

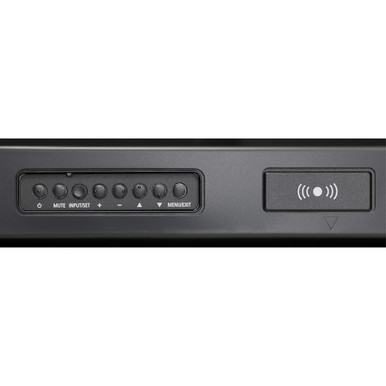

• On-screen key guide
• Ethernet control and communication
• USB upstream/downstream
• RS-232 control and communication
• CEC communication
• HDCP 1.4 and 2.2 support through HDMI
• HDCP 1.3 support through DisplayPort
• Firmware via USB/Network
• Image flip
• TileMatrix (10 x 10)
• Carbon footprint meter
• 24/7 scheduler with real time clock
• Holiday settings
• Screen saver function
• Multi-picture mode
• 44% haze panel
• Ambient light sensor
• Screen saver function
• Optional human sensor
• Intelligent wireless data (near field communications)
• Metal rear cabinet
• Carrying handles
• Variable picture modes
• Advanced video settings (noise reduction, adaptive contrast)
• Input labeling
• Backlight adjust
• Aspect ratio control
• Built-in 2 x 10W speakers
• Powered USB
• NaViSet administrator compatible
• Auto ID/IP address control
• Crestron roomview support
• AMX beacon
• PJLink support
• HDMI and DisplayPort cables included

NEC V754Q Specs

Display

Screen Size (Diagonal)	75″
Resolution	3840 x 2160
Panel Type	IPS-Type LCD
Brightness	500 cd/m² (Maximum)
Viewing Angle (H x V)	178 x 178°
Screen Area	64.95 x 36.53″ / 164.97 x 92.79 cm
Aspect Ratio	16:9
Contrast Ratio	1200:1
Refresh Rate	60 Hz
Horizontal Frequency	26 to 135 kHz (Analog) 26 to 135 kHz (Digital)
Dot Pitch	0.43 x 0.43 mm
Pixels Per Inch (ppi)	59 ppi
Backlighting Technology	Edge LED

Connectivity

Primary Connectivity Location	Display

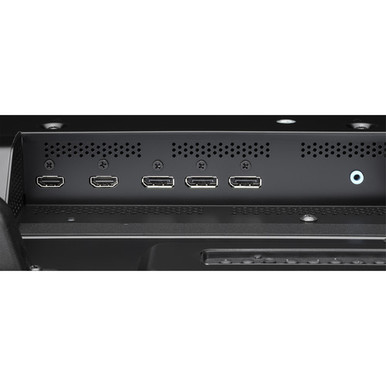

Input Ports	3 x HDMI 2.0 Audio, Video 2 x DisplayPort 1.2 Audio, Video 1 x 1/8″ / 3.5 mm Audio

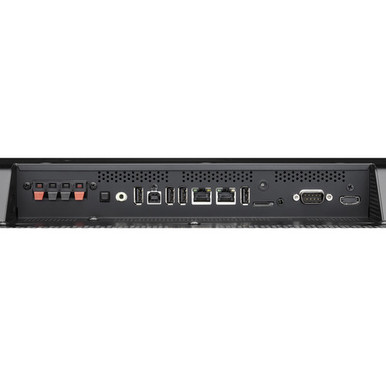

Output Ports	1 x DisplayPort – Audio, Video 1 x 1/8″ / 3.5 mm – Audio 2 x Speaker Terminal – Audio
USB Ports	1 x USB 2.0 1 x USB (Version Unspecified) – Service 1 x USB (Version Unspecified) Type-B 2 x USB (Version Unspecified)
Ethernet Ports	1
Control	RS-232C via DE-9/DB-9 Input IP via RJ45 IR
Digital Media Slot	microSD (Unspecified Type)
Number of OPS/Expansion Slots	2

General

TV Tuner	No

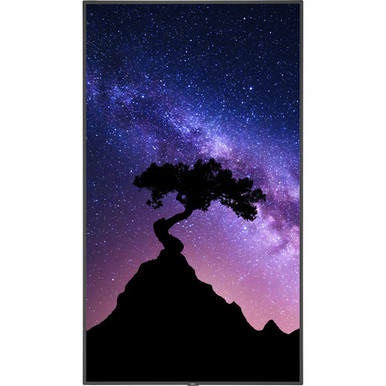

Display Orientation	Landscape, Portrait
HDCP Support	Yes

Surface

Haze Level

28%

Audio

Built-In Speakers

Yes, 2 x 10 W

Electrical

Power Consumption	Typical: 155.0 W Network Standby: 2.0 W Economy Mode: 0.5 W Maximum: 340.0 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 1.7 to 4.0 A

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	20 to 80%
Storage Humidity	10 to 90%
Operating Altitude	9843′ / 3000 m
Storage Altitude	40,000′ / 12,192 m

Physical

Wall Mounting	400 x 400 mm 600 x 400 mm
Bezel Thickness	14.8 mm (Bottom/Right/Top/Left)
Duty Cycle	24 Hours / 7 Days
Dimensions	66.2 x 37.7 x 2.8″ / 168.1 x 95.8 x 7.1 cm (without Stand)
Weight	116 lb / 52.62 kg (without Stand)
