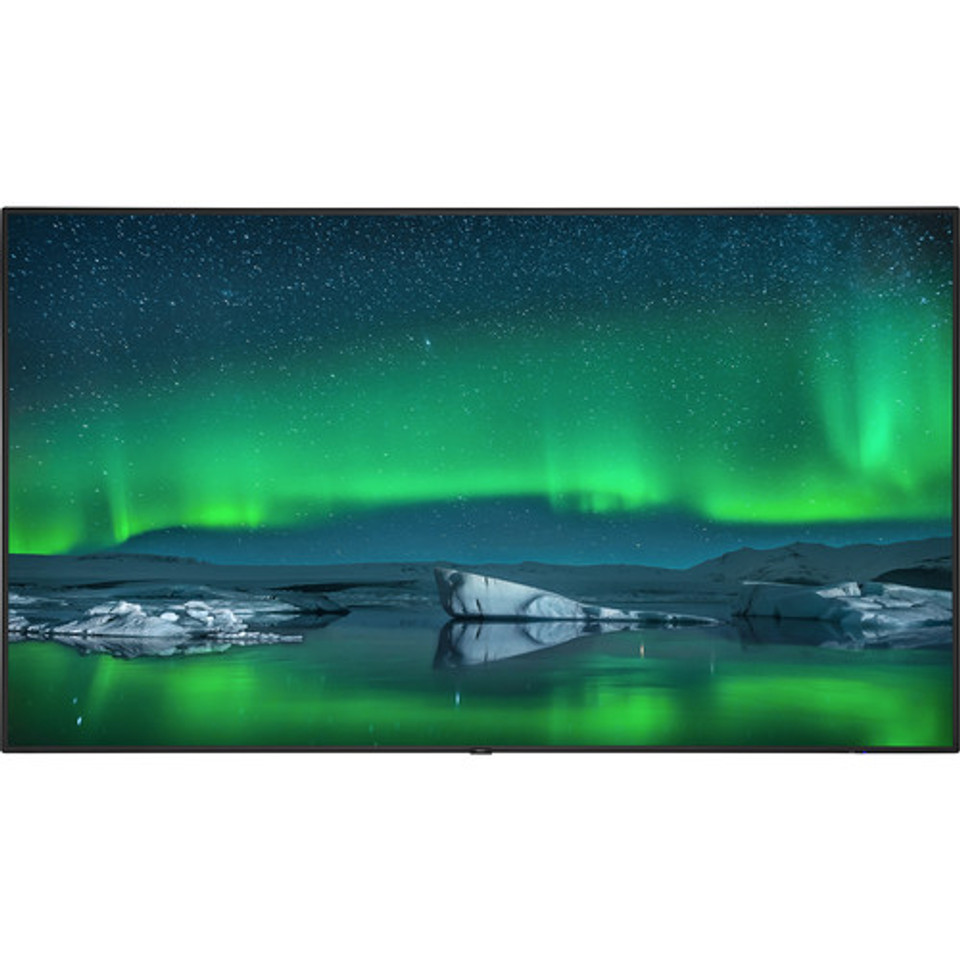

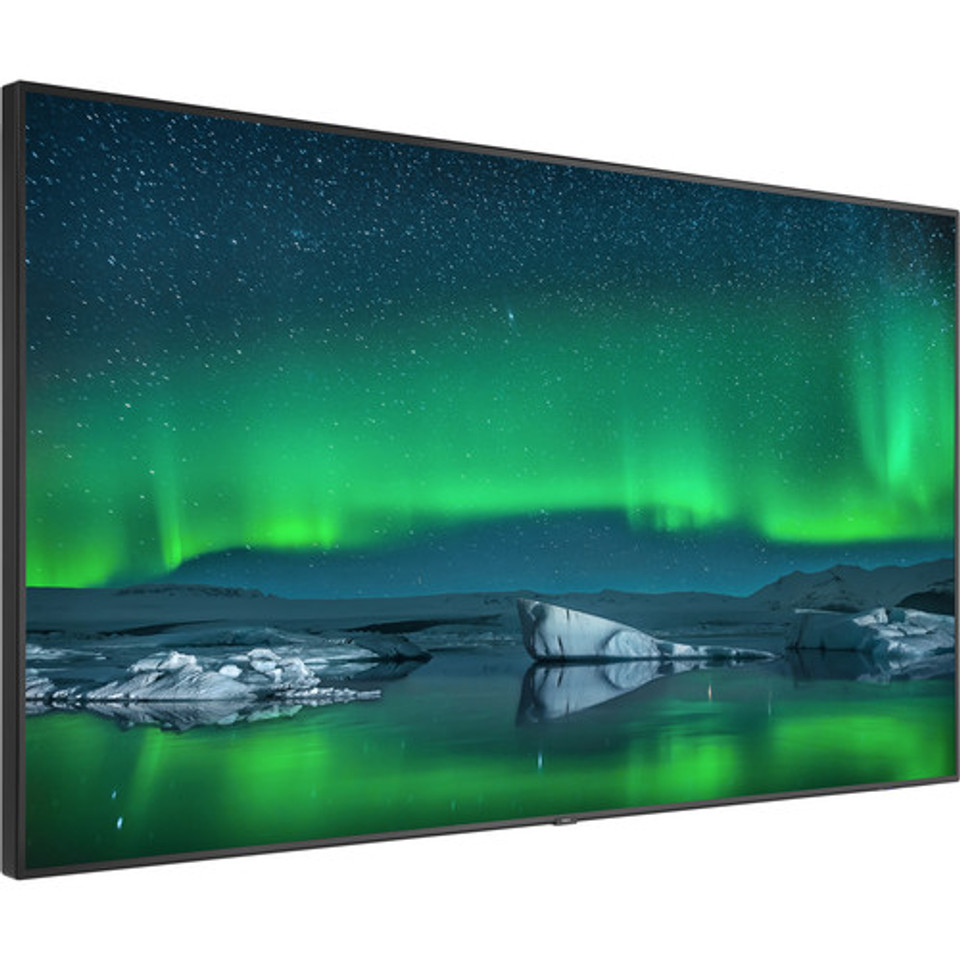

Name: NEC C861Q 86" Class 4K UHD Commercial IPS LED Display
Brand: NEC
SKU: C861Q
Price: 3960.00 USD
Availability: InStock

Screen Size (Diagonal) 86″

Resolution 3840 x 2160

Panel Type IPS-Type LCD

Bit Depth / Color Support 10-Bit (1.07 Billion Colors)

Brightness 245 cd/m² (Typical) 350 cd/m² (Maximum)

Viewing Angle (H x V) 178 x 178°

Screen Area 74.61 x 41.97″ / 189.51 x 106.60 cm

Aspect Ratio 16:9

Contrast Ratio 1200:1

Response Time 8 ms

Refresh Rate 60 Hz

Horizontal Frequency 26 to 135 kHz

Dot Pitch 0.49 x 0.49 mm

Pixels Per Inch (ppi) 51 ppi

Backlighting Technology Edge LED

Primary Connectivity Location Display

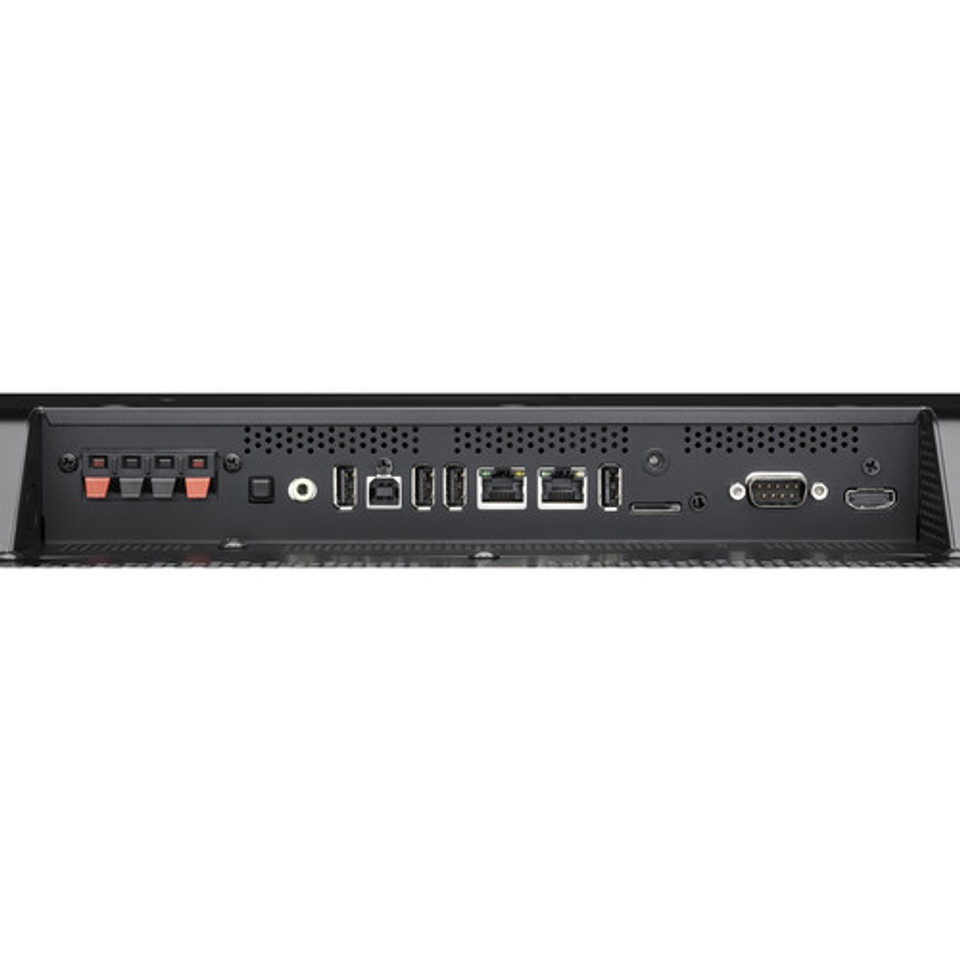

Input Ports 3 x HDMI Audio, Video 2 x DisplayPort Audio, Video 1 x 1/8″ / 3.5 mm Audio

Output Ports 1 x DisplayPort – Audio, Video 1 x 1/8″ / 3.5 mm – Audio 2 x Speaker Terminal – Audio

USB Ports 1 x USB 2.0 Type-A – Audio/Photo/Video 2 x USB 2.0 Type-A – Control 1 x USB (Version Unspecified) Type-B – Control

Ethernet Ports 2

Other I/O 1 x 1/8″ / 3.5 mm IR Input 1 x RS-232C Control Input

Digital Media Slot microSD (Unspecified Type)

Number of OPS/Expansion Slots 1

TV Tuner No

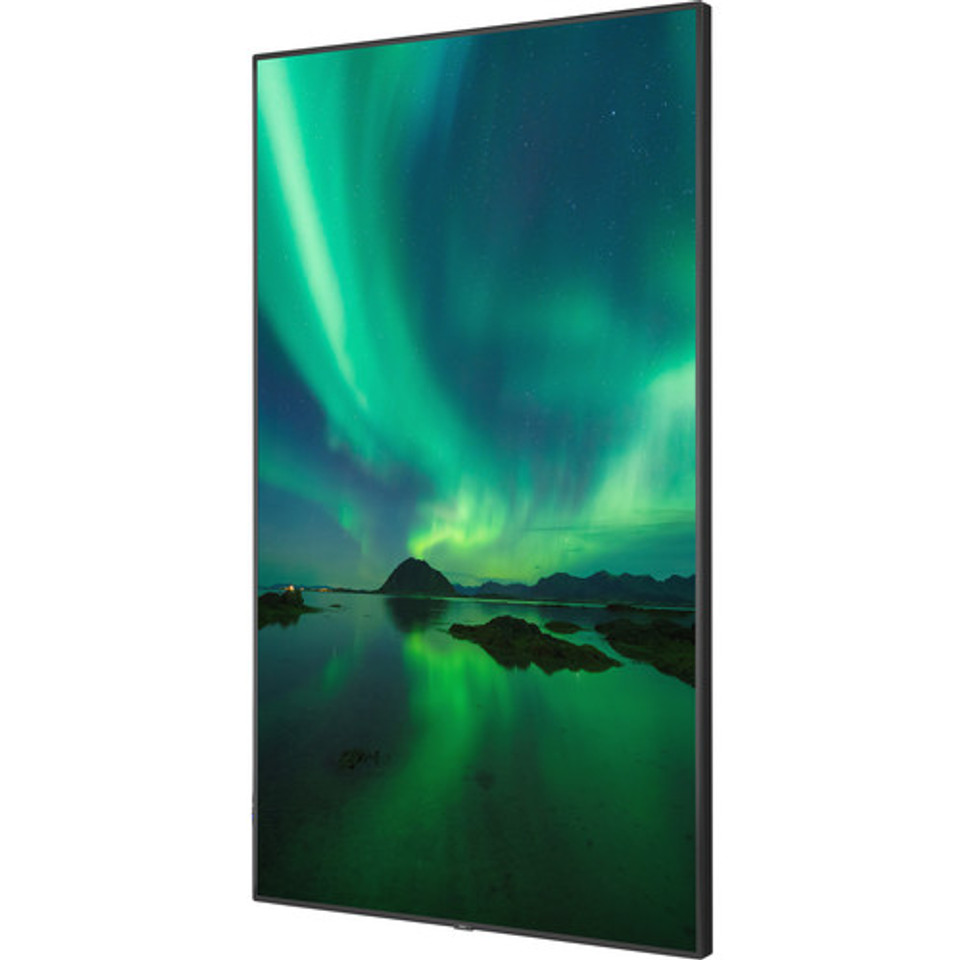

Display Orientation Landscape, Portrait

HDCP Support Yes

Maximum Multiple Display Configuration 10 x 10, 10 x 10 Ambient Light Sensor Yes Audio Built-In Speakers Yes, 2 x 10 W Speaker Configuration 2-Channel External Speaker Output 2 x 15 W Hardware Slot 1 x OPS Convenience NFC Yes Electrical

Ambient Light Sensor Yes

Built-In Speakers Yes, 2 x 10 W

Speaker Configuration 2-Channel

External Speaker Output 2 x 15 W

Slot 1 x OPS

NFC Yes

Power Consumption Maximum: 425.0 W Operational: 230.0 W Quick Start Mode: 2.0 W Standby: 0.5 W

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Operating Temperature 32 to 104°F / 0 to 40°C

Storage Temperature -4 to 140°F / -20 to 60°C

Operating Humidity 20 to 80%

Storage Humidity 10 to 90%

Operating Altitude 9843′ / 3000 m

Storage Altitude 40,000′ / 12,192 m

Certifications CEC, as per Manufacturer

Wall Mounting 400 x 400 mm 600 x 400 mm

IR Sensor Yes

Bezel Thickness 15.3 mm (Bottom/Right/Top/Left)

Duty Cycle 24 Hours / 7 Days

Dimensions 75.9 x 43.3 x 2.9″ / 192.8 x 109.9 x 7.4 cm (without Stand)

Weight 127.4 lb / 57.79 kg (without Stand)

Package Weight 161.8 lb

Box Dimensions (LxWxH) 84 x 50.5 x 12.25″

Screen Size (Diagonal) 86″ Resolution 3840 x 2160 Panel Type

Bit Depth / Color Support 10-Bit (1.07 Billion Colors) Brightness 245 cd/m² (Typical) 350 cd/m² (Maximum) Viewing Angle (H x V) 178 x 178° Screen Area 74.61 x 41.97″ / 189.51 x 106.60 cm

IPS-Type LCD Aspect Ratio 16:9

IPS-Type LCD Contrast Ratio 1200:1 Response Time 8 ms

IPS-Type LCD Refresh Rate 60 Hz Horizontal Frequency 26 to 135 kHz Dot Pitch 0.49 x 0.49 mm Pixels Per Inch (ppi) 51 ppi Backlighting Technology Edge LED Connectivity

3 x HDMI Audio, Video

2 x DisplayPort Audio, Video 1 x 1/8″ / 3.5 mm Audio

1 x DisplayPort Audio, Video

2 x Speaker Terminal Audio

1 x USB (Version Unspecified) Type-B Control

USB Ports Ethernet Ports 2 Other I/O 1 x 1/8″ / 3.5 mm IR Input 1 x RS-232C Control Input Digital Media Slot microSD (Unspecified Type)

USB Ports Number of OPS/Expansion Slots 1 General TV Tuner No Display Orientation Landscape, Portrait HDCP Support Yes

Power Consumption Maximum 425.0 W

Power Consumption Operational 230.0 W

Quick Start Mode 2.0 W

Power Consumption Standby 0.5 W

Power Consumption AC Input Power 100 to 240 VAC, 50 / 60 Hz Environmental

Power Consumption Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -4 to 140°F / -20 to 60°C

Power Consumption Operating Humidity 20 to 80% Storage Humidity 10 to 90%, Altitude 9843′ / 3000 m Storage Altitude 40,000′ / 12,192 m Certifications CEC, as per Manufacturer Physical Wall Mounting 400 x 400 mm 600 x 400 mm IR Sensor Yes Bezel Thickness 15.3 mm (Bottom/Right/Top/Left) Duty Cycle 24 Hours / 7 Days Dimensions 75.9 x 43.3 x 2.9″ / 192.8 x 109.9 x 7.4 cm (without Stand) Weight 127.4 lb / 57.79 kg (without Stand) Packaging Info Package Weight 161.8 lb

Power Consumption Box Dimensions (LxWxH) 84 x 50.5 x 12.25″

SKU C861Q

NEC C861Q 86" Class 4K UHD Commercial IPS LED Display

NEC C861Q Specs

Customer Reviews

Write a Review

Request a Quote

Payment Options

Why Buy from AVN

Warranty Information

Returns on Most Items

Product Details

Screen Size (Diagonal)	86″
Resolution	3840 x 2160
Panel Type	IPS-Type LCD
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
Brightness	245 cd/m² (Typical) 350 cd/m² (Maximum)
Viewing Angle (H x V)	178 x 178°
Screen Area	74.61 x 41.97″ / 189.51 x 106.60 cm
Aspect Ratio	16:9
Contrast Ratio	1200:1
Response Time	8 ms
Refresh Rate	60 Hz
Horizontal Frequency	26 to 135 kHz
Dot Pitch	0.49 x 0.49 mm
Pixels Per Inch (ppi)	51 ppi
Backlighting Technology	Edge LED

Primary Connectivity Location	Display
Input Ports	3 x HDMI Audio, Video 2 x DisplayPort Audio, Video 1 x 1/8″ / 3.5 mm Audio
Output Ports	1 x DisplayPort – Audio, Video 1 x 1/8″ / 3.5 mm – Audio 2 x Speaker Terminal – Audio
USB Ports	1 x USB 2.0 Type-A – Audio/Photo/Video 2 x USB 2.0 Type-A – Control 1 x USB (Version Unspecified) Type-B – Control
Ethernet Ports	2
Other I/O	1 x 1/8″ / 3.5 mm IR Input 1 x RS-232C Control Input
Digital Media Slot	microSD (Unspecified Type)
Number of OPS/Expansion Slots	1

TV Tuner	No
Display Orientation	Landscape, Portrait
HDCP Support	Yes
Maximum Multiple Display Configuration	10 x 10
Ambient Light Sensor	Yes

Built-In Speakers	Yes, 2 x 10 W
Speaker Configuration	2-Channel
External Speaker Output	2 x 15 W

Power Consumption	Maximum: 425.0 W Operational: 230.0 W Quick Start Mode: 2.0 W Standby: 0.5 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	20 to 80%
Storage Humidity	10 to 90%
Operating Altitude	9843′ / 3000 m
Storage Altitude	40,000′ / 12,192 m
Certifications	CEC, as per Manufacturer

Wall Mounting	400 x 400 mm 600 x 400 mm
IR Sensor	Yes
Bezel Thickness	15.3 mm (Bottom/Right/Top/Left)
Duty Cycle	24 Hours / 7 Days
Dimensions	75.9 x 43.3 x 2.9″ / 192.8 x 109.9 x 7.4 cm (without Stand)
Weight	127.4 lb / 57.79 kg (without Stand)

Package Weight	161.8 lb
Box Dimensions (LxWxH)	84 x 50.5 x 12.25″
