Complete FM Tour Guide System; 10 RCVR

Ideal Use Cases

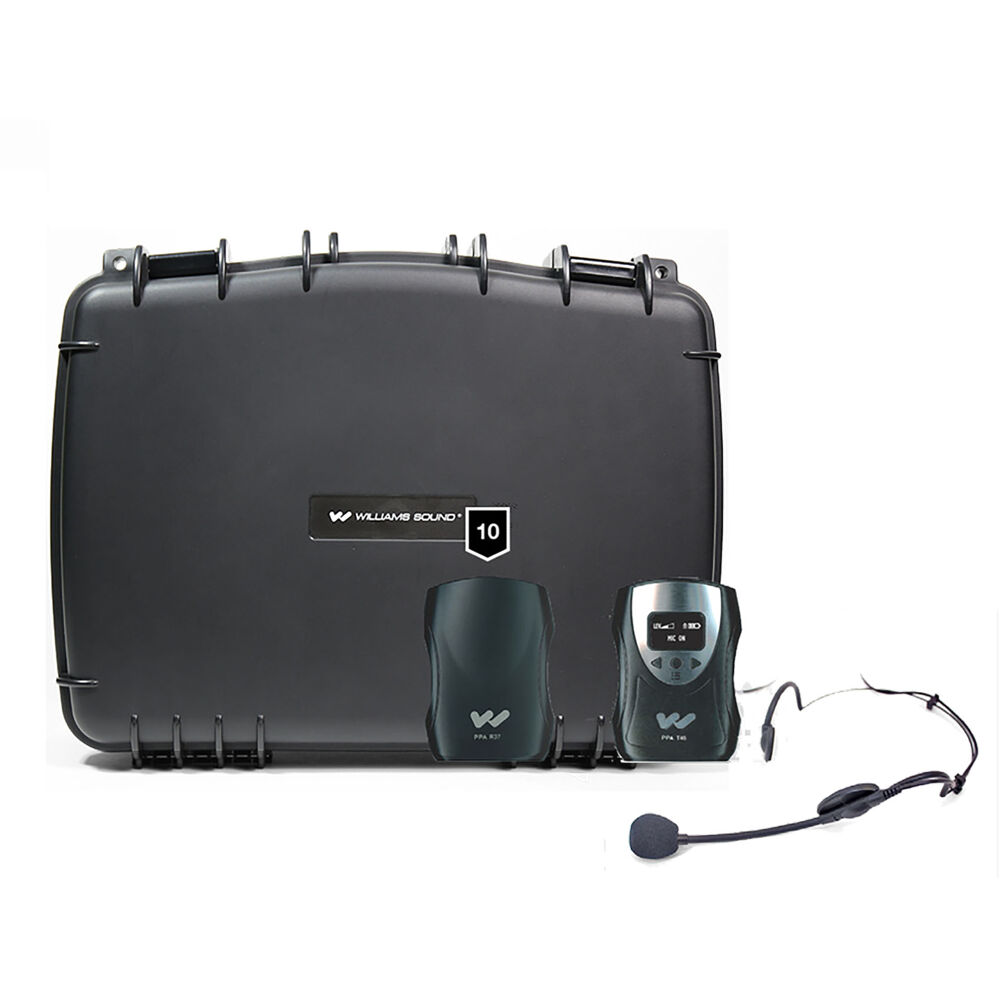

The Williams AV TGS PRO 737 is a complete FM tour guide system configured with 10 receivers. It is designed to help tour participants hear the guide through a selected FM channel, making it suited to guided tours, group presentations, and other situations where one presenter needs to communicate with multiple listeners. The system provides 17 selectable channels across 72.1 to 75.9 MHz and an operating range of up to 150 feet or 45 meters. Each participant can listen through the receiver’s 3.5 mm stereo/mono output.

Why Choose This Model

The TGS PRO 737 combines portable AA battery operation with straightforward channel selection and detailed transmitter controls. Receivers access one of 17 channels through a seek button inside the battery compartment. The transmitter offers an OLED screen for channel or frequency, microphone level, auxiliary-input level, battery status, microphone mute, channel lock, and dual-preset information. Its menu also provides volume, auxiliary-input, compression, channel-mode, screen-timeout, and screen-brightness settings. This configuration gives the guide useful control while keeping receiver operation focused on listening.

Installation and Integration

Setup begins by powering the equipment with AA batteries and selecting a common FM channel for the transmitter and receivers. Receiver specifications identify support for two AA alkaline or NiMH batteries, while the transmitter includes a battery-type switch for alkaline or NiMH operation. The transmitter’s 3.5 mm mono microphone input supplies electret microphone bias and provides an adjustable 25 dB gain range. A separate 2.5 mm stereo auxiliary input offers a 60 dB adjustable gain range. The microphone cord serves as the integral transmit antenna, while the earphone or headphone cord functions as the receiver antenna. Compatible receiver models listed for the transmitter include the PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, and PPA R1600.

Performance Highlights

The FM transmitter operates with plus or minus 75 kHz peak deviation and delivers an RF output of 80 mV/m at 3 meters, the maximum stated as allowed by FCC rules. Frequency stability is rated at plus or minus 0.005 percent using frequency synthesis, a crystal reference, and PLL. Receiver performance includes a minimum 65 dB signal-to-noise ratio at 100 µV, an AFC range of plus or minus 120 kHz, and up to 35 mW peak audio output into 16 ohms. The specified earbud uses a foam cushion, 3.5 mm plug, and 32-ohm impedance. Receiver battery life is approximately 50 hours with two BAT 001 non-rechargeable alkaline batteries. The transmitter battery specification lists up to 30 hours with two AA alkaline batteries.

What Makes It Different

The system balances simple participant operation with configurable guide-side controls. A receiver automatically enters sleep mode after approximately six minutes without an RF signal, while its green power indicator flashes when the battery is low. The transmitter’s main button supports power and microphone-mute functions, with dedicated Up, Down, and Menu buttons for settings. Selectable 1:1 or 2:1 audio compression provides another level of adjustment. The listed electret-condenser microphone has a unidirectional pickup pattern, a 50 Hz to 16 kHz frequency response, a right-angle 3.5 mm mono plug, and a 47.3-inch cord. Published case specifications describe a copolymer enclosure with 13.0 by 18.0 by 6.7-inch interior dimensions.

Final Assessment

The Williams AV TGS PRO 737 is a practical choice when a guide needs to reach a group of up to 10 receiver users over a specified 150-foot range. Its 17-channel FM operation, OLED-equipped transmitter, separate microphone and auxiliary inputs, long receiver battery life, and automatic receiver sleep mode address the central requirements of a portable tour-listening system. FCC, Industry Canada, RoHS, and WEEE approvals are listed, along with a Lifetime PLUS Limited Warranty and 90-day coverage on most accessories.
