Remote Level Control with Muting-Rotary Optical Encoder-stainless steel

Ideal Use Cases

The RDL DS-RLC10M is intended for installations that need remote adjustment of an RDL VCA-controlled level, along with local muting and visible operating-level feedback. It supports a single control point or multiple control locations, with up to ten remote control locations. That makes it suitable wherever the same level function must be available from more than one installed position. The stainless-steel model mounts at the control location and combines rotary adjustment, mute control, and level indication in one compact wall-mounted interface.

Why Choose This Model

This model brings several control functions together. Level changes are made with an optical rotary encoder, while muting uses a momentary pushbutton with an LED indicator. A visual display shows the operating level, becoming bright during adjustment and dimming afterward. On power-up, the control can return to the last level or a stored preset level. Compatibility with all RDL VCA modules helps keep the control choice straightforward within an RDL VCA installation. The integral 0 to 10 VDC ramp generator also allows the unit to serve as a master-mode output or accept the ramp as a slave-mode input.

Installation and Integration

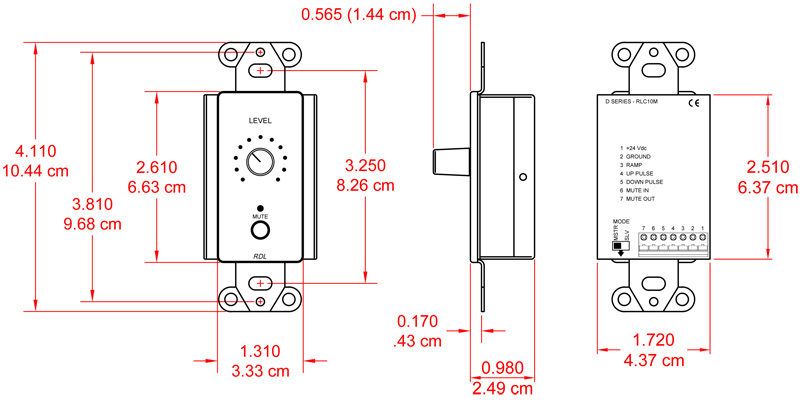

The DS-RLC10M mounts in a standard US electrical box and is also compatible with RDL WB- or SMB-series boxes. The cover plate is available separately, so it should be included when planning the finished installation. The listed unit dimensions are 4.11 inches (10.44 cm) high and 1.31 inches (3.33 cm) wide, with a depth of 0.98 inches (2.49 cm) without the knob. Power is 24 VDC at 50 mA and is ground-referenced. Control wiring can use the two open-collector pulse outputs for UP and DOWN, each rated at 20 mA, while the ramp connection operates from 0 to 10 VDC according to master or slave mode.

Performance Highlights

The encoder response varies with rotation speed. Approximate minimum-to-maximum travel is listed as five rotations at slow speed without acceleration, three rotations at medium speed with acceleration, and one fast counterclockwise rotation. The pulse interval is 500 microseconds minimum between consecutive pulses. Pulse duration ranges from 500 microseconds minimum to 4 milliseconds maximum. These defined pulse and ramp interfaces give installers concrete electrical parameters for integration rather than relying only on a mechanical control position.

During use, the level display provides immediate visual feedback without remaining at full brightness after the adjustment is complete. The mute LED separately indicates the mute function at the pushbutton. The stored startup behavior supports either the last operating level or a stored preset, depending on the configuration used. Together, the encoder, display, mute control, and startup behavior create a focused interface for routine level operation.

What Makes It Different

The DS-RLC10M differs from a basic potentiometer-style wall control by using an optical rotary encoder and by providing pulse outputs as well as a 0 to 10 VDC ramp. It can participate in a single-location system or a system with as many as ten remote control locations. Its master/slave ramp operation, accelerated encoder response, dimming display, dedicated mute button, and power-up level behavior are all documented functions of the same control. This listing is specifically for the stainless-steel version; the product line is also described as available in black and white.

Final Assessment

For an RDL VCA installation that calls for remote level adjustment, local muting, visible level feedback, and multi-location capability, the DS-RLC10M consolidates the required user controls in a narrow wall-mount format. Its published pulse timing, 0 to 10 VDC ramp, 24 VDC power requirement, and box compatibility provide the core details needed to evaluate integration before purchase. The result is a clearly defined RDL control interface centered on level and mute operation.
