Remote Level Control with Muting-stainless steel

Ideal Use Cases

The RDL DS-RLC10KM is designed for systems that need remote level adjustment and a dedicated mute function at one control location. Its 0 to 10 kΩ linear control connects directly to RDL VCA modules and can also directly control modules equipped with RJ45 VCA control. The single-turn rotary control supports straightforward front-panel level setting, while the momentary mute button provides a separate way to toggle the controlled output on and off. This listing is for the stainless version, intended for installation in a standard US electrical box.

Why Choose This Model

This model combines level control, mute switching, and visible status on one compact panel. The indicator is green when active, at which point the dc variable output tracks the front-panel knob. It changes to red when muted, with the dc variable output at 0 volts. That direct relationship between knob position, mute state, and indicator color gives the operator specific information about the current control condition. The MUTE output is a 25 mA open-collector output, and the rotary element is specified as 0 to 10 kΩ linear rather than an unspecified level control.

Installation and Integration

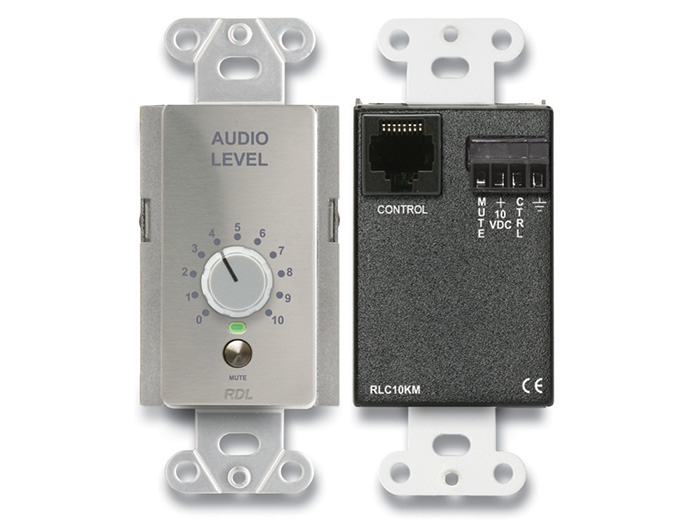

The DS-RLC10KM mounts in a standard US electrical box. A cover plate is available separately, so it should be accounted for when planning the finished installation. Wiring can be completed through an RJ45 connection or through discrete wiring connections on the detachable terminal block. This flexibility supports direct connection to RDL VCA modules as well as direct control of modules that provide RJ45 VCA control. The panel measures 4.1 inches (10.4 cm) high and 1.7 inches (4.33 cm) wide. Depth is 1.44 inches (3.7 cm) without the knob and 2 inches (5 cm) with the knob, providing specific measurements for checking electrical-box space and finished projection.

Performance Highlights

At the center of the interface is a single-turn rotary control with a linear resistance range from 0 to 10 kΩ. In the active state, the green indicator confirms that the dc variable output follows the position of this control. Pressing the momentary mute button toggles the output state; when muted, the indicator turns red and the dc variable output becomes 0 volts. The specified MUTE output is 25 mA open-collector. Together, these specifications define how the panel handles its two primary duties: providing a variable control signal for level setting and delivering an independently indicated mute state for compatible VCA-controlled equipment.

What Makes It Different

Unlike a level-only wall control, the DS-RLC10KM places a mute button and a two-color mute indicator beside the rotary control. It is built around a single control location, keeping the interface focused on one operator position. Another distinguishing point is its choice of connection methods: installers can use RJ45 for compatible VCA control or select discrete wiring on the detachable terminal block. The panel also communicates its operating logic directly through color: red corresponds to muted operation and 0-volt dc variable output, while green corresponds to active operation and an output that tracks the knob. The stainless configuration identifies this specific model among the available white, stainless, and black versions.

Final Assessment

The DS-RLC10KM is a clearly specified remote control panel for compatible RDL VCA applications. It pairs a 0 to 10 kΩ linear, single-turn level control with momentary mute operation, red/green state indication, and a 25 mA open-collector MUTE output. RJ45 and detachable-terminal-block connection options support different wiring approaches, while standard US electrical-box mounting defines the installation format. For a project requiring one stainless control position with both level and mute functions, this model brings the relevant controls and status feedback together on a compact panel. Review the listed dimensions and the separately available cover plate when completing the installation plan.
