Room Control for RCX-5C Room Combiner-Decora Stainless

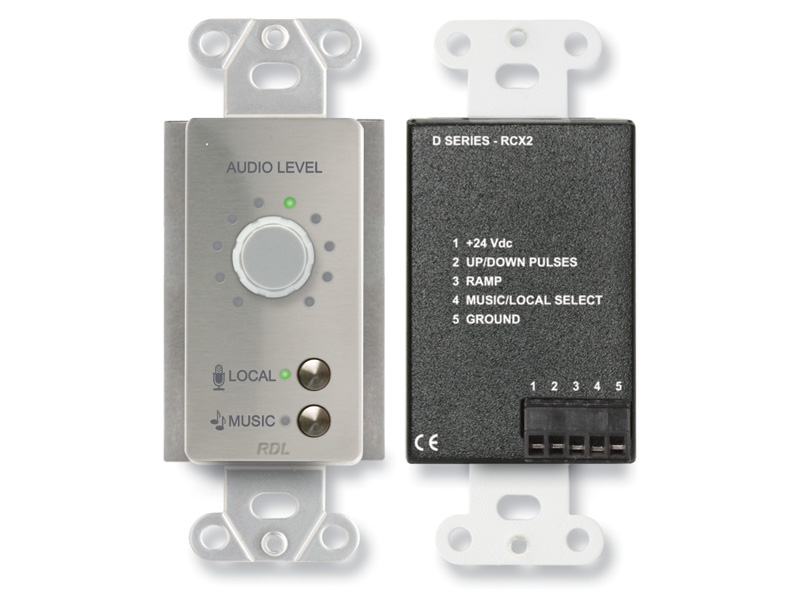

The RDL DS-RCX2 is a stainless Decora room control made for use with the RCX-5C Room Combiner. Mounted in an individual room, it places source selection and audio-level adjustment at the room location. Its front controls combine long-life pushbuttons for Music or Local / Combined selection with an optical rotary encoder for level setting. An LED readout accompanies the encoder, giving the user a visible level indication. The panel and rear enclosure use all-steel construction.

Ideal Use Cases

This model fits room-combining installations where occupants need access to source and level functions from inside a room. It is especially relevant when the available selections must include Music and Local / Combined operation rather than a general-purpose control layout. The stated system configuration supports one or two RCX 2 units connected in the same room. That makes the DS-RCX2 applicable to a single-control layout as well as a room design that calls for two connected units.

Why Choose This Model

Every user-facing control disclosed for the DS-RCX2 has a defined role. The pushbuttons handle the named selection functions and are described as long life. The rotary control uses an optical encoder, while the LED readout displays the setting used for audio level. This combination keeps selection and level control together on one room-mounted interface. The Decora design establishes the device format, while the steel panel and steel rear enclosure provide the construction details identified for this version.

Installation and Integration

The unit is intended to mount in the individual room it controls. Its Decora design and rear enclosure form an integrated room-control assembly, and the source data specifically permits either one or two RCX 2 units in the same room. Exact wiring, power, and connector details are not stated in the supplied product data and should be taken from the product documentation rather than assumed. A PDF manual is listed. Design and coordination resources also include CAD information: an engineering functional block in American DXF format, a rear panel diagram in American DXF, and a front panel diagram in Metric DXF. A PDF specification sheet is also identified in the source data.

Performance Highlights

The DS-RCX2 concentrates on two disclosed control tasks: source choice and level setting. The long-life pushbuttons provide the Music or Local / Combined selection function. The optical rotary encoder is dedicated to setting audio level, and its LED readout provides a direct visual reference for that adjustment. These are control functions for the RCX-5C Room Combiner; the provided data does not list independent audio-processing, amplification, loudspeaker, video, or wireless capabilities. Keeping those boundaries clear makes it easier to specify the DS-RCX2 for its documented role.

What Makes It Different

Rather than being identified only as a generic room control, the DS-RCX2 is tied to the RCX-5C Room Combiner application and names its available controls. It also states the supported in-room quantity: one or two RCX 2 units may be connected in the same room. The optical encoder and LED readout distinguish the level-setting interface, while the named pushbutton choices define how the user moves between Music and Local / Combined selection. The stainless Decora presentation, all-steel panel, and all-steel rear enclosure complete the disclosed physical design.

Final Assessment

For an RCX-5C installation requiring source and level control inside the room, the DS-RCX2 provides the documented controls in a Decora-format, steel-enclosed assembly. Its strongest fit is a project that calls for Music or Local / Combined selection, visible LED level feedback, and support for one or two controls within a room. The available PDF and DXF resources support further design review, while installation details not present in the supplied data should be confirmed in those documents before connection.
