HD Series Rack Adapter

Ideal Use Cases

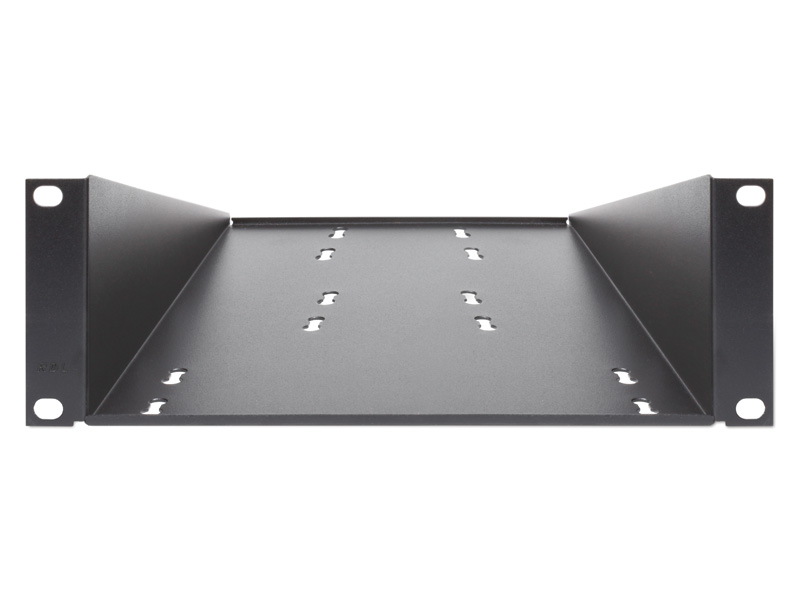

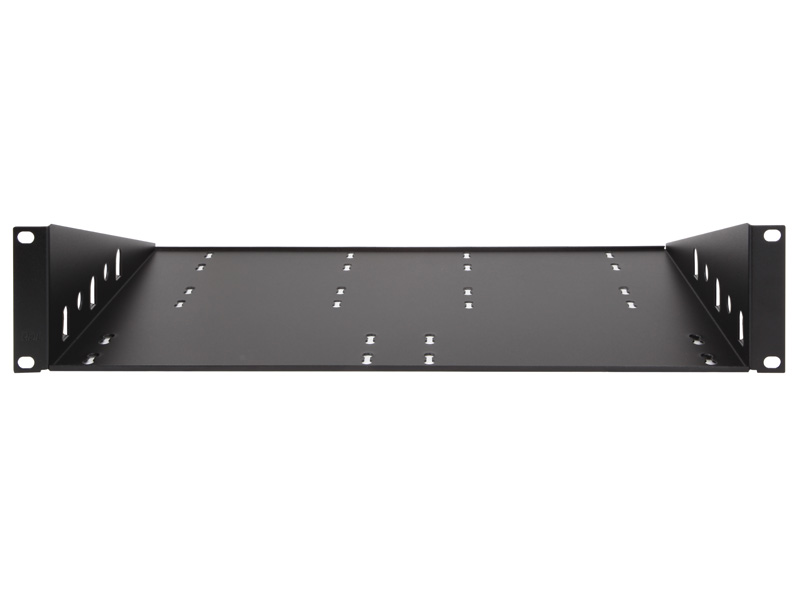

The RDL HD-RA2 is designed for installations that need to mount one HD Series product in a standard 19-inch rack. It is a focused solution for rack layouts where the selected HD Series product must occupy a defined, two-rack-unit position. This makes the adapter appropriate for new rack configurations as well as installations in which an HD Series product is being added to an existing 19-inch rack.

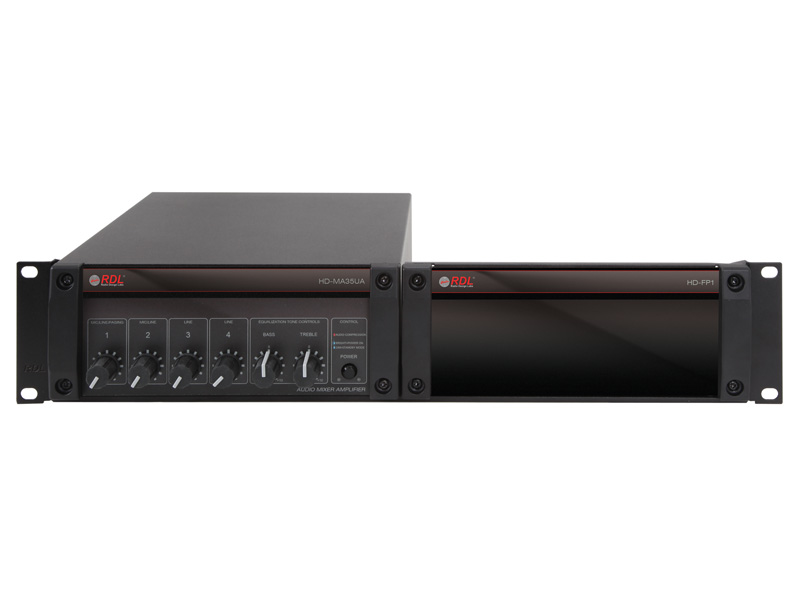

The HD-RA2 may also be used with HD Series filler panels. That compatibility supports rack layouts that combine a single HD Series product with matching filler-panel components. Filler panels are not identified as included with the adapter and should be selected separately when required by the planned configuration.

Why Choose This Model

The HD-RA2 provides three clearly defined characteristics: it mounts one HD Series product, fits a 19-inch rack, and occupies two rack units. These details make it possible to determine rack compatibility and space requirements before installation. For buyers working with an RDL HD Series product, the adapter provides a model-specific approach to placing that product within a conventional rack format.

Construction is all steel. This material specification distinguishes the HD-RA2 from adapters whose construction material is unspecified. Its narrowly defined capacity also removes ambiguity during system planning: one HD Series product is supported per adapter, and two rack units must be reserved.

Installation and Integration

Before integrating the HD-RA2, confirm that the target enclosure is a 19-inch rack and that two rack units are available. The adapter is intended to hold one HD Series product, so the rack plan should account for that single-product capacity. If the intended layout uses HD Series filler panels, those panels may be incorporated with the HD-RA2 according to the requirements of the configuration.

The supplied information does not specify mounting hardware, product dimensions, or installation tools. Those details should therefore be verified from the HD-RA2 specification sheet before beginning installation. A PDF specification sheet is identified in the source documentation. The available data also does not list any included accessories, so no additional components should be assumed to ship with the adapter.

Performance Highlights

• Mounts one HD Series product in a 19-inch rack.
• Uses two rack units of vertical rack space.
• May be combined with HD Series filler panels.
• Features all-steel construction.
• Model and manufacturer part number: HD-RA2.

The HD-RA2 is a rack-mounting component, and the supplied specifications focus on mechanical integration rather than audio, video, networking, or power performance. No electrical connections, signal-processing functions, power requirements, or operating controls are identified in the product data.

What Makes It Different

This model is specifically described as an HD Series rack adapter rather than a general-purpose shelf or unspecified mounting panel. Its application is precise: one HD Series product in a 19-inch rack, using two rack units. Compatibility with HD Series filler panels provides an additional configuration option while retaining the same rack format.

The product data also identifies a cardboard-box package, a shipping weight of 4.4 pounds, and tariff code 8543.70.9860. The listed shipping weight refers to the packaged shipment and should not be interpreted as the standalone weight of the adapter. High-resolution product imagery is identified in TIF format, while the specification sheet is supplied in PDF format.

Final Assessment

The RDL HD-RA2 is a clearly specified choice for mounting one HD Series product in a 19-inch equipment rack. Its two-RU requirement, all-steel construction, and stated compatibility with HD Series filler panels provide the essential details needed for rack planning. Select this model when the installation calls for the HD-RA2 form factor and sufficient two-RU rack space is available.

Because dimensions, standalone weight, included hardware, and warranty information are not provided in the source data, those items should be confirmed through the available specification sheet when they are important to the installation.
