Intercom Amplifier

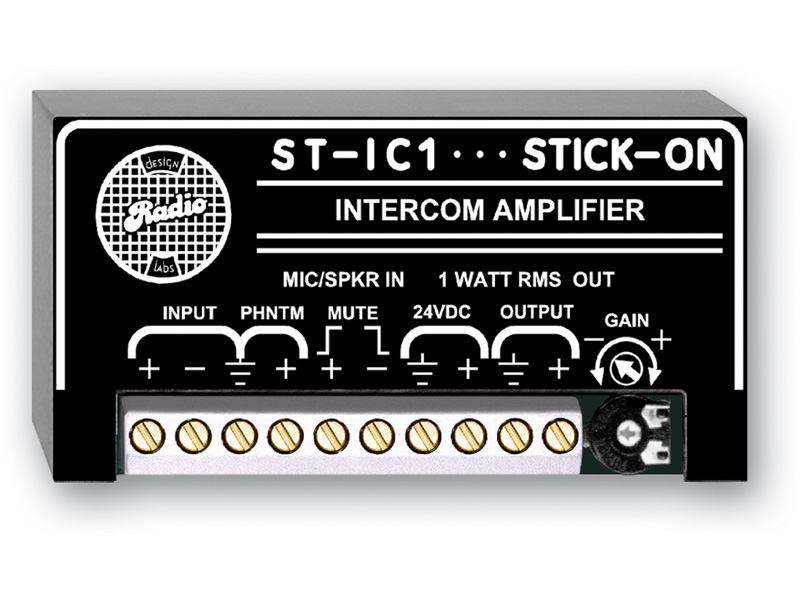

The RDL ST-IC1 is an intercom amplifier designed around push-to-talk operation. It accepts either a microphone or speaker input, works with 8 Ω or 45 Ω speakers, and provides a bidirectional communication option. Its audio path is intentionally limited to voice frequencies: 300 Hz to 4 kHz within ±2 dB, filtered for voice-band intelligibility. Adjustable gain from OFF to 70 dB supports setup across different source conditions, while the amplifier delivers 1 W RMS in normal operation and up to 1.5 W RMS before clipping.

Ideal Use Cases

The ST-IC1 is suited to intercom stations where an operator needs direct push-to-talk control and clear speech rather than full-range program audio. Its microphone-or-speaker input flexibility supports systems built around either source type. Compatibility with 8 Ω or 45 Ω speakers allows it to fit more than one speaker arrangement. The bidirectional communication option is useful when the design calls for conversation in both directions. Two mute inputs also make the unit relevant to installations that need externally triggered control of the audio path.

Why Choose This Model

Choose this model when intelligible voice handling, adjustable level, and defined muting behavior matter. The balanced input is rated above 600 Ω, and the gain control spans OFF through 70 dB. At 1 kHz, THD+N is specified below 1%, referred to 1 W at 50 dB gain. Mute attenuation exceeds 115 dB at 1 kHz, helping create a decisive mute state. Muting is solid-state, with no relay contacts used, and the listed mute release delay is 15 ms. These specifications make its behavior easier to account for during system design.

Installation and Integration

Integration requires a ground-referenced 24 Vdc supply capable of 175 mA. The power supply is not included; the listed recommendations are the PS-24AS for the USA and PS-24AX for international use. Observe the stated ambient operating range of 0°C to 40°C. Connect the selected microphone or speaker source to the balanced input, match the system to an 8 Ω or 45 Ω speaker, and adjust gain for the required level. The two mute inputs use different transitions: one triggers on a high-to-low transition at 2 mA with a 15 V pullup, while the other triggers on a low-to-high transition at 0.1 mA.

Performance Highlights

The amplifier’s operating output is 1 W RMS, with a listed maximum of 1.5 W RMS before clipping. Its 300 Hz to 4 kHz response prioritizes the speech band instead of broad-band reproduction. This filtering directly aligns the unit with voice communication. The adjustable gain range lets the installer move from OFF up to 70 dB. Residual noise is specified as < 75 dB for the unmuted output below 1 W at a 60 dB gain setting. Together, the output, response, gain, distortion, and mute figures provide concrete benchmarks for commissioning and level setting.

What Makes It Different

The defining feature is the combination of push-to-talk intercom operation with a choice of microphone or speaker input and support for two speaker impedances. That configuration is paired with an optional bidirectional communication mode. The dual mute inputs add two trigger behaviors, and solid-state switching avoids relay contacts in the mute path. These are focused controls for a voice-band intercom rather than features intended for full-range program audio. The availability of a PDF datasheet, engineering functional block CAD data, and front and end panel diagrams supports documentation and integration work.

Final Assessment

The ST-IC1 is a focused choice for an intercom design that needs push-to-talk control, mic or speaker input flexibility, and 8 Ω or 45 Ω speaker support. Its 1 W RMS operating output, 70 dB adjustable gain range, voice-focused frequency response, and specified mute attenuation define its role clearly. Power and environmental requirements are equally explicit: ground-referenced 24 Vdc at 175 mA and operation from 0°C to 40°C. It combines defined voice-band performance, two mute controls, and an option for bidirectional communication in one intercom electronics model.
