40"-42" Menu Board WM

Ideal Use Cases

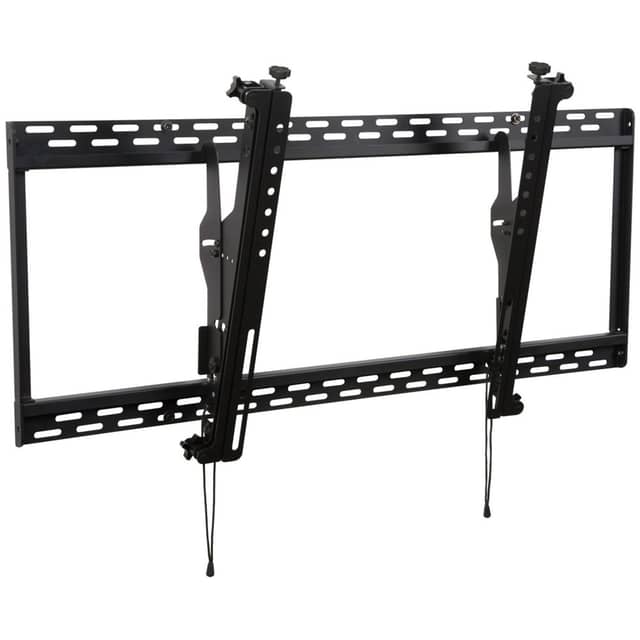

The Peerless-AV SmartMount DS-MBZ642L is designed for indoor digital menu board installations using three 40- to 42-inch displays in landscape orientation. It is particularly suited to quick service restaurant menu boards, where a continuous mounting surface and consistent display alignment are essential to the presentation. The wall-mountable design supports menu board displays and has a black, flat-matte finish that keeps the mounting system visually restrained behind the screens.

Why Choose This Model

This model provides several adjustment points for aligning a multi-display menu board. Tool-less height adjustment allows the vertical position to be fine-tuned without tools. Four-corner depth adjustment helps compensate for wall imperfections and lets installers refine the position of each display relative to the others. Continuous and fixed tilt options allow the displays to be placed at the same viewing angle, with a listed maximum tilt angle of 15 degrees. Together, these features support a uniform three-display installation rather than leaving alignment dependent solely on the wall surface.

Installation and Integration

The DS-MBZ642L is an indoor wall mount with a universal mounting-pattern compatibility type and VESA compatibility. The supplied specifications list a minimum mounting pattern of 100 x 100 and a mounting pattern of 880 x 400. It supports three displays measuring from 40 to 42 inches and has a maximum load capacity of 100 lb. The complete mount measures 36.23 inches wide, 19.48 inches high, and 3.09 inches deep.

A built-in kickstand feature holds the bottom of the display away from the wall while cable connections are being made. This provides access behind the screen during installation and is designed to reduce the time and cost associated with connecting cables. Cable management is also included among the mount functions. Assembly is required, and the packaged quantity is one unit.

Performance Highlights

• Supports three 40- to 42-inch menu board displays in landscape orientation.
• Provides a maximum load capacity of 100 lb.
• Offers tool-less height adjustment for vertical alignment.
• Uses four-corner depth adjustment to address wall imperfections and support precise fine-tuning.
• Includes continuous and fixed tilt options with a 15-degree maximum tilt angle.
• Supports universal and VESA-compatible mounting patterns.
• Includes a kickstand for cable-connection access and integrated cable management.
• Features tamper-resistant and theft-resistant durability characteristics.

The mount is TAA compliant and carries RoHS, TAA, and VESA certifications and standards. Its environmental compliance is identified as Restriction of Hazardous Substances, or RoHS. Peerless-AV backs the model with a five-year limited warranty.

What Makes It Different

The distinguishing feature of the DS-MBZ642L is its combination of height, depth, and tilt control for a three-display menu board. Height can be adjusted without tools, while independent adjustment at four depth points helps bring display faces into alignment when the mounting wall is not perfectly even. The continuous and fixed tilt choices make it easier to maintain one angle across the full display arrangement. During connection work, the kickstand keeps the lower edge of the display away from the wall, preserving access to the cable area without requiring the display to remain flush against the mounting surface.

Its flat-matte black finish, indoor wall-mount form factor, and landscape configuration are specifically aligned with digital menu board applications. The listed tamper-resistant and theft-resistant construction characteristics further support installations in commercial environments.

Final Assessment

The Peerless-AV SmartMount DS-MBZ642L is a focused mounting solution for indoor, three-display landscape menu boards using 40- to 42-inch screens. Its 100 lb maximum load capacity, VESA compatibility, tool-less height control, four-corner depth adjustment, tilt capability, cable management, and service-access kickstand address both display alignment and installation access. For systems matching its screen-size, load, orientation, and mounting-pattern specifications, it provides a purpose-built foundation backed by a five-year limited warranty.
