Ceiling Mounted Menu Board 2x1, 46-48" Displays

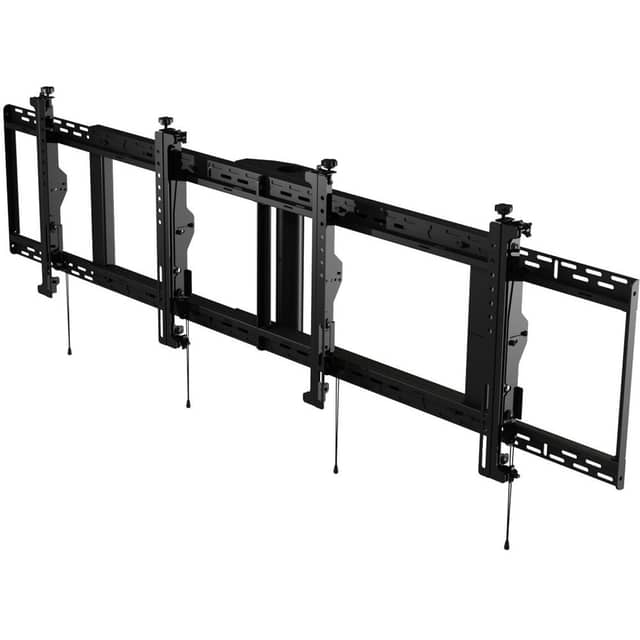

The Peerless-AV SmartMount DS-MBZ947L-2X1 is an indoor ceiling-mount solution for two 46- to 48-inch menu board displays arranged in a landscape 2×1 configuration. Designed for quick service restaurant applications, it combines a 200 lb maximum load capacity with tool-less 8-point adjustment, allowing both displays to be positioned on the same plane for precise alignment.

Ideal Use Cases

This model is purpose-built for indoor quick service restaurant menu boards that require two landscape displays mounted together. Its 78.60-inch width accommodates a two-display presentation while its connected mounting structure helps create a seamless surface. The system is appropriate when matching screen position and tilt across both displays is essential to the finished installation. Support for 46- to 48-inch screens gives integrators a clearly defined display-size range for planning.

Why Choose This Model

The DS-MBZ947L-2X1 provides the adjustment needed to correct small differences between installed displays. Its tool-less 8-point adjustment helps place both screens on the same plane, while continuous and fixed tilt options allow the displays to be set at a consistent angle. The adjustable tilt range extends from 0 to 15 degrees. Quick-connect adaptor rails attach to the support frame with an automatic latch, simplifying attachment during setup. The mount also has a tamper-resistant design and includes security hardware.

Installation and Integration

The universal mounting system is VESA compatible, with a listed 600 x 400 mounting pattern and a minimum mounting pattern of 100 x 100. Display mounting hardware, adaptor rails, a mount frame, security hardware, and the DS-MBZ947L-2X1 ceiling mount are included. Assembly is required. The supplied quick-connect rails are designed to attach rapidly to the support frame, while the automatic latch helps secure them in position.

For suspension-column planning, the listed minimum compatible fixed column is EXT018. The compatible adjustable column is ADD0203, which adjusts to a minimum of 31 inches. Confirm the selected displays fall within the stated 46- to 48-inch size range and that the completed installation remains within the mount’s 200 lb maximum load capacity.

Performance Highlights

The mount measures 78.60 inches wide, 19.49 inches high, and 7.47 inches deep, with an approximate weight of 50.10 lb. Its black matte powder-coated finish provides a consistent appearance for indoor menu board installations. The product is identified as TAA compliant, VESA compatible, and UL certified, with RoHS environmental compliance. It is manufactured in the United States and carries a five-year limited warranty.

What Makes It Different

The defining feature of this model is the combination of two-display alignment and tool-less adjustment. Rather than relying only on the initial frame position, the 8-point adjustment system provides control for bringing both display faces onto the same plane. Matching tilt options further support a uniform presentation across the complete 2×1 layout. Quick-connect adaptor rails with an automatic latch address the attachment process, while included display mounting and security hardware support installation without requiring those hardware categories to be sourced separately.

Final Assessment

The Peerless-AV DS-MBZ947L-2X1 is a focused mounting solution for an indoor, two-screen QSR menu board. Its landscape 2×1 format, 46- to 48-inch display support, 200 lb load capacity, 0- to 15-degree tilt, and tool-less 8-point alignment provide concrete parameters for system design. Universal VESA compatibility, quick-connect rails, a tamper-resistant construction, included mounting hardware, and a five-year warranty complete the package.
