Ceiling Mounted Menu Board 3x1, 40-42" Displays

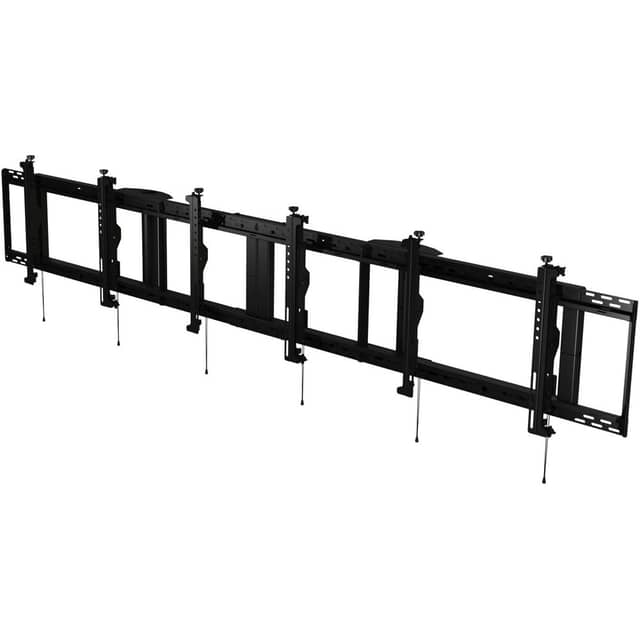

The Peerless-AV SmartMount DS-MBZ942L-3X1 is an indoor ceiling mount designed to arrange three 40- to 42-inch displays in a landscape 3×1 digital menu board. With a 300 lb maximum load capacity, universal mounting compatibility and tool-less 8-point adjustment, it provides the alignment controls needed to position all three displays on the same plane. Its black, matte powder-coated construction measures 105 inches wide, 19.49 inches high and 7.47 inches deep.

Ideal Use Cases

This model is intended for quick-service restaurant installations that require three menu board displays mounted in one horizontal row. The ceiling-mountable form factor is suited to indoor locations where a suspended display configuration is preferred. Support for 40- to 42-inch screens provides a clearly defined display range, while the landscape orientation creates a wide presentation surface for menu content. Its 3×1 configuration also gives installers a purpose-built structure instead of requiring three unrelated mounting assemblies.

Why Choose This Model

The DS-MBZ942L-3X1 combines multi-display support with controls intended to simplify consistent positioning. Its tool-less 8-point adjustment enables each display to be positioned on the same plane, helping create uniform alignment across the complete menu board. Continuous and fixed tilt options allow the displays to be set at the same angle. The adjustable tilt range extends from 0 to 15 degrees. Quick-connect adaptor rails attach to the support frame with an auto-latch mechanism, easing attachment during setup.

Installation and Integration

The mount supports universal mounting patterns and is VESA compatible. Its specified mounting pattern is 600 x 400, with a minimum mounting pattern of 100 x 100. Assembly is required. The listed package contents include the DS-MBZ942L-3X1 ceiling mount, mount frame, adaptor rails, display mounting hardware and security hardware. For suspension planning, the minimum compatible fixed column is EXT018. The compatible adjustable column is ADD0203, which adjusts to a minimum of 31 inches. These stated column requirements should be considered alongside the 105-inch overall width and the combined weight of the selected displays.

Performance Highlights

• Supports three displays in a landscape 3×1 arrangement.
• Compatible with screen sizes from 40 to 42 inches.
• Rated for a maximum load capacity of 300 lb.
• Provides tool-less 8-point adjustment for display-plane alignment.
• Offers adjustable tilt from 0 to 15 degrees.
• Uses quick-connect adaptor rails with an auto latch.
• Supports VESA mounting and universal mount patterns.

The combination of plane adjustment and synchronized tilt control addresses two important requirements in a multi-screen menu board: keeping adjacent displays aligned and maintaining a consistent viewing angle across the row.

What Makes It Different

This model is configured specifically for a three-display menu board rather than a single screen. Its connected support structure, quick-connect rails and individual adjustment capability work together as one mounting system. The black matte powder-coated finish gives the assembly a consistent appearance, while the supplied security hardware complements its tamper-resistant and theft-resistant characteristics. The mount is TAA compliant, manufactured in the United States and identified as meeting RoHS, TAA and VESA standards.

Final Assessment

The Peerless-AV DS-MBZ942L-3X1 is a focused mounting solution for indoor QSR menu boards using three 40- to 42-inch landscape displays. Its 300 lb capacity, VESA compatibility, 8-point adjustment, 15-degree maximum tilt and quick-connect adaptor rails provide concrete installation and alignment capabilities. A five-year limited warranty supports the finished system after installation.
