Ceiling Mounted Menu Board 3x1, 46-48" Displays

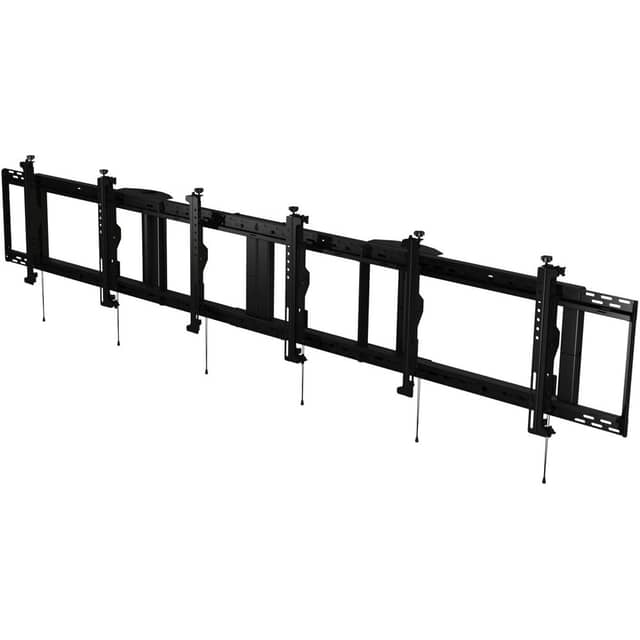

The Peerless-AV SmartMount DS-MBZ947L-3X1 is an indoor ceiling mount designed to arrange three 46-inch to 48-inch displays in a landscape 3×1 digital menu board. Its 116.25-inch-wide mounting surface supports a maximum load of 300 lb and accommodates VESA mounting patterns from 100 x 100 through 600 x 400. Tool-less 8-point adjustment helps position all three displays on the same plane, while adjustable tilt supports consistent screen alignment across the complete menu board.

Ideal Use Cases

This model is intended for indoor quick serve restaurant applications that require three adjacent displays for digital menus, promotional content, pricing, or service information. The landscape configuration is suited to installations where content needs to extend horizontally across a counter or customer-facing area. Its ceiling-mountable design provides an alternative when the available installation surface or planned display position calls for overhead support.

The mount is particularly appropriate for installations using three displays of the same supported size and requiring a unified mounting structure. The black matte powder-coated finish gives the assembly a consistent appearance, while tamper-resistant and theft-resistant construction supports use in customer-accessible commercial environments.

Why Choose This Model

The DS-MBZ947L-3X1 combines a three-display support frame with alignment features intended to simplify menu board setup. Its tool-less 8-point adjustment allows installers to position the displays on the same plane without relying on tool-based changes for every alignment correction. Continuous and fixed tilt options allow the displays to be set at the same viewing angle, with an adjustable tilt range listed from 0 to 15 degrees.

Quick-connect adaptor rails attach to the support frame using an auto-latch mechanism. This connection system is designed to ease setup while creating a coordinated mounting surface for the complete 3×1 array. Universal mount-pattern compatibility and VESA support provide flexibility within the specified 100 x 100 to 600 x 400 mounting-pattern range.

Installation and Integration

Assembly is required. The package includes the DS-MBZ947L-3X1 ceiling mount, mount frame, adaptor rails, display mounting hardware, and security hardware. The frame measures 116.25 inches wide, 19.49 inches high, and 7.47 inches deep. Before installation, the three selected displays should be confirmed to fall within the supported 46-inch to 48-inch range, the stated VESA pattern limits, and the mount’s total 300 lb maximum load capacity.

The listed minimum compatible fixed column is the EXT018. The listed adjustable-column option is the ADD0203, which adjusts to a minimum length of 31 inches. These column references allow the mounting system to be matched to the required ceiling position and installation height. Display mounting and security hardware are supplied, and the mount’s adaptor rails connect to the frame through the auto-latch system.

Performance Highlights

The primary performance benefit is precise physical alignment across three displays. Tool-less 8-point adjustment supports plane correction, while the tilt system allows the screens to be aligned at a common angle. The mount carries up to 300 lb and supports three landscape-oriented displays, giving the installation a single coordinated structure rather than separate mounting assemblies.

Its supported certifications and standards include RoHS, TAA, and VESA. The mount is TAA compliant and manufactured in the United States. A five-year limited warranty is provided.

What Makes It Different

This model is configured specifically for a landscape 3×1 menu board rather than a single display. The combination of three-display support, tool-less 8-point adjustment, shared tilt positioning, quick-connect adaptor rails, and an auto latch addresses the alignment and setup requirements of a multi-screen installation. Security hardware and tamper-resistant, theft-resistant construction further distinguish it for indoor QSR environments.

Its wide mounting frame maintains the three-display arrangement as one system, while the specified fixed and adjustable column compatibility supports different overhead installation requirements.

Final Assessment

The Peerless-AV DS-MBZ947L-3X1 is a focused mounting solution for indoor QSR menu boards using three 46-inch to 48-inch displays in landscape orientation. It is best matched to projects that need a 3×1 ceiling-mounted layout, up to 300 lb of capacity, universal VESA compatibility, coordinated tilt, and detailed display-plane adjustment. Included mounting and security hardware, quick-connect rails, TAA compliance, and a five-year limited warranty complete the package.
