Modular Back-to-Back Video Wall Pedestal (2X2, each side)

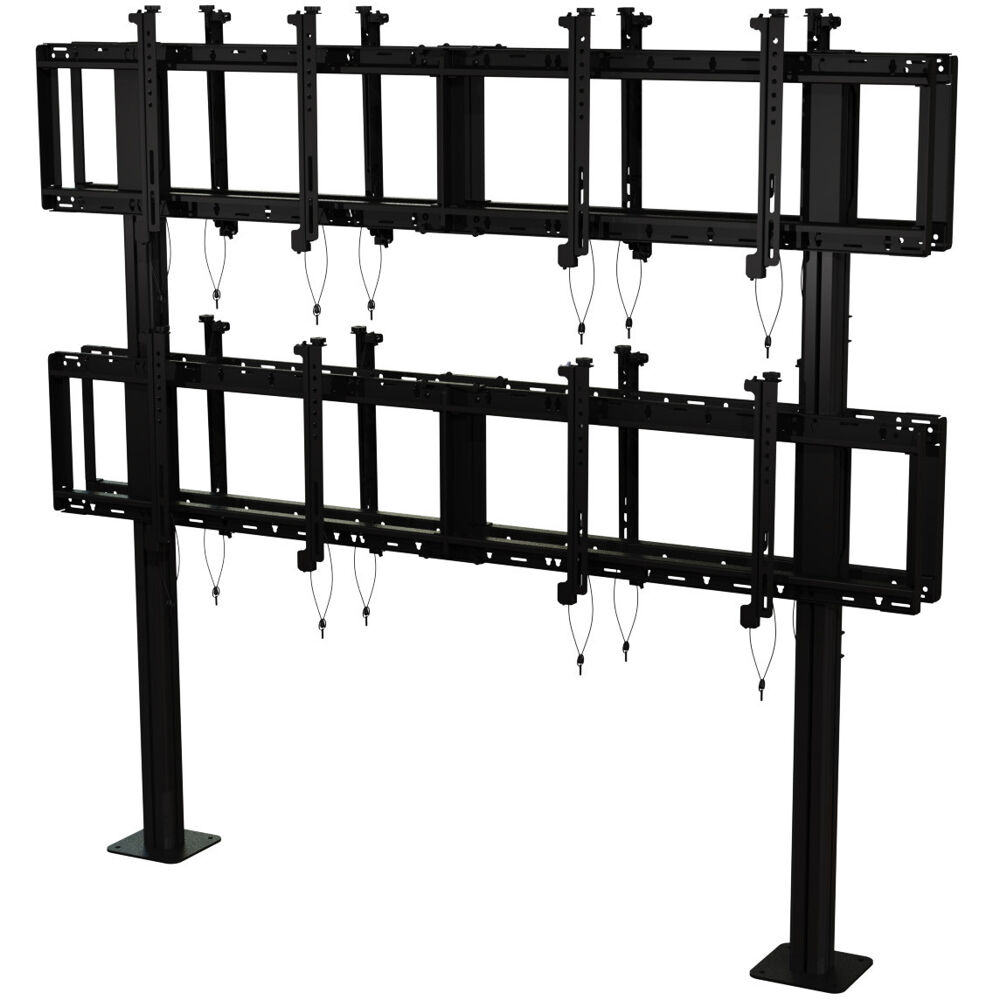

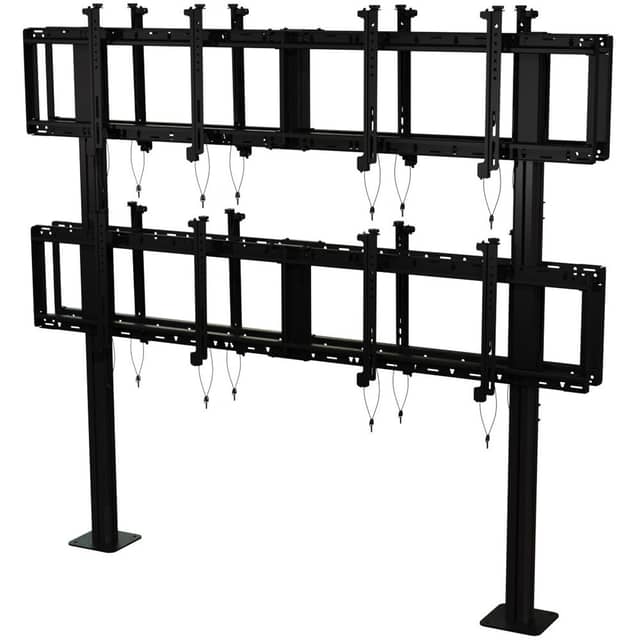

The Peerless-AV SmartMount DS-S560-B2X2 is a back-to-back modular pedestal mount designed for a 2×2 video wall configuration. Published specifications identify support for four displays measuring 46 to 60 inches, with a load capacity of 100 lb per display and an 800 lb maximum load capacity. The black, powder-coated aluminum structure measures 75.35 inches high by 80.61 inches wide by 10.35 inches deep. Tool-less micro-adjustment and built-in cable management support precise alignment and an organized finished installation.

Ideal Use Cases

This floor-standing pedestal is intended for video walls, display screens, and digital signage. Its back-to-back design suits applications requiring display visibility from opposing directions, while the bolt-down mounting function provides a fixed installation format. Peerless-AV specifically identifies retail and public transportation environments as potential applications. The configuration is also appropriate wherever wall or ceiling support is unavailable and the pedestal can be mounted to a suitable concrete structure.

Why Choose This Model

The DS-S560-B2X2 combines display support, alignment controls, and cable routing in one pedestal system. Tool-less micro-adjustment is designed to simplify the process of achieving accurate display alignment without requiring extra tools during adjustment. Built-in cable management helps conceal and organize connected cabling, reducing visible clutter around the video wall. The aluminum frame and powder-coated finish provide the specified structural materials and a uniform black appearance suitable for public-facing digital signage installations.

Its published compatibility covers 46- to 60-inch displays, giving integrators a defined screen-size range for planning. The mount is VESA compatible, and the product data lists a mounting-pattern entry of 200 x 200600 x 400. Display adaptors and hardware are included with the pedestal.

Installation and Integration

The DS-S560-B2X2 has a floor-standing form factor and uses a pedestal bolt-down mounting method. Peerless-AV states that the mount can be secured to concrete structures without additional wall or ceiling supports, providing an installation path for open areas where conventional wall mounting is not suitable. Assembly is required, and the package includes the SmartMount back-to-back modular video wall pedestal, display adaptors, and hardware.

For integration planning, the assembled structure measures 75.35 inches in height, 80.61 inches in width, and 10.35 inches in depth. Display selection should remain within the specified 46- to 60-inch range and the listed load limits. Built-in cable management provides a defined route for organizing cables after the displays have been positioned and aligned.

Performance Highlights

Performance for this pedestal centers on capacity, positioning, and installation control. The source specifications list support for four displays, a maximum load capacity of 800 lb, and a load capacity of 100 lb per display. Tool-less micro-adjustment supports the fine positioning needed to create consistent alignment across the 2×2 configuration. The aluminum construction provides the specified frame material, while the black powder-coated finish completes the system with a consistent exterior surface.

The pedestal is listed for video wall, display screen, and digital signage use. Its secure, adjustable design and cable-management feature address the physical requirements of maintaining an orderly multi-display presentation.

What Makes It Different

The defining feature of the DS-S560-B2X2 is its combination of a back-to-back modular layout and a bolt-down floor pedestal. It does not depend on additional wall or ceiling supports when mounted to an appropriate concrete structure. Tool-less micro-adjustment distinguishes the alignment process, while integrated cable management keeps the supporting infrastructure within the mount rather than exposed around the display array.

The model is TAA compliant and is listed with RoHS, TAA, and VESA certifications and standards. Environmental compliance is identified as Restriction of Hazardous Substances compliance. Peerless-AV also covers the pedestal with a five-year limited warranty.

Final Assessment

The Peerless-AV SmartMount DS-S560-B2X2 is a purpose-built option for a fixed, back-to-back 2×2 video wall using 46- to 60-inch displays. Its bolt-down pedestal format, aluminum construction, tool-less micro-adjustment, display adaptors, included hardware, and integrated cable management bring the essential mounting and alignment functions into a single system. For retail, transportation, or other digital signage installations built around the published size and load requirements, it offers a clearly specified floor-mounted foundation with TAA and RoHS compliance.
