Modular Video Wall Pedestal (2X2)

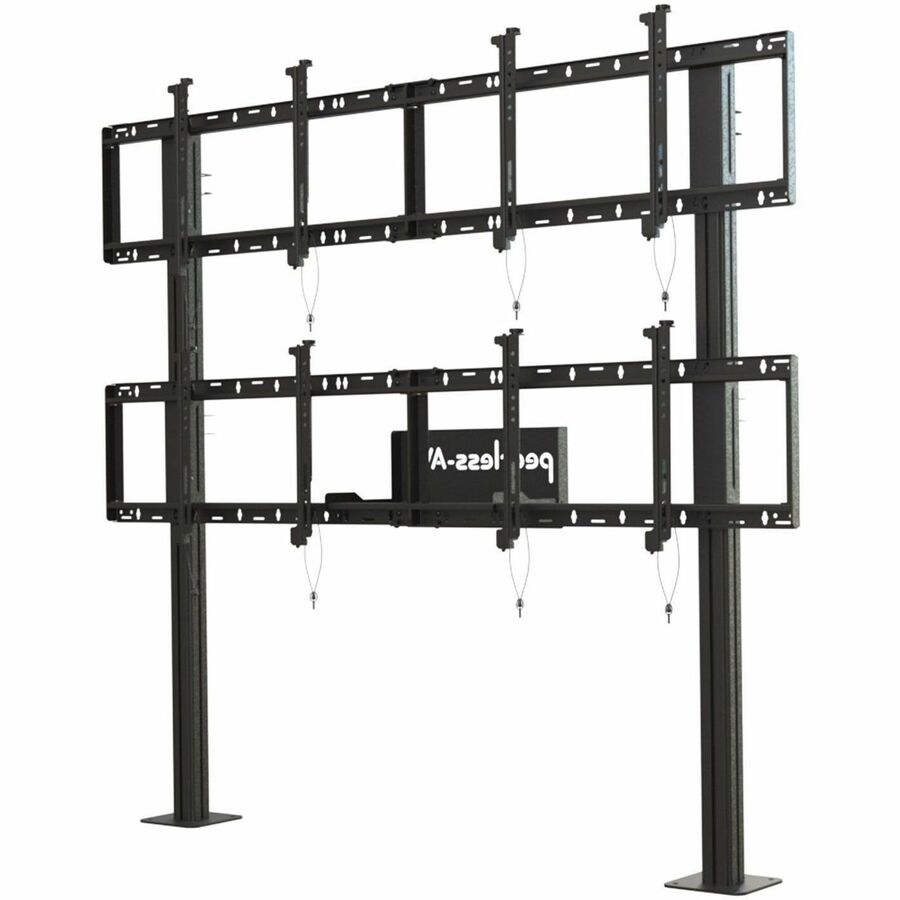

The Peerless-AV DS-S560-2X2 Modular Video Wall Pedestal Mount is built for a four-display, 2×2 video wall using 46-inch to 60-inch displays. With a 500 lb maximum load capacity, universal VESA compatibility, tool-less micro-adjustment, built-in cable management, and media storage, it combines alignment, component organization, and a professional presentation in one indoor pedestal system. Its black powder-coated aluminum construction provides a substantial base for retail video wall applications.

Ideal Use Cases

Designed specifically for indoor retail environments, this pedestal is a strong fit for four-screen video wall installations that need a 2×2 arrangement. It supports four displays within the stated 46-inch to 60-inch screen-size range while keeping the overall presentation organized. The pedestal format is useful where a centralized structure better suits the installation plan. Its black finish also keeps the supporting hardware visually consistent behind the display array.

Why Choose This Model

The DS-S560-2X2 brings the essential support functions for a four-display wall into a single specified configuration. Tool-less micro-adjustment is the defining setup feature: installers can refine display alignment without adding adjustment tools to the process. Integrated cable management organizes wiring within the installation, while built-in media storage gives components a central location. Together, these features reduce visible clutter and help the finished wall look deliberate and professional. The mount is also VESA compatible, with a minimum mounting pattern of 200 x 200 and a maximum of 600 x 400, making it suitable for the documented range of compatible displays.

Installation and Integration

Assembly is required. The package includes the modular video wall pedestal mount, stand, display adaptors, and hardware. Before installation, confirm that all four displays fall between 46 inches and 60 inches, that their mounting patterns are compatible with the stated 200 x 200 minimum and 600 x 400 maximum, and that the combined load does not exceed 500 lb. The adjustable mounting system then allows the displays to be aligned as a 2×2 array. Cable management and media storage can be incorporated during assembly to keep components centralized. For added stability, the pedestal includes a bolt-down mounting function and can be mounted to concrete structures.

Performance Highlights

This pedestal measures 80.59 inches wide, 75.44 inches high, and 13.36 inches deep, with an approximate weight of 127 lb. Its aluminum construction is finished in black powder coating. The system supports four displays and carries a stated maximum load of 500 lb, providing the capacity needed for the specified screen range. Alignment is handled through tool-less micro-adjustment rather than fixed positioning alone, helping installers bring screen edges into a cleaner visual grid. Because cable management and media storage are built into the structure, presentation quality is addressed alongside physical support and adjustment.

What Makes It Different

Unlike a basic stand intended for one display, the DS-S560-2X2 is purpose-built as a complete 2×2 pedestal configuration. Its distinction lies in combining four-display support, fine alignment control, component storage, cable organization, and bolt-down capability within one aluminum system. The mount is listed as universal and VESA compatible, and it is documented to meet RoHS, TAA, and VESA standards. It is TAA compliant, manufactured in the United States, and covered by a five-year limited warranty. These documented attributes make comparison straightforward when sourcing a pedestal for a specified indoor retail video wall.

Final Assessment

For projects that call for four 46-inch to 60-inch displays in a 2×2 layout, the Peerless-AV DS-S560-2X2 offers a clearly defined support platform with a 500 lb maximum capacity. Its value is concentrated in the installation details: tool-less micro-adjustment for alignment, cable management for a cleaner appearance, built-in storage for media components, and bolt-down support when added stability is required. The black powder-coated aluminum construction, universal VESA compatibility, included adaptors and hardware, and five-year limited warranty round out a focused pedestal solution for indoor retail use.
