Modular Video Wall Pedestal (3X2)

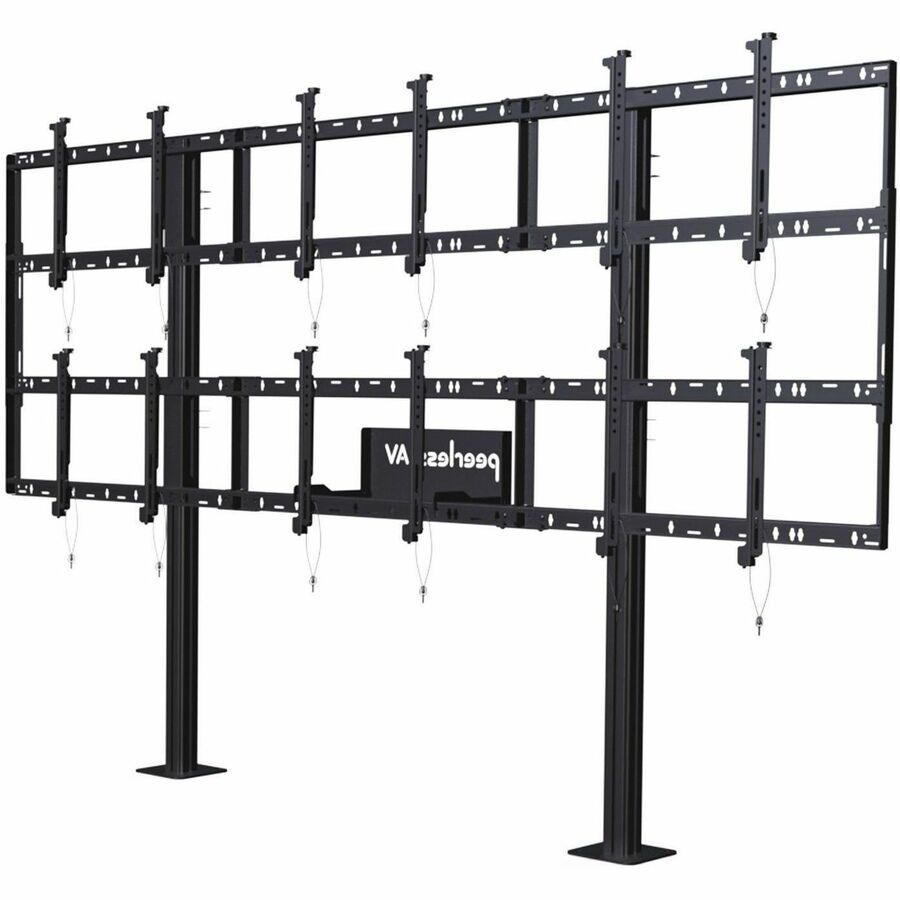

The Peerless-AV SmartMount DS-S555-3X2 is a modular video wall pedestal mount built for a 3×2 configuration of six 46- to 55-inch displays. Its floor-standing aluminum frame uses a pedestal bolt-down design and carries up to 600 lb overall, with a 100 lb limit for each display. A black powder-coated finish, integrated component storage, and cable-management provisions give the completed installation a clean, coordinated appearance.

Ideal Use Cases

This model fits installations centered on a fixed six-screen video wall rather than a single display or mobile stand. It is suited to applications that require a 3×2 display-screen layout, floor placement, and a defined bolt-down mounting method. Because the mount supports screens within the stated 46- to 55-inch range and up to 100 lb each, it gives system planners clear display-selection boundaries. Its TAA-compliant status also makes it relevant where that procurement requirement applies.

Why Choose This Model

The DS-S555-3X2 brings the core support structure, display adaptors, alignment controls, cable management, and media storage into one pedestal system. Tool-less micro adjustment is designed to save time during display alignment and help installers create consistent positioning across all six screens. Built-in media storage provides a central place for components, while integrated cable management helps organize connections and reduce visible clutter. The aluminum frame and powder-coated black finish match the mount’s professional, fixed-installation purpose without adding decorative elements that compete with the video wall.

Installation and Integration

Assembly is required. The package contains one modular video wall pedestal mount for the 3×2 configuration, display adaptors, and hardware. The finished structure measures 75.44 inches high, 10.09 feet wide, and 13.36 inches deep, so the installation area should be planned around the stated footprint and width. The floor form factor uses a pedestal bolt-down mount function; Peerless-AV also identifies mounting to concrete structures as an option for added stability.

The mount is VESA compatible. Display size, weight, and mounting-interface compatibility should be checked for every panel before assembly, using the supplied product data and specification sheet. During integration, the built-in cable-management path and media-storage area can keep components centrally located. The supplied adaptors and hardware support assembly, while tool-less micro adjustment is available for final alignment after the displays are positioned.

Performance Highlights

The support ratings are explicit: six displays, 600 lb maximum total capacity, and 100 lb maximum per display. Both the per-screen and overall limits matter when selecting the display set. The 46- to 55-inch supported screen range defines the intended panel class. Once installed, tool-less micro adjustment gives the installer a direct way to refine alignment across the 3×2 array. This alignment feature, rather than an electronic image-processing function, is the mount’s primary contribution to consistent video-wall presentation.

What Makes It Different

What distinguishes this model is the combination of a complete six-display pedestal configuration and installation-focused organization. It does more than hold panels: it incorporates micro adjustment, cable management, media storage, and a shelf into the structure described in the product data. The bolt-down floor design addresses fixed placement, while both the product and frame materials are identified as aluminum. RoHS, TAA, and VESA are listed among its certifications and standards, and the product is identified as compliant with the Restriction of Hazardous Substances requirements.

Final Assessment

The DS-S555-3X2 is a focused choice for a fixed 3×2 wall using six compatible 46- to 55-inch displays. Its 600 lb system capacity, 100 lb per-display rating, tool-less alignment, component storage, and cable-management features cover the principal structural and integration needs stated for this model. Buyers should allow for required assembly, confirm each panel’s compatibility, and plan for the pedestal’s bolt-down installation. Peerless-AV backs the mount with a five-year limited warranty.
