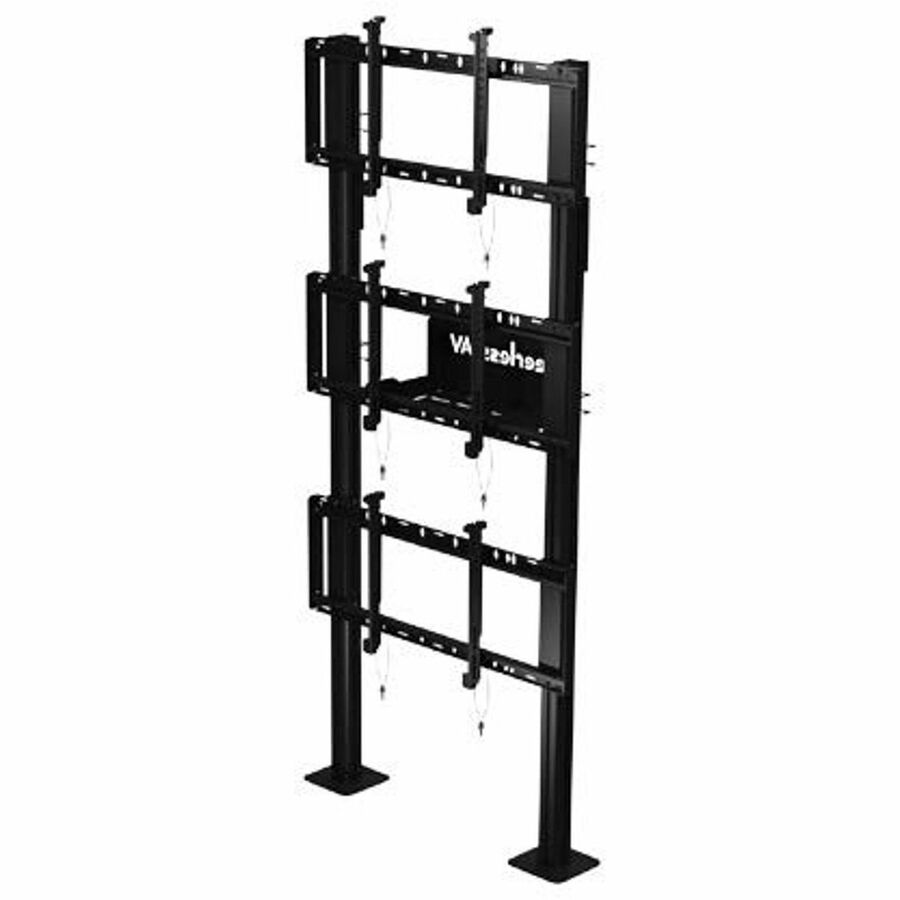

Modular Video Wall Pedestal (1X3)

The Peerless-AV SmartMount® DS-S560-1X3 is an indoor modular video wall pedestal mount designed to support three displays in a 1×3 configuration. It accommodates screen sizes from 46 to 60 inches, provides a maximum load capacity of 375 lb, and supports VESA mounting patterns from 200 x 200 through 600 x 400. Its black, powder-coated aluminum construction combines a professional appearance with practical installation and equipment-management features.

Ideal Use Cases

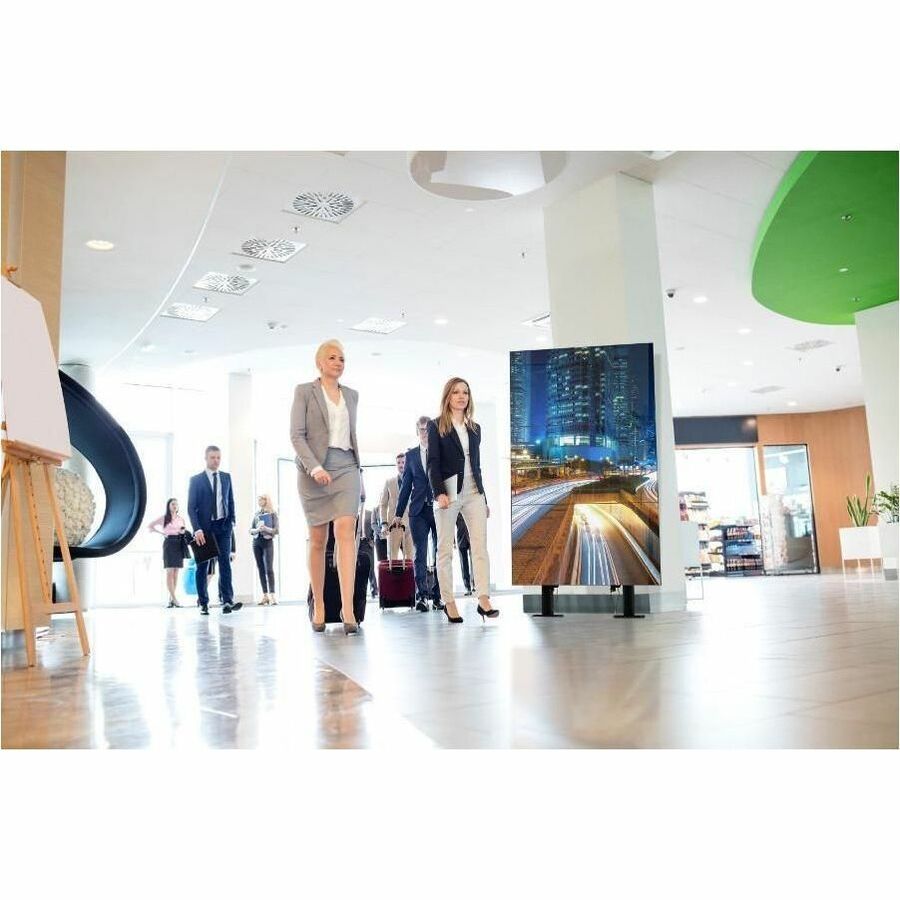

This pedestal is intended for indoor retail video wall applications requiring three displays to be presented as a coordinated 1×3 installation. It is suited to environments where display alignment, organized cabling, and a clean finished presentation are important. Built-in media storage provides a central location for associated components, while integrated cable management helps prevent exposed wiring from detracting from the display wall. The bolt-down mounting function is appropriate for installations that require the pedestal to be secured to the supporting structure.

Why Choose This Model

The DS-S560-1X3 combines support for three large-format displays with installation features intended to simplify alignment and component organization. Tool-less micro adjustment allows installers to refine the position of the displays without requiring additional adjustment tools. This is especially useful in a multi-display installation, where small positioning differences can affect the appearance of the complete video wall. Universal mounting-pattern compatibility and VESA support from 200 x 200 to 600 x 400 provide flexibility across compatible 46- to 60-inch displays.

The pedestal also addresses the equipment surrounding the displays. Built-in cable management routes wiring through the installation, while integrated media storage offers a designated place for components. Together, these features help produce the secure, professional, and clutter-free appearance described for the SmartMount system.

Installation and Integration

The mount requires assembly and uses a bolt-down installation method. Its assembled dimensions are 93.41 inches high, 41.50 inches wide, and 13.30 inches deep. Before installation, confirm that the combined display load does not exceed the published 375 lb maximum capacity and that each display falls within the supported 46- to 60-inch size range and 200 x 200 to 600 x 400 mounting-pattern range.

The package contents are identified as the modular video wall pedestal mount, stand, display adaptors, and hardware. Tool-less micro adjustment can then be used during setup to achieve accurate display alignment. Cable management and media storage are incorporated into the pedestal, allowing signal and power cabling and associated components to be organized around a central mounting structure. The product is specified for indoor use.

Performance Highlights

The DS-S560-1X3 supports three displays and carries a maximum rated load of 375 lb. Its universal mounting-pattern compatibility covers a minimum pattern of 200 x 200 and a maximum pattern of 600 x 400, with VESA compatibility explicitly specified. The aluminum structure has a black powder-coated finish, providing a consistent appearance for visible retail installations. Tool-less micro adjustment is the primary alignment feature, helping installers position the displays precisely as part of the completed 1×3 arrangement.

What Makes It Different

This model brings display support, alignment control, cabling, and component storage together in one modular pedestal. Rather than treating media components and wiring as separate installation concerns, it incorporates storage and cable-management features directly into the structure. The combination of three-display support, tool-less adjustment, and bolt-down mounting distinguishes it as a dedicated video wall solution rather than a conventional single-display pedestal.

The mount is manufactured in the United States and is listed as RoHS, TAA, and VESA compliant. It is also identified as TAA compliant and includes a five-year limited warranty.

Final Assessment

The Peerless-AV SmartMount DS-S560-1X3 is a focused mounting solution for indoor retail installations using three compatible 46- to 60-inch displays. Its 375 lb capacity, broad VESA pattern range, tool-less micro adjustment, integrated cable management, and media storage address the central requirements of a professionally organized 1×3 video wall. The powder-coated aluminum construction, bolt-down installation, stated compliance credentials, and five-year limited warranty complete a clearly specified pedestal system.
