LCD Ceil/Mt. 18"-30" Adjustable Length

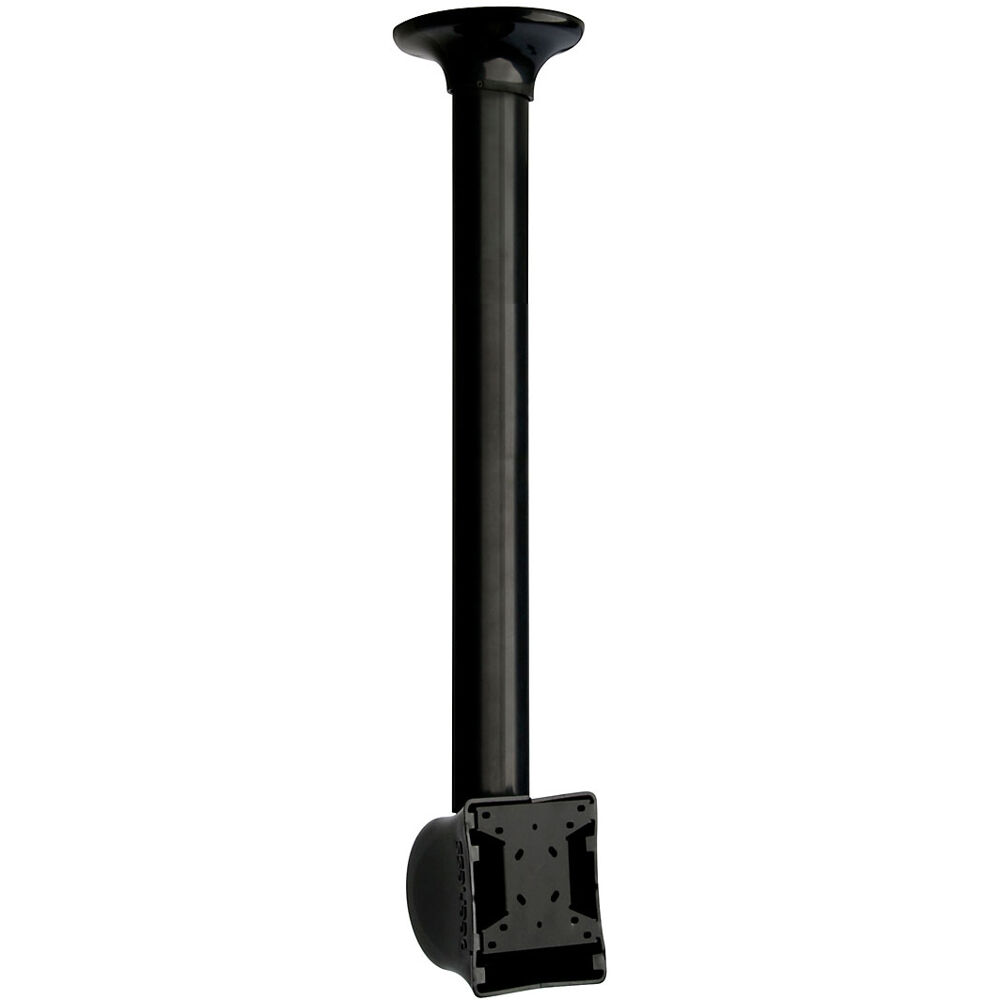

The Peerless-AV LCC-18 is a low-profile ceiling mount designed for 13-inch to 29-inch flat-panel and LCD displays weighing up to 40 lb. Its slender adjustable extension column keeps the mounting structure visually restrained while positioning the display prominently. The black, powder-coated steel construction supports portrait or landscape orientation, and the display can be installed in a standard viewing position or facing the floor.

Ideal Use Cases

This mount is suited to offices, medical settings, digital signage installations, and other rooms where a compact display needs to be suspended from the ceiling. Its ability to rotate through 360 degrees makes it useful when the viewing direction must be adjusted around the installation point. Portrait and landscape support also lets installers match the display orientation to directional messaging, informational content, or the available space.

The option to position the display facing the floor expands its usefulness beyond conventional wall-style viewing. This configuration can accommodate specialized overhead viewing applications while retaining the same low-profile ceiling-mounted form.

Why Choose This Model

The LCC-18 combines broad positioning control with a compact visual footprint. It supports displays from 13 inches through 29 inches and carries up to 40 lb. The product is described with a nominal 18-inch to 30-inch adjustable-height range, while the detailed extension measurement provided is 17.13 to 31.92 inches, or 435.10 to 810.77 mm.

A maximum swivel angle of 360 degrees allows the screen to be directed as needed after mounting. The mount also provides tilt adjustment with a stated maximum tilt angle of 20 degrees. Its dedicated VESA-compatible interface supports 75 x 75 mm and 100 x 100 mm mounting patterns.

Installation and Integration

The package includes the LCD ceiling mount, theft-resistant security fasteners, a ceiling plate for structural or wood-joist ceilings, and mounting hardware identified for wood or concrete installations. These supplied components support integration into several common ceiling environments without requiring the primary mounting hardware to be sourced separately.

Cable-management capability helps organize display cords along the mounting assembly. The manufacturer also identifies optional cable-management covers that can conceal cords behind a stylized exterior; these covers are described as optional rather than included. Before installation, the display should be checked against the supported screen-size range, 40 lb load limit, and compatible 75 x 75 mm or 100 x 100 mm VESA pattern.

Performance Highlights

• Supports 13-inch to 29-inch flat-panel and LCD displays.
• Maximum load capacity of 40 lb.
• Adjustable extension listed at 17.13 to 31.92 inches.
• Maximum 360-degree swivel for directional positioning.
• Maximum tilt angle of 20 degrees.
• Supports portrait and landscape display orientations.
• Allows standard mounting or a floor-facing display position.
• Compatible with 75 x 75 mm and 100 x 100 mm VESA patterns.

The mount itself weighs approximately 3.90 lb. Its steel structure, powder-coated black finish, and stated scratch-resistant durability are intended to support a professional-looking permanent installation.

What Makes It Different

The LCC-18 emphasizes a slender, low-profile design rather than a visually dominant support structure. This helps minimize the appearance of the extension column while preserving the screen’s presence in the room. The combination of extension, tilt, full swivel, orientation flexibility, and floor-facing installation distinguishes it from a fixed-position ceiling bracket.

The included theft-resistant security fasteners add protection at the mounting point. The product is also identified as UL Listed, TAA compliant, VESA compatible, and compliant with the Restriction of Hazardous Substances standard. Its listed country of origin is the United States.

Final Assessment

The Peerless-AV LCC-18 is a focused ceiling-mounting solution for compact displays that fall within its 13-inch to 29-inch size range and 40 lb capacity. It offers meaningful placement flexibility through its adjustable extension, 360-degree swivel, 20-degree maximum tilt, portrait or landscape orientation, and standard or floor-facing configurations. For compatible 75 x 75 mm or 100 x 100 mm displays, it provides a slim black steel mounting platform with installation hardware and theft-resistant fasteners included.
