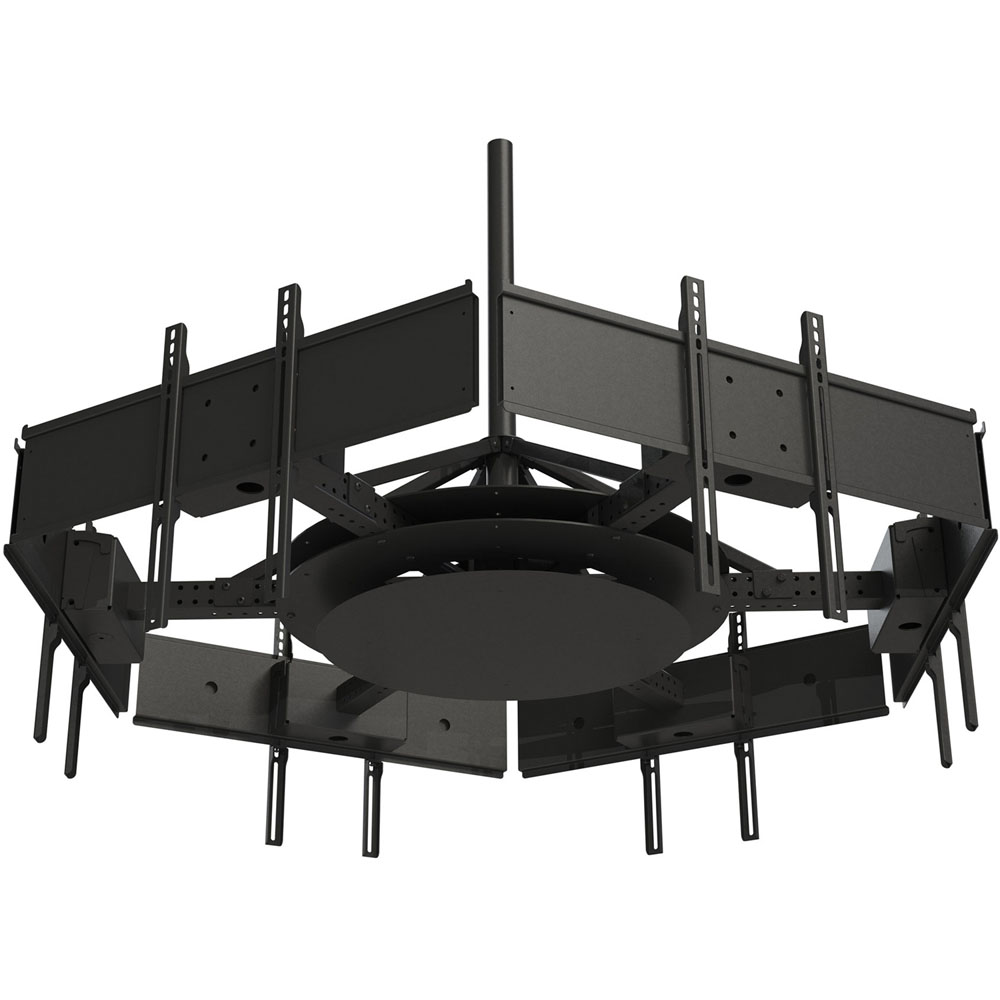

Hex Mount - Holds six displays to form a circle, with telescoping arms

Ideal Use Cases

The Peerless-AV DST942-6 is intended for indoor installations that need six displays arranged evenly around a circular ceiling-mounted structure. It supports displays from 37 to 42 inches, making it suited to spaces where visual information must be presented toward multiple viewing directions around a central area. The circular arrangement can serve viewers positioned on different sides without relying on a single forward-facing display wall.

Telescoping arms allow the spacing between displays to be adjusted for the installation. This flexibility is useful when display depth, available ceiling space, or the desired distance between screens calls for more precise positioning. The mount is finished in flat matte black to coordinate with the displays and overhead environment.

Why Choose This Model

The defining feature of the DST942-6 is its combination of six-display capacity, circular positioning, and independently adjustable arm depth. Each telescoping arm can be set to establish the required spacing between adjacent displays. Once installed, every display position offers 360-degree swivel and a tilt range from 0 to 20 degrees, allowing viewing angles to be adjusted for the room and audience position.

Published specifications list an 80 lb minimum load capacity and a 480 lb maximum load capacity. The mount is VESA compatible and uses a universal mounting pattern system. Its listed minimum mounting pattern is 100 x 100, while the specified mounting pattern is 730 x 405. These characteristics provide a clearly defined compatibility range for planning the display installation.

Installation and Integration

The DST942-6 is ceiling mountable and requires assembly. The package includes the multi-display ceiling mount, telescoping arms, a universal adapter plate, and mounting hardware. Its assembled dimensions are 21.80 inches high by 56.40 inches wide by 56.40 inches deep. Installers can adjust arm depth to establish display spacing before using the swivel and tilt adjustments to set the final viewing positions.

Before installation, each display should be checked against the supported 37- to 42-inch screen range, published load ratings, and applicable mounting pattern. The mount is specified for indoor use and has a ceiling mounting surface. Because it supports six displays and has a maximum load capacity of 480 lb, the complete installation should be planned around the listed dimensions, display compatibility, and supplied mounting components.

Cable management is integrated into the mount function. A bottom cover supports a sleek, uncluttered appearance while helping organize cables around the ceiling-mounted structure.

Performance Highlights

Each of the six display positions provides a broad range of directional adjustment. The 360-degree swivel capability allows displays to be oriented around the circular configuration, while the 0- to 20-degree tilt range enables vertical viewing-angle refinement. Combined with telescoping depth adjustment, these controls address display spacing, horizontal orientation, and tilt within one mounting system.

The structure supports six displays evenly spaced in a circle and accommodates screen sizes from 37 to 42 inches. Universal mounting pattern compatibility and the included adapter plate support integration with compatible displays, while the powder-coated flat matte finish provides a black exterior suited to visible indoor installations.

What Makes It Different

Unlike a fixed-position multi-display structure, the DST942-6 gives the installer control over the depth of each telescoping arm. This makes display-to-display spacing adjustable instead of predetermined. The circular six-screen format, full swivel capability, and adjustable tilt work together to create a ceiling-mounted arrangement that can be configured for several viewing directions.

The mount also combines positioning hardware with cable-management provisions and a bottom cover. This addresses both display placement and the appearance of the completed installation. The product is manufactured in the United States, is TAA compliant, and complies with the Restriction of Hazardous Substances standard.

Final Assessment

The Peerless-AV DST942-6 is a specialized indoor ceiling mount for six 37- to 42-inch displays. Its primary advantages are the circular display layout, adjustable telescoping arms, 360-degree swivel, 0- to 20-degree tilt, universal VESA compatibility, and maximum 480 lb load capacity. For installations that meet its screen-size, load, mounting-pattern, and ceiling requirements, it offers a coordinated way to position six displays while managing spacing, viewing angles, and cables. A five-year limited warranty is included.
