Screen size (diagonal) (inch) 74.5 inch
Screen size (diagonal) (mm) 1892.7 mm
Aspect Ratio 16:9
Panel Type IPS / Edge LED
Effective display area (W x H) (mm) 1649.6 mm / 927.9 mm
Effective display area (W x H) (inch) 64.94" / 36.53"
Resolution 3840 x 2160
Contrast Ratio 1200:1
Response Time 8.0 ms (G to G)
Viewing angle [(T/B)/(L/R)] 178 / 178 (CR10)
Power Requirements AC 110 - 240 V 50 Hz / 60 Hz
Terminals | HDMI IN HDMI Type A Connector x 2(Compatible with HDCP 2.2)AUDIO: Linear PCM (Sampling frequency48 kHz/44.1 kHz/32 kHz)
Terminals | DVI-D IN/AUDIO IN (L/R) DVI-D 24-pin x 1 (Compatible with HDCP 1.1) Compliance with DVI Revision 1.0
Terminals | PC IN/AUDIO IN (L/R) Mini D-Sub 15-pin (DDC2B) x 1 Y/GPB/CB/BPR/CR/RHD/VD: with sync 1.0 V [p-p] (75 ): without sync 0.7 V [p-p] (75 ): without sync 0.7 V [p-p] (75 ): without sync 0.7 V [p-p] (75 ): HD/VD TTL (high impedance)
Terminals | DisplayPort IN Display Port x 1(Compatible with HDCP 2.2)AUDIO: Linear PCM (Sampling frequency48 kHz/44.1 kHz/32 kHz)
Terminals | DisplayPort OUT Display Port x 1 (Compatible with HDCP 1.4)
Terminals | USB USB Connector (Type A) x 2, DC 5 V/2A, DC 5 V/1A (USB 3.0 is supported)
Terminals | Serial D-sub 9-pin x 1, RS-232C Compatible
Terminal | LAN RJ45 x 1 compatible with PJLinkTMRJ45 10BASE10-T/100BASE-TX
Terminal | DIGITAL LINK RJ45 x 1 100BASE-TX, compatible with Long reach mode (Compatible with HDCP 2.2)
Terminals | Slot Intel SDM specificationCorresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A
Terminals | IR IN / OUT Stereo Mini Jack (M3) x 1 / x 1
Terminals | AUDIO OUT Stereo Mini Jack (M3) x 1 0.5 V [rms]Variable (- - 0 dB) (1 kHz 0 dB Input,10 k Load)
Built-in Speaker 20 W [10 W + 10 W]
Power consumption 385 W
Power Off Condition approx. 0.3 W
Stand-by Condition approx. 0.5 W
Dimensions (W x H x D) (mm) 1681 x 959 x 73 mm *Including handles
Dimensions (W x H x D) (inch) 66.15" x 37.75" x 2.87" *Including handles
Bezel width (mm) T/B/L/R: 14.8 mm
Bezel width (inch) T/B/L/R: 0.58"
Weight (kg) approx. 56.0 kg
Gross Weight (kg) 71 kg
Wall-hanging pitch (mm) VESA Compliant W 600 x H 400 mm (Installed by: M6 screws / Screw hole depth 10 mm)
Tilting angle Landscape : 0 - 45 degrees forward / backwardPortrait : 0 - 20 degrees forward / backward
Operating Time 24h / day
Operating environment | Temperature 0 C to 40 C
Operating environment | Humidity 20% to 80% (No condensation)
Dynamic Contrast ratio 50000:1, 50000:1 Panel Surface Treatment
Panel Surface Treatment Anti glare type (Haze 28%)
Orientation Landscape/Portrait
Color Black
4K USB Media Player eliminates the need for external devices and allows updates via LAN
16 9
1200 1
Mini D-Sub 15-pin (DDC2B) x 1 Y/GPB/CB/BPR/CR/RHD/VD with sync 1.0 V [p-p] (75 ): without sync 0.7 V [p-p] (75 ): without sync 0.7 V [p-p] (75 ): without sync 0.7 V [p-p] (75 ): HD/VD TTL (high impedance), with sync 1.0 V [p-p] (75 ): without sync 0.7 V [p-p] (75 ): without sync 0.7 V [p-p] (75 ): without sync 0.7 V [p-p] (75 ): HD/VD TTL (high impedance) Terminals | DisplayPort IN
T/B/L/R 14.8 mm, 0.58", 14.8 mm Bezel width (inch)
Landscape 0 - 45 degrees forward / backwardPortrait : 0 - 20 degrees forward / backward
50000 1

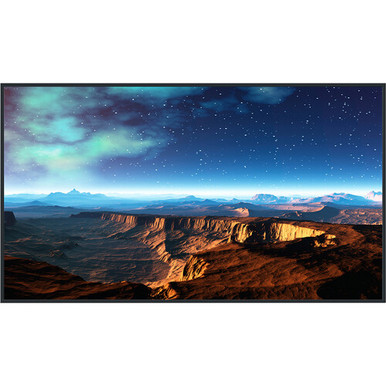

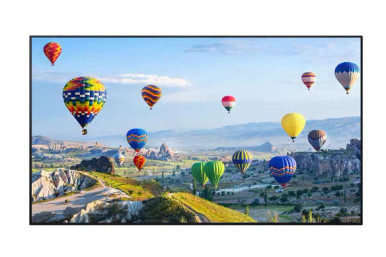

Creates life-like Images with 4K UHD Resolution

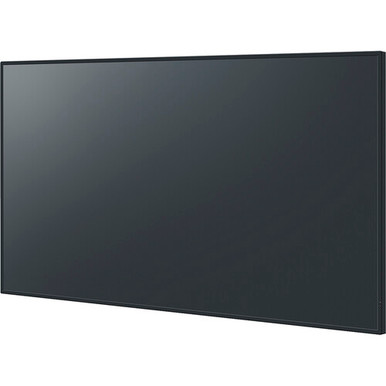

Panasonic SQ1W Overview Compatible with VESA-wall mounting system
Panasonic SQ1W Overview Panasonic TH-65SQ1WA weighs 36 kg without a stand Built-in Speakers (2x10 W)
Features 2x HDMI, 1x DisplayPort, 2x USB port, and 1x DVI-D
Panasonic SQ1W Overview Color Black
24/7 Continous Operation without worry Key features 75", 500 cd/m , 4K IPS panel with slim and stylish design and 24/7 operation
Panasonic SQ1W Overview High image quality through HDR support (HLG system) that displays light and dark images in a realistic way, expandability with ultra-slim Intel SDM (Intel Smart Display Module), DisplayPort connection for daisy-chain signage, multiple screen function (quad, PinP, PbyP) and 4K DIGITAL LINK
Panasonic SQ1W Overview Flexible and light installation either in portrait or landscape Specifications: Screen size (diagonal) (inch) 74.5 inch
Panasonic SQ1W Overview Screen size (diagonal) (mm) 1892.7 mm
Panasonic SQ1W Overview Aspect Ratio 16:9 Panel Type IPS / Edge LED
Panasonic SQ1W Overview Effective display area (W x H) (mm) 1649.6 mm / 927.9 mm, display area (W x H) (inch) 64.94" / 36.53" Resolution 3840 x 2160
Panasonic SQ1W Overview Brightness (typ.) 500 cd/m2
Panasonic SQ1W Overview Contrast Ratio 1200:1 Response Time 8.0 ms (G to G) Viewing angle [(T/B)/(L/R)] 178 / 178 (CR10)
Power Requirements AC 110 240 V 50 Hz / 60 Hz
Power Requirements Terminals | HDMI IN
Power Requirements HDMI Type A Connector x 2(Compatible with HDCP 2.2)AUDIO: Linear PCM (Sampling frequency48 kHz/44.1 kHz/32 kHz)
Power Requirements Terminals | DVI-D IN/AUDIO IN (L/R)
Power Requirements DVI-D 24-pin x 1 (Compatible with HDCP 1.1) Compliance with DVI Revision 1.0
Terminals | PC IN/AUDIO IN (L/R)
Power Requirements Display Port x 1 (Compatible with HDCP 1.4) Terminals | USB
Power Requirements USB Connector (Type A) x 2, DC 5 V/2A, DC 5 V/1A (USB 3.0 is supported) Terminals | Serial
Power Requirements D-sub 9-pin x 1, RS-232C Compatible Terminal | LAN
Power Requirements RJ45 x 1 compatible with PJLinkTMRJ45 10BASE10-T/100BASE-TX Terminal | DIGITAL LINK, x 1 100BASE-TX, compatible with Long reach mode (Compatible with HDCP 2.2) Terminals | Slot
Power Requirements Intel SDM specificationCorresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A Terminals | IR IN / OUT
Power Requirements Stereo Mini Jack (M3) x 1 / x 1
Power Requirements Terminals | AUDIO OUT
Power Requirements Power consumption 385 W
Power Requirements Power Off Condition approx. 0.3 W Stand-by Condition approx. 0.5 W
Power Requirements Dimensions (W x H x D) (mm) 1681 x 959 x 73 mm *Including handles, (W x H x D) (inch) 66.15" x 37.75" x 2.87" *Including handles Bezel width (mm)
Power Requirements Weight (kg) approx. 56.0 kg, (lbs.) 123.5 lbs
Power Requirements Gross Weight (kg) 71 kg, (lbs.) 156.6 lbs Wall-hanging pitch (mm)
Power Requirements Landscape 0 - 45 degrees forward / backwardPortrait : 0 - 20 degrees forward / backward
Power Requirements Operating Time 24h / day, environment | Temperature 0 C to 40 C, environment | Humidity 20% to 80% (No condensation)
Power Requirements Anti glare type (Haze 28%) Orientation Landscape/Portrait
SKU TH-75SQ1W
Brand Panasonic
