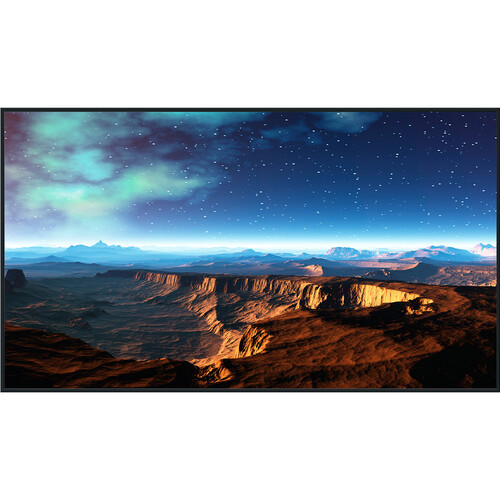

Panasonic TH-49SQ1WA Series 49" Class 4K UHD Commercial LED Display

The Panasonic TH-49SQ1WA Series 49-inch Class 4K UHD commercial LED display is a professional signage display with a slim, lightweight, and scalable design. It delivers Panasonic 4K image quality and includes professional features that help simplify installation for digital signage and commercial AV systems.

Key features

• 49-inch Class 4K UHD LCD digital signage display with 3840 x 2160 resolution and 2160p video scan format.
• Professional-grade IPS panel supports high reliability and continuous 24/7 operation.
• Edge LED backlight technology with 500 nit brightness and 50,000:1 dynamic contrast ratio.
• Video wall compatible design with a 0.56-inch top/bottom bezel and 0.51-inch left/right bezel.
• Equipped with the Intel SDM specification slot standard for simple, wide system interoperability when combined with an interface board.
• Network and communication support includes Ethernet.
• Interfaces include USB, DVI, HDMI, Serial, 2 HDMI inputs, 2 DisplayPorts, and 1 DVI port.
• Input voltage supports 120 V AC and 230 V AC.
• Black finish with 400 x 400 VESA mount standard.
• Package contents include the 49-inch Class 4K UHD LCD display, remote control, 2 AAA batteries, 3 clampers, 1 USB memory cover, 1 SDM-S attachment, AC cord approximately 2.0 m or 79 inches, CD-ROM/User Manual, and operating instruction book.

Who it's for

The Panasonic TH-49SQ1WA is built for commercial signage, corporate displays, retail messaging, and scalable AV installations that need 4K resolution, 24/7 operation, network connectivity, and flexible input options.

FAQ

Is the Panasonic TH-49SQ1WA a 4K display?

Yes. It has a 3840 x 2160 4K UHD resolution.

Can this display run continuously?

Yes. The professional-grade IPS panel is made for continuous 24/7 operation.

Who should choose the TH-49SQ1WA?

The Panasonic TH-49SQ1WA is designed for buyers building dependable digital signage, corporate information displays, retail messaging, or multi-screen AV systems. Its 49-inch 4K UHD IPS panel, 500 nit brightness, Ethernet connectivity, and 24/7 operating capability make it better aligned with continuous commercial use than a presentation display intended only for a daily meeting schedule.

Within Panasonic's SQ1WA family, this size provides a balance between readable 4K detail and a footprint that can work in narrower wall sections. Video-wall compatibility and relatively slim bezels support tiled layouts, while the Intel SDM specification slot gives integrators a path to add a compatible interface board. Two HDMI inputs, two DisplayPort connections, DVI, USB, and serial control provide useful flexibility when the source system is already defined.

Installation details to confirm

• Select mounting hardware for the 400 x 400 VESA pattern and confirm structure, clearances, and service access.
• Choose landscape placement or a tiled arrangement only after checking sightlines and content dimensions.
• Plan power, network, control, and signal cable routes before mounting, especially in a video wall.
• Verify any SDM interface board separately; the display's slot does not by itself define the installed input option.

For searches using the full phrase Panasonic TH-49SQ1WA digital signage display, this model's strongest fit is a managed, always-on commercial installation that benefits from 4K resolution and broad wired connectivity.
