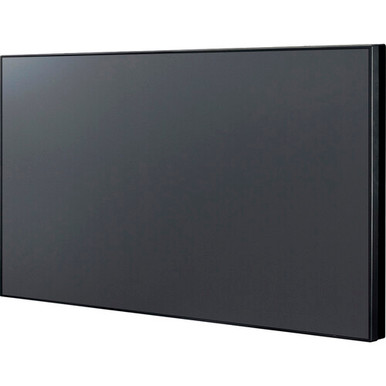

Panasonic TH-55LFV9U LFV9 55" Class Full HD IPS LED Video Wall Display

(No reviews yet) Write a Review

SKU:: TH-55LFV9U
UPC:: 885170371521
MPN:: TH-55LFV9U
Condition:: New
Shipping:: Free Shipping

$3,307.84

Current Stock:

Quantity:

Frequently bought together:

Description
Warranty Information

Description

Panasonic LFV9 Overview

Advertise your product or business digitally with the Panasonic LFV9 55" Class Full HD IPS LED Video Wall Display. It outputs up to 500 cd/m² of brightness to help enhance visibility in bright environments like shopping malls. Its slim bezel design lets you mount multiple units together to create a vibrant video wall. The LFV9 has DVI-D, DisplayPort, a BNC component/composite video combo, and two HDMI inputs for connection to a variety of source devices. DVI-I and DisplayPort outputs let you daisy-chain your signal to other displays. A remote control is included as an added convenience.

Key Features

Full HD (1920 x 1080) Native Resolution
500 cd/m² Typical Brightness
DVI-D, DisplayPort, VGA, 2x HDMI Inputs
DVI-I & DisplayPort Outputs
Digital Signage-Capable
Rated for 24/7 Usage
Slim 3.5mm Bezel-to-Bezel Design
Remote Control Included

Narrow Bezel for Seamless Video Walls

Narrow bezels on the LFV9 reduce bezel-to-bezel distance to a near-invisible 3.5mm. In larger video-wall installations, screen borders seem to disappear, resulting in truly spectacular large-format images.

Multi-Screen Configuration for Automatically Synchronized 4K (4 x 1080p) Images

Two systems are available for 4K (3840 x 2160, 30p) output are supported for multi-screen layouts:

The MST (Multi Stream Transport) system supports dot-by-dot display of 4K images in 2x2 multi-screen configuration
The SST (Single Stream Transport) system supports enlarged display of 4K images in multi- screen configuration
DisplayPort daisy-chaining supports up to 25 displays, or up to eight with HDCP signals

Highly Legible Panel Surface Processing

The LFV9 employs a panel with Advanced Anti-Glare (AAG) processing that uses its concave/convex surface to diffuse light from the sun and lighting equipment. Because it suppresses external reflections to maintain higher legibility, it is ideal for use in monitoring rooms and public facilities.

Backlight Optimization Improves Contrast

Highly efficient direct-lit LED backlighting with local dimming assures high 500,000:1 contrast performance. Backlight brightness is automatically optimized to deepen blacks in dark areas and boost whites in light areas of individual scenes displayed on screen for more realistic and immersive picture quality.

Efficient 24/7 Reliability in Landscape or Portrait Modes

Durable panel materials and quality components ensure dependable 24-hour operation seven days a week. This makes the LFV9 suitable for applications where absolute reliability is critical. Further, these displays are designed for either landscape or portrait orientation without affecting color, brightness, or operational life. This flexibility allows you to exploit your installation space to its fullest potential.

Failover and Failback Safeguards for Mission Critical Situations

Failover and Failback functions prevent image interruptions by switching between two system inputs. This is ideal for digital signage in transportation systems where interruption of the image display is simply not permitted, and shops with 24/7 operation. If the primary A/V signal is interrupted, the system automatically switches to a backup input so video display is maintained.

Support Color Calibration

Colors are pre-calibrated prior to factory shipment to minimize color differences between displays for multi-screen use. This makes it possible to create single images without any visible differences from display to display.

Multi-Screen System for High-Impact Images in Large Spaces

The Multi-Display function enlarges images to up to 100 times their original size. It can increase image size using the same zoom ratio in both vertical and horizontal directions to suit 2 x 2, 3 x 3, 4 x 4, 5 x 5, and 10 x 10 video-wall configurations, or can apply different ratios to suit alternative screen layouts. In this way, you can maximize image size according to the size and shape of your video wall.

Video Wall Manager Software and Auto Display Adjustment Upgrade Kit

Panasonic's free Video Wall Manager software can be used with the LFV9 display, enabling you to calibrate display color using a color sensor, adjust display settings, and control and manage data via a computer. If the software is upgraded with an optional TY-VUK10 Auto Display Adjustment Upgrade Kit, brightness and color among multiple displays can be automatically calibrated using a compatible camera (Nikon D5200/D5300/D5500/D5600/D7500).

Optional Precision Video-Wall Mounting System

Panasonic's optional Installation Mount makes setting up a spectacular video wall installation comparatively quick and painless. As well as saving time and reducing labor cost, the rigid mount also eliminates potential panel surface alignment inconsistencies with the use of an automatic magnet system.

Minimize Downtime and Improve Efficiency

The optional ET-SWA100 Series Early Warning Software monitors all display devices over the network. Administrators can monitor device status in real time, view operation history, and receive alerts if abnormalities are detected. Monitoring servers with this software installed can be checked via tablet or a web browser. As well as minimizing downtime, the software reduces unnecessary visits to remote display sites and saves service time and cost.

Panasonic LFV9 Specs

Display

Screen Size (Diagonal)	54.6"
Resolution	1920 x 1080
Panel Type	IPS-Type LCD
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
Brightness	500 cd/m² (Typical)
Viewing Angle (H x V)	178 x 178°
Screen Area	47.6 x 26.8" / 1209.6 x 680.4 mm
Aspect Ratio	16:9
Contrast Ratio	1200:1
Dynamic Contrast Ratio	500,000:1
Response Time	8 ms (GtG)
Backlighting Technology	Direct LED

Connectivity

Primary Connectivity Location	Display
Input Ports	2 x HDMI Audio, Video 1 x DisplayPort 1.2 Audio, Video 1 x DVI-D Video 1 x 15-Pin VGA Video 1 x BNC Component/Composite Video 1 x RCA Stereo (L/R) Audio 1 x 1/8" / 3.5 mm Audio
Output Ports	1 x DisplayPort 1.2 – Audio, Video (Bottom) 1 x DVI-I – Video (Bottom) 1 x 1/8" / 3.5 mm – Audio (Side) 2 x Speaker Terminal – Audio (Side)
USB Ports	1 x USB (Version Unspecified) (Side)
Ethernet Ports	Bottom: 1
Control	IR via 1/8" / 3.5 mm Input IR via 1/8" / 3.5 mm Output RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output

General

TV Tuner	No
Display Orientation	Landscape, Portrait
HDCP Support	Yes, Version 1.4
Lighting Lifespan	60000 Hours at 50% Brightness

Surface

Surface Treatment	Anti-Glare
Haze Level	28%

Audio

External Speaker Output

2 x 10 W

Electrical

Power Consumption	Typical: 103.0 W Maximum: 185.0 W Standby: 0.5 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	20 to 80%

Physical

Wall Mounting	400 x 400 mm
Bezel Thickness	2.25 mm (Top/Left) 1.25 mm (Bottom/Right)
Duty Cycle	24 Hours / 7 Days
Dimensions	47.8 x 26.9 x 3.7" / 1213.4 x 684.2 x 95.0 mm
Weight	59.5 lb / 27 kg
