NEC X981UHD Overview

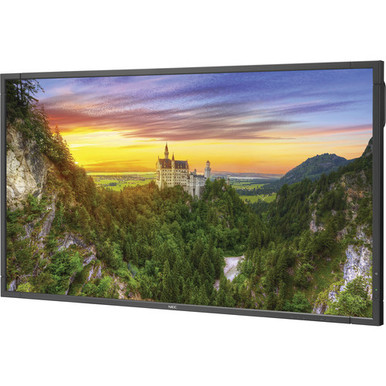

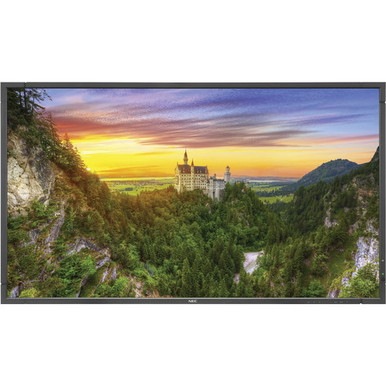

Vividly display your business' content on an expansive screen with the NEC X981UHD 98" 4K Commercial IPS LED Monitor. This business-ready monitor features a large 98" LED display with a 3840 x 2160 native resolution for viewing detailed UHD images without pixel loss. This monitor's 380 cd/m² brightness rating and 1300:1 contrast ratio showcases its ability to handle light and dark on-screen images. The X981UHD also offers flexible viewing options, supporting landscape and portrait viewing orientations.
As a digital-signage-capable display, this monitor is suitable for use in a variety of commercial environments and even supports 24/7 applications. This display is equipped with a variety of inputs including DisplayPort, two DVI-D, and four HDMI ports. The X981UHD features built-in stereo speakers and also offers the convenience of allowing you to connect larger external speakers. While this display doesn't include a table stand, it offers a VESA-compliant wall-mountable design
Enhanced Image Performance
This monitor offers advanced control of visual parameters, including full control of brightness, color, gamma, and uniformity via SpectraView Engine.
Color Reproduction
The X981UHD delivers reliable 10-bit color performance and wide viewing angles thanks to its S-IPS panel. It also supports LUT hardware calibration.
Multi-Source and Split-Screen
This commercial monitor offers flexible multi-source conferencing and efficient split-screen operation. It also equipped with a wide range of digital connectivity options.
NaViSet Administrator 2 Multi-Display Management Software
With the free, downloadable NaViSet Administrator 2 software you can manage all your connected display devices from a centralized location.
Additional Features
- UHD upscaling
- Multi Picture mode
- SpectraView Engine mode
- Advanced thermal capabilities
- Ethernet and RS-232 control and communication
- Carbon footprint meter
- Full 24/7 scheduler
- Ambient light sensor

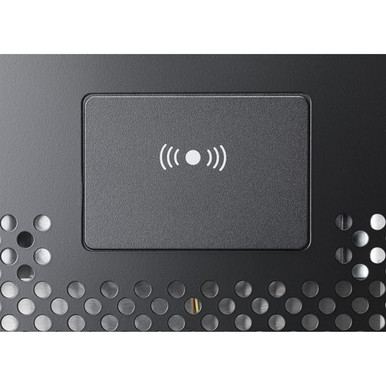

- Intelligent wireless data through the optional NFC app
- OPS expansion slot
- Fixed/variable audio output
- Input labeling

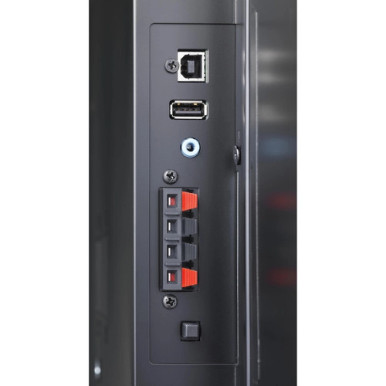

- Built-In speakers with rear internal/external speaker selector
- Supports optional stand and external speakers
NEC X981UHD Specs
Display
| Panel Technology |
S-IPS with Direct LED backlighting |
| Viewable Image Size |
98.0" (248.9 cm) |
| Native Resolution |
3840 x 2160 at 60 Hz |
| Brightness |
Typical: 380 cd/m²
Max: 500 cd/m² |
| Contrast Ratio |
1300:1 |
| Viewing Angle (H/V) |
178/178° (89U/89D/89L/89R) at CR>10 |
| Aspect Ratio |
16:9 |
| Active Screen Area |
85.0 x 47.8" (2,158.8 x 1,214.4 mm) |
| Colors |
>1.07 billion |
| Orientation |
Landscape and Portrait |
Connectivity

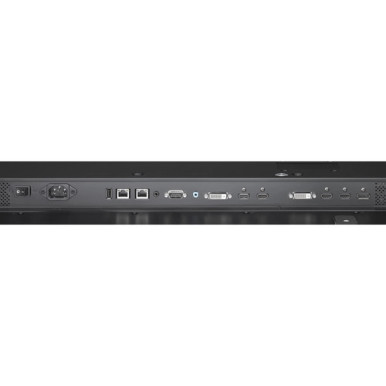

| Inputs |
4 x HDMI 1.4 with HDCP
1 x DisplayPort with HDCP
2 x DVI-D (dual-link) with HDCP
1 x 1/8" (3.5 mm) audio
1 x IR
1 x RS-232C |
| Outputs |
1 x 1/8" (3.5 mm) audio |
| Other Ports |
1 x USB upstream
1 x USB downstream
1 x USB service
2 x External speakers (left and right)
2 x LAN
1 x Power |
| Switch |
Yes, internal/external speaker |
General
| Speaker Output |
2 x 10 W |
| Power Consumption |
On (Typical): 420 W
Auto Power Save: <6.0 W
Auto Standby: <0.5 W |
| Current Rating |
7.7 A at 100-120 VAC, 3.0 A at 220-240 VAC |
| VESA Compatibility |
400 x 400 mm, 4-hole |
| Operating Conditions |
Temperature: 32 - 104°F (0 - 40°C)
Humidity: 20 - 80%
Altitude: 9842' (3000 m) |
| Bezel Width |
Left/Right/Top/Bottom: 0.8" (19.9 mm) |
| Dimensions (WxHxD) |
86.8 x 49.6 x 4.3" (2,204.8 x 1,259.8 x 108.0 mm) |
| Weight |
199.7 lb (90.6 kg) |
