Screen size (diagonal) (inch) 49.5-inch
Screen size (diagonal) (mm) 1257 mm
Aspect Ratio 16:9, 16:9 Panel Type VA Panel / D-LED
Panel Type VA Panel / D-LED
Effective display area (W x H) (mm) 1095 x 616 mm
Effective display area (W x H) (inch) 43.1″ x 24.2″
Resolution 3840 x 2160
Contrast Ratio 4000 : 1
Response Time 8 ms (G to G)

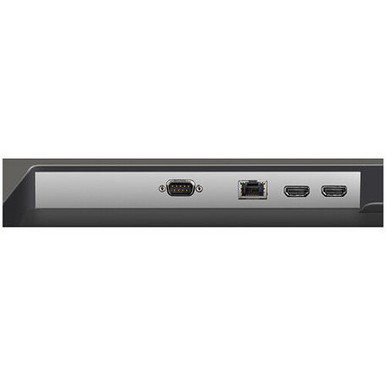

Terminals | HDMI IN HDMI Type A Connector x 2
Terminals | PC IN/AUDIO IN (L/R) Stereo Mini Jack (M3) x 1 (Shared with PC IN) 0.5 V [rms]
Terminals | USB RJ45 x 1 RJ45 10BASE-T/100BASE-TX
Terminals | LAN RJ45 x 1, 10 BASE-T / 100 BASE-TX
Built-in Speaker 20 W [10 W + 10 W]
Power Requirements AC 110 – 127 V 50 Hz / 60 Hz
Power consumption 120 W
Power Off Condition Approx. 0.5 W
Standby Condition Approx. 0.5 W
Dimensions (W x H x D) (mm) 1124 x 653 x 77 mm
Dimensions (W x H x D) (inch) 44.3″ x 25.7″ x 3.1″
Bezel width (mm) T/R/L 11.9 mm B14.4 mm
Bezel width (inch) T/R/L 0.47 B 0.57″
Weight (kg) Approx. 17 kg
Wall-hanging pitch (mm) VESA Compliant 400 x 200 mm (Installed by: M6 screws / Screw hole depth 17 mm)
Wall-hanging pitch (inch) VESA Compliant 15.7″ x 7.9″ Installed by: M6 screws / Screw hole depth 0.7″
Operating environment Temperature : 32 F to 104 F (0 to 40)*1 : 32 F to 95 F (0 to 35)*2 Humidity : 20% to 80% (No condensation)
Operating Time 16 h/day
Viewing angle [(T/B)/(L/R)] 178 / 178 (CR20)
Terminals | AUDIO OUT RCA Terminal (L / R) x 1 Variable (- – 0 dB) (1 kHz 0 dB Input,10 k Load) 0.5 V [rms]
16 9
4000 1
VESA Compliant 400 x 200 mm (Installed by M6 screws / Screw hole depth 17 mm), M6 screws / Screw hole depth 17 mm) Wall-hanging pitch (inch)
Temperature 32 F to 104 F (0 to 40)*1 : 32 F to 95 F (0 to 35)*2 Humidity : 20% to 80% (No condensation)
Screen size (diagonal) (mm) 1257 mm
Brightness (typ.) 400 cd/m2
Contrast Ratio 4000 : 1 Response Time 8 ms (G to G)
Terminals | HDMI IN
HDMI Type A Connector x 2
Terminals | PC IN/AUDIO IN (L/R) Stereo Mini Jack (M3) x 1 (Shared with PC IN) 0.5 V [rms] Terminals | USB RJ45 x 1 RJ45 10BASE-T/100BASE-TX Terminals | LAN
Power Requirements AC 110 127 V 50 Hz / 60 Hz
Power Requirements Power consumption 120 W
Power Requirements Power Off Condition Approx. 0.5 W Standby Condition Approx. 0.5 W
Power Requirements Dimensions (W x H x D) (mm) 1124 x 653 x 77 mm, (W x H x D) (inch) 44.3″ x 25.7″ x 3.1″ Bezel width (mm) T/R/L 11.9 mm B14.4 mm Bezel width (inch) T/R/L 0.47 B 0.57″
Power Requirements Weight (kg) Approx. 17 kg, (lbs.) Approx. 37.5 lbs Wall-hanging pitch (mm)
Power Requirements Operating environment, Time 16 h/day Viewing angle [(T/B)/(L/R)] 178 / 178 (CR20)
Power Requirements Temperature 32 F to 104 F (0 to 40)*1 : 32 F to 95 F (0 to 35)*2
Power Requirements Humidity 20% to 80% (No condensation)
Power Requirements Terminals | AUDIO OUT RCA Terminal (L / R) x 1
Power Requirements Variable (- 0 dB) (1 kHz 0 dB Input,10 k Load) 0.5 V [rms]
SKU TH-50CQ2U
