Ultra-high resolution 4K displays with a bright 700 cd/m² deliver strong visibility even in bright conditions. Their panels are designed to mitigate glare from light sources and ambient light, reducing reflections. Even next to a window, these displays can be effectively used to share information in a classroom or conference room setting, and are well-suited to in-store digital signage placed in well-lit areas.
Easily rotate to support vertical-oriented content, and can tilt forward and back for easier viewing angles. And, with constant 24-hour uptime, they oer peace of mind when running displays for long hours.
The SQ2H Series is equipped with various interfaces including USB Type C, compatible with DP Alt mode and power delivery of up to 60 W. The Series also utilizes the Intel Smart Display Module (Intel SDM) specification slot standard. By combining PC boards or interface boards, the displays can be employed in a wider range of use cases. They are equipped with USB media player functionality to display 4K content and 20 W (10 W + 10 W) of built-in speakers, precluding the need for external speakers.

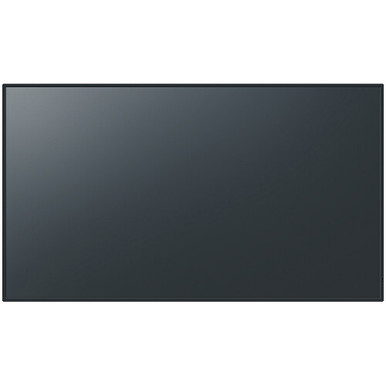

Immerse yourself in unparalleled visual excellence with the TH-65SQ2HW, boasting ultra-high resolution 4K displays that shine with a brilliant 700 cd/m², ensuring robust visibility even in the brightest conditions. Designed for optimal viewing experiences, these panels are crafted to mitigate glare from light sources and ambient light, effectively reducing reflections and enhancing clarity.
Enhanced Visibility in Any Environment: Step into a new realm of visibility—these displays excel even in well-lit areas, making them ideal for classrooms, conference rooms, and vibrant in-store digital signage. Whether positioned next to a window or under direct sunlight, the TH-65SQ2HW ensures your content remains clear and impactful.
Versatile Display Orientation: Adapt to your content with ease. The displays can be effortlessly rotated to support vertical-oriented content, providing flexibility in showcasing information. Tilt the displays forward or backward to achieve the perfect viewing angle, catering to diverse audience preferences.
Reliability Beyond Expectations: With constant 24-hour uptime, the TH-65SQ2HW offers peace of mind for extended display operation. Whether running displays in educational institutions, corporate settings, or public spaces, you can trust in the reliability and durability of these displays.
Multifaceted Connectivity: Experience versatility with a range of interfaces, including USB Type C with DP Alt mode and power delivery of up to 60 W. The Intel Smart Display Module (Intel SDM) specification slot standard expands the range of use cases, allowing seamless integration with various PC boards or interface boards.
Effortless Content Display: Say goodbye to external speakers—the TH-65SQ2HW is equipped with 20 W (10 W + 10 W) built-in speakers, delivering rich audio quality to complement the stunning visuals. The USB media player functionality enables easy display of 4K content, simplifying your setup and enhancing user convenience.
Elevate your visual communication with the TH-65SQ2HW, where cutting-edge technology meets intuitive design. Imbued with advanced features and reliability, these displays redefine the standard for immersive and impactful content delivery in any setting.
Specification:-
| General Information |
| Manufacturer |
Panasonic |
| Manufacturer Part Number |
TH65SQ2HW |
| Brand Name |
Panasonic |
| Product Series |
SQ2H |
| Product Model |
TH-65SQ2HW |
| Product Name |
TH-65SQ2HW Digital Signage Display |
| Product Type |
Digital Signage Display |
| Technical Information |
| Video Wall Compatible |
Yes |
| Bezel Width (Bottom) |
0.59″ |
| Bezel Width (Top) |
0.59″ |
| Bezel Width (Left) |
0.59″ |
| Bezel Width (Right) |
0.59″ |
| Panel Technology |
Advanced Super Dimension Switch ( ADS ) |
| Operation Hours |
24 Hours/7 Days |
| Display & Graphics |
| Number of Screens |
1 |
| Screen Size |
64.5″ |
| Display Screen Type |
LCD |
| Display Resolution |
3840 x 2160 |
| Graphics Modes |
4K UHD |
| Response Time |
8 ms |
| Aspect Ratio |
16:9 |
| Backlight Technology |
Direct LED |
| Orientation |
Landscape/Portrait |
| Maximum LED Life |
5.7 Year |
| Video |
| Scan Format |
2160p |
| Dynamic Contrast Ratio |
50,000:1 |
| Brightness |
700 Nit |
| Network & Communication |
| Ethernet |
Yes |
| Interfaces/Ports |
| USB |
Yes |
| HDMI |
Yes |
| Serial |
Yes |
| Number of HDMI Inputs |
3 |
| USB Type-C |
Yes |
| RS-232C Input |
Yes |
| Number of Network (RJ-45) Ports |
1 |
| Number of Audio Line Out |
1 |
| Power Description |
| Input Voltage |
120 V AC |
|
230 V AC |
| Off-Mode Power Consumption |
300 mW |
| Environmental Conditions |
| Minimum Operating Temperature |
32°F (0°C) |
| Maximum Operating Temperature |
104°F (40°C) |
| Minimum Operating Humidity |
20% |
| Maximum Operating Humidity |
80% |
| Physical Characteristics |
| Bezel Color |
Black |
| VESA Mount Standard |
400 x 400 |
| Mount Type |
Wall Mountable |
| Installation Type |
Hanging |
| Miscellaneous |
| Package Contents |
- TH-65SQ2HW Digital Signage Display
- 1 x Remote Control
- 2 x Batteries (AAA size)
- AC Cord
- 1 x Sensor
- 2 x Clamper
- SDM-S Attachment
- Operating Instruction Book
|
| Application/Usage |
Conference Room |
