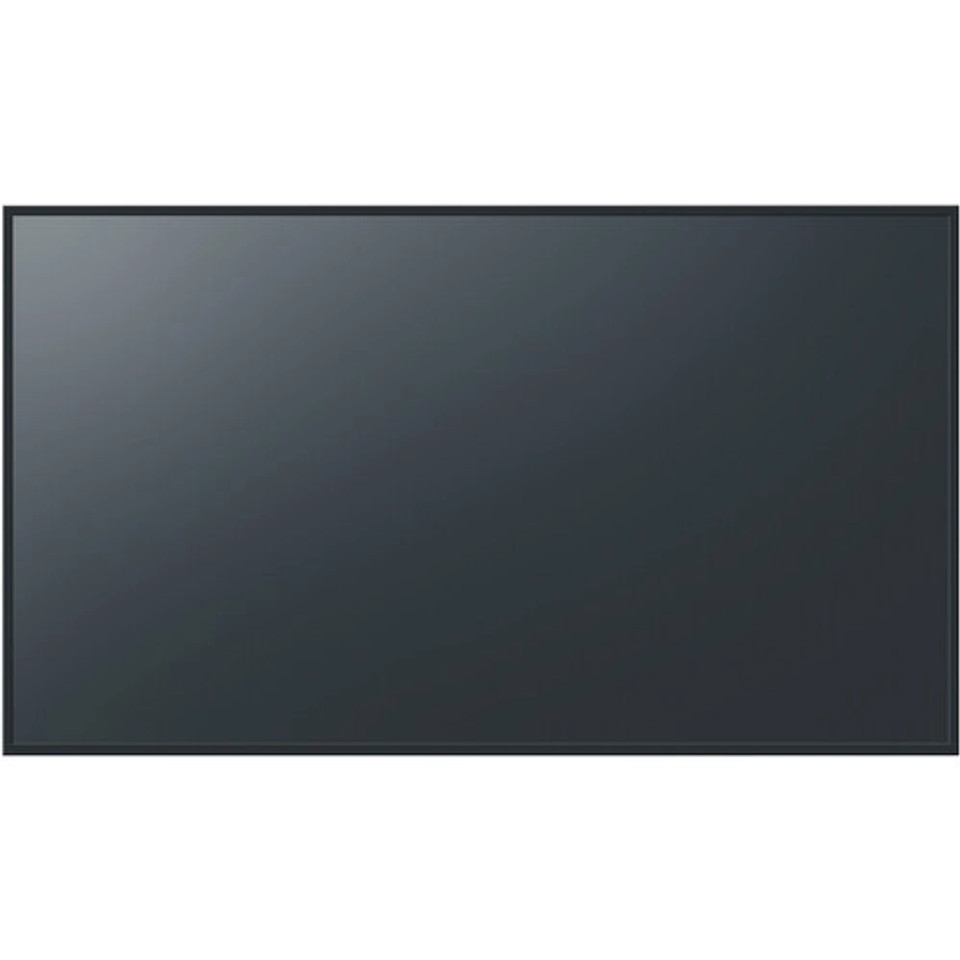

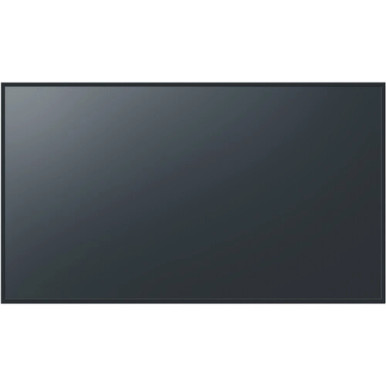

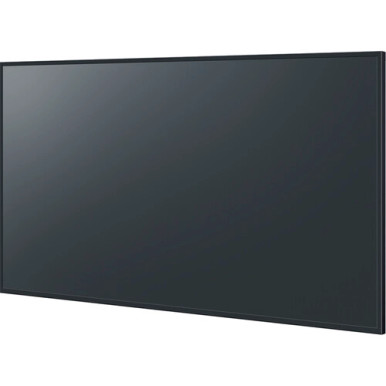

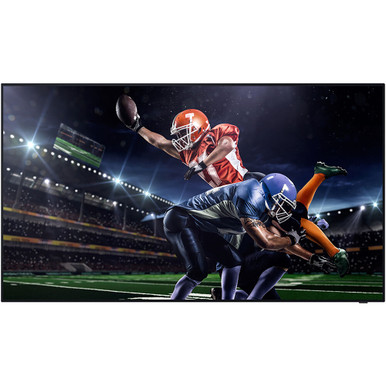

Panasonic TH-55CQ1U 55" Class 4K UHD Commercial, Education & Corporate LED TV

(No reviews yet) Write a Review
SKU:
TH-55CQ1U
UPC:
885170367333
MPN:
TH-55CQ1U
Condition:
New
Shipping:
Free Shipping
  • Panasonic CQ1 55" Class 4K UHD Commercial, Education & Corporate LED TV
  • Panasonic CQ1 55" Class 4K UHD Commercial, Education & Corporate LED TV
  • Panasonic CQ1 55" Class 4K UHD Commercial, Education & Corporate LED TV
$1,026.00
Frequently bought together:

Description

Panasonic CQ1U Overview

Display high-resolution content in nearly any installation setting with the Panasonic CQ1 55" Class 4K UHD Commercial, Education & Corporate LED TV. It features a 4K UHD native resolution with the capability of running 16/7, allowing you to display highly detailed and vibrant media with compatible content both during and after business hours.

The TV has a VGA and two HDMI inputs to support multiple source components. The USB port can play multimedia stored on thumb drives to eliminate the cable coming from a media player. The CQ1 can be controlled via RS-232C, Ethernet, or the included remote control.

Key Features

  • 4K UHD (3840 x 2160) Native Resolution
  • VGA, 2x HDMI Inputs
  • 16/7 Capable
  • RS-232 & Ethernet Controllable
  • Dual Built-In 10W Speakers

Elaborate 4K UHD Picture Quality Down to the Tiniest Details

With approximately 8,290,000 pixels, about four times the pixels of a Full HD display, images from 4K UHD sources are highly detailed. This dynamic, large-screen display achieves true-to-life, finely nuanced images. The 4K display is suitable for use in digital signage and meeting rooms.

Select the Best Display Mode for Your Content & Environment

The CQ1 series comes with an extensive display menu to let you select the most suitable mode for the content to be displayed and the viewing environment. Graphic modes include Dynamic, Standard, Sports, Cinema, Graphic, and Custom.

Dynamic Contrast

This feature automatically adjusts the contrast by determining the changes in the use of colors for images of the input signal that constantly change, such as motion pictures.

Dynamic Backlight Control

The backlight level can adapt to the input signal, adjusting its brightness to enhance contrast and reduce total power consumption.

Built-In TV Tuner

An ATSC tuner is built-in, providing highly precise 4K UHD images. A Sports mode is also newly equipped, ideal for live sports relays with dynamic images. The narrow bezels also allow better concentration on the screen. In addition to usage in sports bars and restaurants, the CQ1 series is optimal for refreshing office entertainment and information gathering during emergencies.

USB Media File Playback Function

Video and still images saved onto USB media in advance can simply be inserted into the CQ1 series TV for automatic playback.

Built-In Speakers for the Playback of Content with Sound

The TV has built-in speakers so that it can play content with sound without the connection of external speakers. This allows maximum use of a limited space for the installation of a large-screen display.

High Reliability Enables Continuous 16/7 Operation

In addition to being impact resistant, the CQ1 series is capable of 16/7 operation. It offers reliable use in educational institutions and offices.

Choose the Installation to Match Your Application

Installation is possible at a forward tilt of up to 20° to maintain legibility when mounted in high places.

HDMI CEC Support

HDMI CEC-compatible devices can be connected to the display by an HDMI cable, enabling the basic operations of the devices to be controlled by the TV's remote control.

LAN Control Support

The CQ1 series can be controlled by LAN or RS-232C. You can integrate the TV into your existing control system and control several devices simultaneously.

Additional Features

  • Plastic cabinet
  • Memory Viewer
  • Auto setting
  • No signal power off
  • Button lock
  • RC control lock
  • Controller user level

Panasonic CQ1U Specs

Display

Screen Size (Diagonal) 54.6"
Resolution 3840 x 2160
Panel Type VA LCD
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Brightness 400 cd/m² (Typical)
Viewing Angle (H x V) 178 x 178°
Screen Area 47.6 x 26.8" / 1209 x 680 mm
Aspect Ratio 16:9
Contrast Ratio 4000:1
Dynamic Contrast Ratio 50,000:1
Response Time 8 ms (GtG)
Backlighting Technology Direct LED

Connectivity

Primary Connectivity Location Display
Input Ports 2 x HDMI – Audio, Video (Side)
1 x RF Antenna – Audio, Video (Bottom)
1 x 15-Pin VGA – Video (Bottom)
1 x 1/8" / 3.5 mm – Audio (Bottom)
Output Ports 1 x 1/8" / 3.5 mm – Audio
USB Ports 1 x USB 2.0 Type-A - Audio/Photo/Video/Power (Side)
Ethernet Ports Bottom: 1
Control RS-232C via DE-9/DB-9

General

TV Tuner Yes - ATSC, QAM
Display Orientation Landscape
HDCP Support Yes, Version 2.2

Surface

Surface Treatment Anti-Glare
Haze Level 2%

Audio

Built-In Speakers Yes, 2 x 10 W
Speaker Configuration 2-Channel

Convenience

Analog Video Formats NTSC
Supported Video File Types AVI, MP4, MPG, TS
Supported Audio File Types MP3
Supported Photo File Types JPEG, JPG

Electrical

Power Consumption Maximum: 128.0 W
Typical: 103.0 W
Standby: 0.5 W
AC Input Power 100 to 127 VAC, 50 / 60 Hz
Apparent Power 129 VA

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 80%
Operating Altitude 9186' / 2800 m

Physical

Wall Mounting 400 x 200 mm
IR Sensor Yes
Bezel Thickness 12.9 mm (Right/Top/Left)
14.7 mm (Bottom)
Duty Cycle 16 Hours / 7 Days
Dimensions 48.8 x 28.3 x 3.1" / 1240.0 x 718.0 x 80.0 mm
Weight 33.1 lb / 15 kg

Packaging Info

Package Weight 46 lb
Box Dimensions (LxWxH) 53.63 x 33.63 x 7"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
