NEC MultiSync M431-AVT3 43" Class HDR 4K UHD Commercial IPS LED Display with ATSC Tuner

Condition:
New
$1,274.24
Shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
M431-AVT3
UPC:
805736075168
MPN:
M431-AVT3
  • NEC MultiSync M431-AVT3 43" Class HDR 4K UHD Commercial IPS LED Display with ATSC Tuner
  • NEC MultiSync M431-AVT3 43" Class HDR 4K UHD Commercial IPS LED Display with ATSC Tuner
  • NEC MultiSync M431-AVT3 43" Class HDR 4K UHD Commercial IPS LED Display with ATSC Tuner
  • NEC MultiSync M431-AVT3 43" Class HDR 4K UHD Commercial IPS LED Display with ATSC Tuner
  • NEC MultiSync M431-AVT3 43" Class HDR 4K UHD Commercial IPS LED Display with ATSC Tuner
  • NEC MultiSync M431-AVT3 43" Class HDR 4K UHD Commercial IPS LED Display with ATSC Tuner
  • NEC MultiSync M431-AVT3 43" Class HDR 4K UHD Commercial IPS LED Display with ATSC Tuner
  • NEC MultiSync M431-AVT3 43" Class HDR 4K UHD Commercial IPS LED Display with ATSC Tuner
Frequently bought together:

Description

NEC M431 Overview

Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also allowing the modularity possibilities to customize their needs dependent on their application and use. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.

Key Features

  • 4K UHD (3840 x 2160) Native Resolution
  • HDR10 & HLG Compatible
  • 500 cd/m² Brightness
  • Includes ATSC/NTSC Tuner Card


Display

Panel Technology IPS Viewable Image Size 43 "
Aspect Ratio 16:9 Native Resolution 3840x2160
Supported Resolutions DIsplayPort: V1.2 (HDCP 1.3/2.2) VGA60, SVGA60, XGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz) HDMI (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 576i@50 Hz, 480i@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)) Pixel Pitch 0.25 mm
Pixels Per Inch 102 @ native resolution Backlight Type LED Edge-lit
Brightness (typical) 500 cd/m2 Contrast Ratio (typical) ≥8,000:1 (Out of the box conditions, local dimming ON)
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Response Time (Gray to Gray) 8 ms
Refresh Rate 60Hz Active Screen Area 37.1 x 20.8 in. / 941.2 x 529.4mm
Orientation Landscape/Portrait Dimming Capability Local Dimming Capable
Displayable Colors More than 1.08 billion (8-bit+FRC) Color Temperature (Max) (°K) 10000K
Color Temperature (Min) (°K) 2600K Gamma (Typical) Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3

Synchronization Range

Horizontal (Analog/Digital) Digital: 26.0 - 135.0kHz Vertical Digital: 23.0 - 86.0Hz

Input Signal

Video Digital TMDS / DisplayPort

Signal Compatibility/Connectivity

PC Signal Compatibility Yes Macintosh Signal Compatibility Yes
Video Digital TMDS / DisplayPort External Control LAN and RS232 In - Full external control capabilities

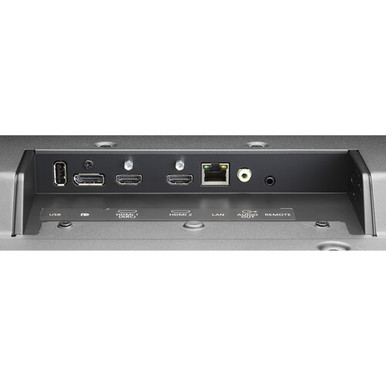

Input Terminals
Digital:
HDMI (2.0 x 2 with HDCP), DisplayPort (1.2 with HDCP)
Audio:
3.5 Mini-Jack x2, DisplayPort Audio, HDMI Audio x3
External Control:
RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)
Data:
USB 2.0 (Media Player)
Output Terminals
Audio:
3.5mm Mini-Jack

Power Consumption (typical)

On 80W ECO Mode Standby <0.5W
Network Standby 0.5W Power Consumption (max) 95W (Max brightness), 175W (Brightness Max, SDM Max, Volume Max)
Power Savings Mode 2 W Power Requirements 1.8A @ 100V, 0.9A @ 240V

Physical Specifications

Bezel Width (Left/Right, Top/Bottom) 0.43 in./0.43 in., 0.43 in./0.61 in. : 11 mm/11 mm, 11 mm/15.6 mm Dimensions (WxHxD)
Without stand:
38.1 x 22.1 x 2.6 in. / 968.2 x 561 x 67.1 mm
Shipping:
44.1 x 27.6 x 8.0 in. / 1120.0 x 700.0 x 203.0mm
Weight
Net Weight (without stand):
38.6 lbs. / 17.5 kg.
Shipping:
50.7lbs. / 23.0kg
VESA Hole Configuration 300 x 300mm (M6 x 4-hole)

Environmental Conditions

Operating Humidity 20 - 80% Operating Altitude 9843 ft. / 3000m
Storage Temperature -4-140°F / -20-60°C Storage Humidity 10-80%
Storage Altitude 40,000 ft. / 12,192m

Environmental Compliance

ENERGYSTAR Energy Star 8.0

Limited Warranty (parts & labor)

3 years Advanced Exchange

Additional Features

  • AMX Support
  • Automated Email Alert Function
  • ARC Support through HDMI
  • Crestron Roomview Support (FW Update)
  • Display Browser Control
  • Display Wall Calibrator Compatible
  • HDR Support (PQ, HLG, HDR10)

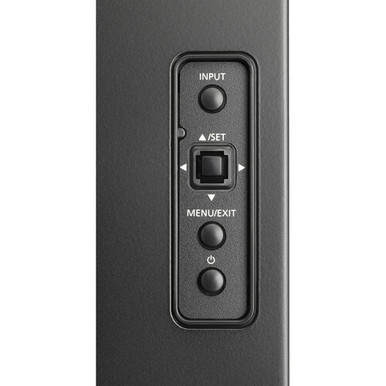

  • Key Guide
  • NaViSet Administrator 2 Compatible
  • OSD Rotation for Portrait Orientation
  • Accepts Intel(R) SDM-S or SDM-L
  • PJ Link Support
  • Power USB Port (5V/2A)
  • Raspberry Pi Compute Module 4 Compatible (Q2 2020)

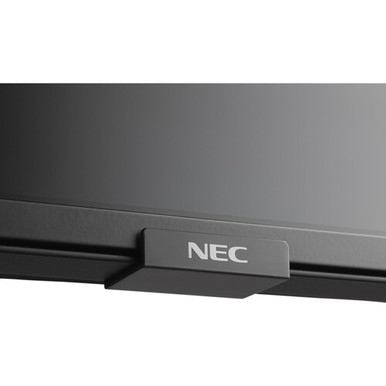

  • Removeable Logo Ornament
  • Real Time Clock
  • Local Dimming
  • TileMatrix
  • Cisco Webex Compatible
  • SNMP
  • Consumer Electronics Control (CEC)
  • Integrated USB Media Player
  • Integrated Temperature sensor
  • Full Input Detect Functionality
  • Programmable Gamma
  • Energy Star 8.0
  • Scheduler Function
  • Off Timer
  • Vacation Switch
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
