Description

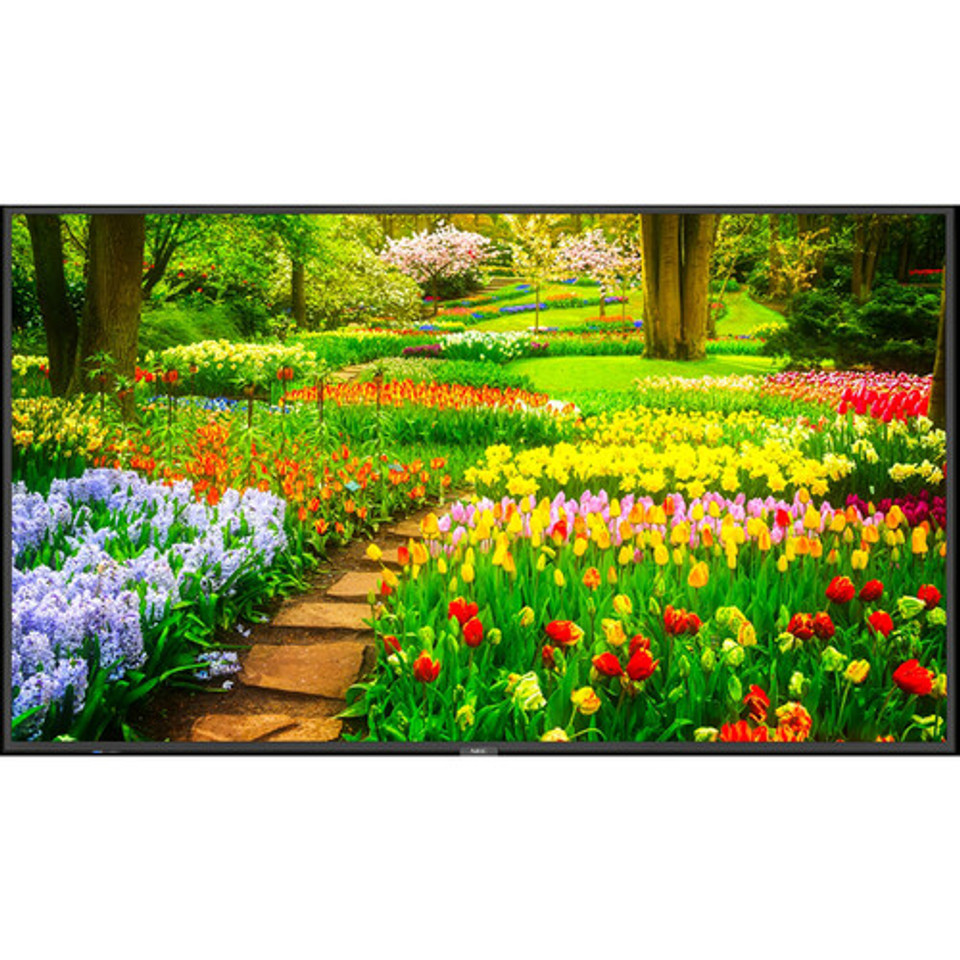

Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also containing a Coffee Lake Intel Celeron Windows 10 IoT Enterprise PC through the SDM-VICW-IS seamlessly integrated into the SDM-L slot on the side of the display. The series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before

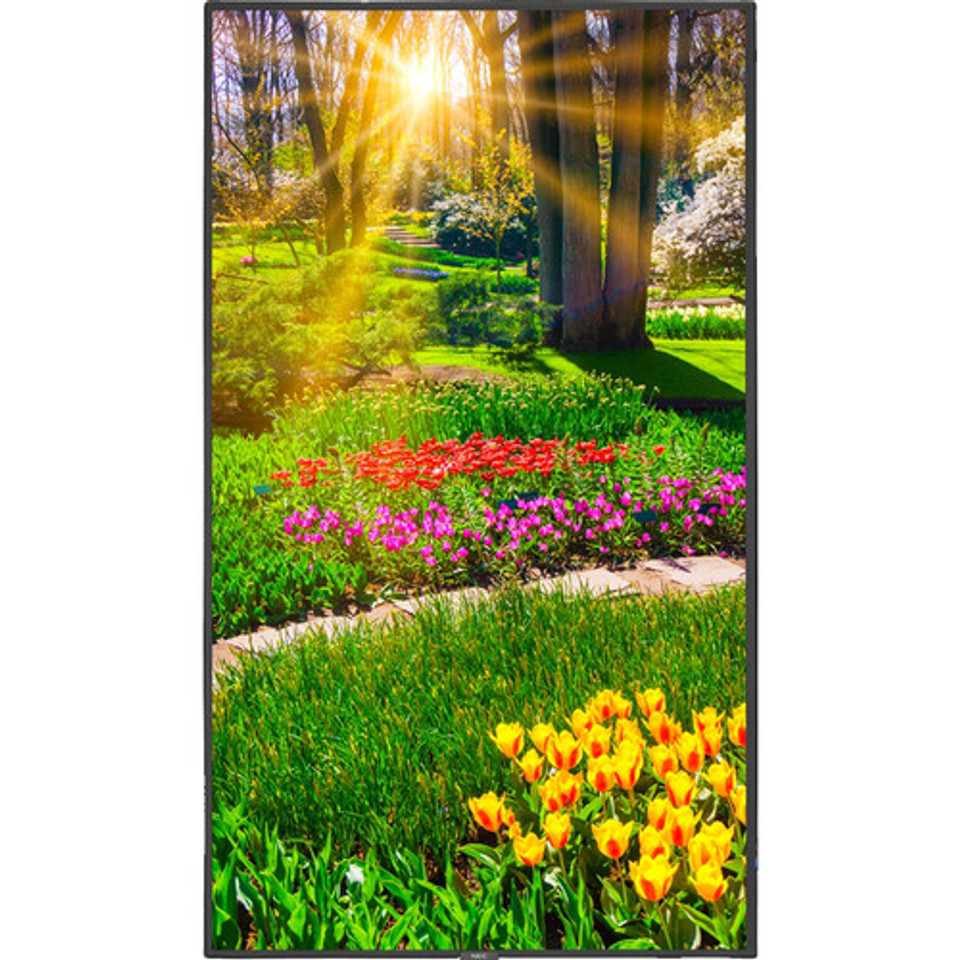

- Landscape and portrait orientation allows for flexibility of installation dependent on your needs
- Integrated Coffee Lake Intel Celeron, Windows 10 IoT PC with the SDM-VICW-IS included in the SDM-L slot
- Bidirectional and full external control allows for easy integration into control systems via LAN or RS232C
- 500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
- Integrated media player allows for audio, video or image playback via USB
- Failover capabilities with full input detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Integrated ambient light sensor allows the display to autmatically adjust its luminance based on external brightness conditions
Human sensor (large format displays)
Upon sending movement, allows for automatic adjustment to certain settings and features in the display which can lead to targeted messaging for dual-purpose display in digital signage or presentation applications.
4K resolution
Provides the ultimate in screen clarity.
Built-in speakers
Enhance the visual experience with superior sound.
Integrated ambient light sensor
Integrated ambient light sensor allows the display to automatically adjust its luminance based on the external brightness conditions, allowing for the ideal image in all ambient lighting scenarios.
Integrated ATSC/NTSC tuner through SDM-S slot
Additional tuner module integrated into the display that allows for FHD (1920 x 1080) ATSC or NTSC signal delivery. The tuner can be controlled by either the display's remote or the included RS-232C interface.
Round-the-clock scheduler
Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
Specifications:
Display
| Panel Technology | IPS | Viewable Image Size | 49 " |
| Aspect Ratio | 16:9 | Native Resolution | 3840x2160 |
| Supported Resolutions | DIsplayPort: V1.2 (HDCP 1.3/2.2) VGA60, SVGA60, XGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz) HDMI (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 576i@50 Hz, 480i@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)) | Pixel Pitch | 0.28 mm |
| Pixels Per Inch | 89 @ native resolution | Backlight Type | LED Edge-lit |
| Brightness (typical) | 500 cd/m2 | Contrast Ratio (typical) | ≥8,000:1 (Out of the box conditions, local dimming ON) |
| Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 | Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz | Active Screen Area | 42.3 x 23.8 in. / 1073.8 x 604.0mm |
| Orientation | Landscape/Portrait | Dimming Capability | Local Dimming Capable |
| Displayable Colors | More than 1.08 billion (8-bit+FRC) | Color Temperature (Max) (°K) | 10000K |
| Color Temperature (Min) (°K) | 2600K | Gamma (Typical) | Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3 |
Synchronization Range
| Horizontal (Analog/Digital) | Digital: 26.0 - 135.0kHz | Vertical | Digital: 23.0 - 86.0Hz |
Input Signal
| Video | Digital TMDS / DisplayPort |
|
Signal Compatibility/Connectivity
| PC Signal Compatibility | Yes | Macintosh Signal Compatibility | Yes |
| Video | Digital TMDS / DisplayPort | External Control | LAN and RS232 In - Full external control capabilities |

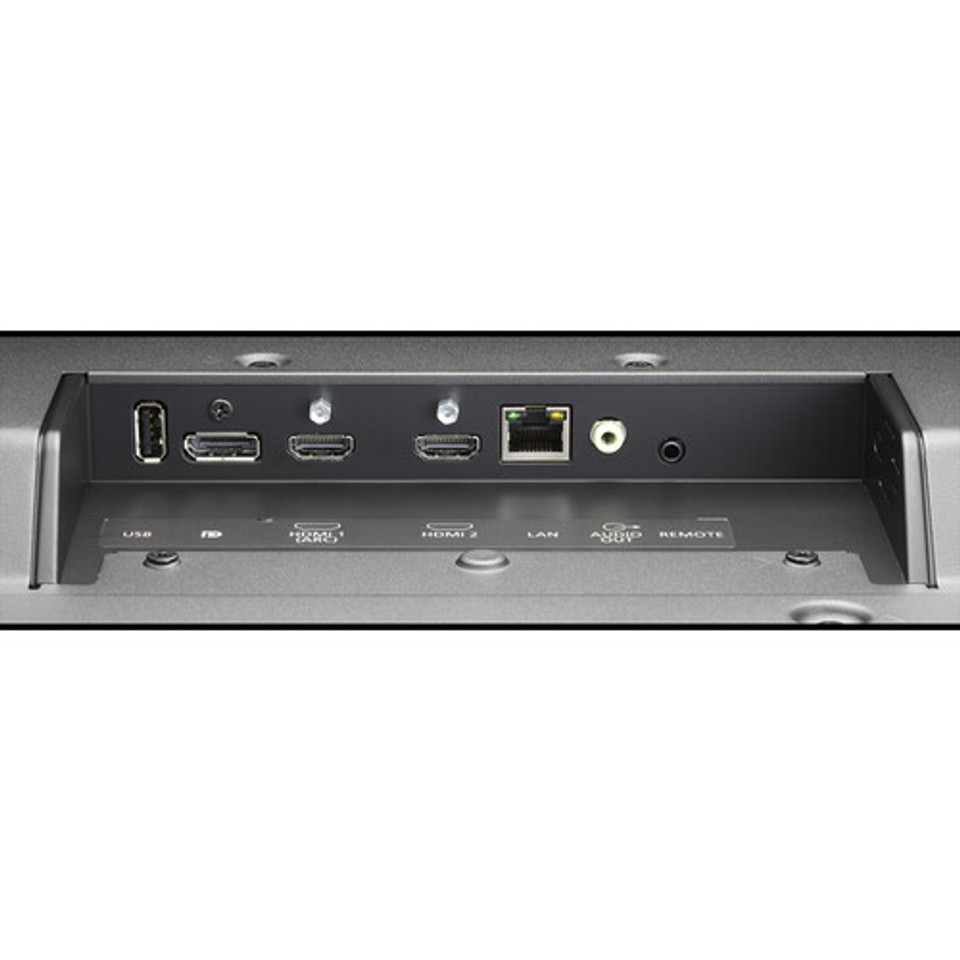

Input TerminalsDigital: HDMI (2.0 x 2 with HDCP), DisplayPort (1.2 with HDCP) Audio: 3.5 Mini-Jack x2, DisplayPort Audio, HDMI Audio x3 External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) Data: USB 2.0 (Media Player) | Output Terminals Audio: 3.5mm Mini-Jack | ||
Power Consumption (typical)
| On | 95W | ECO Mode Standby | <0.5W |
| Network Standby | 0.5W | Power Consumption (max) | 115W (Max Brightness), 225W (Brightness Max, SDM Max, Volume Max) |
| Power Savings Mode | 2 W | Power Requirements | 2.5A @ 100V, 1.1A @ 240V |
Physical Specifications
| Bezel Width (Left/Right, Top/Bottom) | 0.49 in./0.49 in., 0.47 in./0.61 in. : 12.5 mm/12.5 mm, 12 mm/15.6 mm | Dimensions (WxHxD) Without stand: 43.4 x 25.1 x 2.4 in. / 1103.4 x 636.2 x 61.1 mm Shipping: 51.1 x 33.9 x 8.8 in. / 1298.0 x 860.0 x 224.0mm | |
| Weight Net Weight (without stand): 48.1 lbs. / 21.8 kg. Shipping: 63.3lbs. / 28.7kg | VESA Hole Configuration | 300 x 300mm (M6 x 4-hole) | |
Environmental Conditions
| Operating Humidity | 20 - 80% | Operating Altitude | 9843 ft. / 3000m |
| Storage Temperature | -4-140°F / -20-60°C | Storage Humidity | 10-80% |
| Storage Altitude | 40,000 ft. / 12,192m |
| |
Environmental Compliance
| ENERGYSTAR | Energy Star 8.0 |
|
Limited Warranty (parts & labor)
| 3 years Advanced Exchange |
|
Additional Features
|
|
Accessories
| Optional |
|
|
Cooling Method
| Multiple integrated temperature sensors and fans for active cooling and real time temperature measuring to ensure that the display stays cool for extended runtimes |
