Description

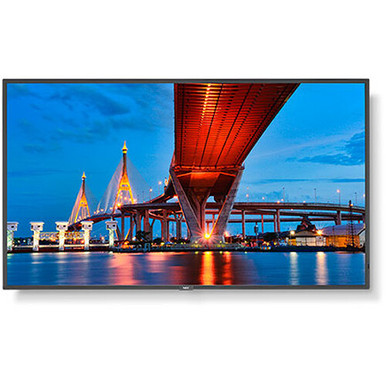

NEC ME651 Overview

With the new fully commercial NEC ME Series big format screens, you can create pixel-perfect pictures at a low cost. The ME series provides customers with a reliable mainstream digital signage display that can support both landscape and portrait orientations while also containing the integrated NEC MediaPlayer via the Raspberry Pi Compute Module 4 that allows for seamless playback through System on Chip capabilities. Simple and targeted connectivity choices provide consumers with the most up-to-date possibilities while avoiding overpaying for extra and underused interfaces.

Failover Capabilities full Input Detect functionality allow the display to automatically switch to a secondary or tertiary source if the primary source fails
400 cd/m2 brightness and HDR compatibility captures the attention of the audience
Integrated Media Player allows for audio, video, or image playback via USB
Crystal Clear Imagery with 4K UHD native resolution
Bidirectional and Full External Control
Energy Star 8.0 Certified Product
Full 3-year Commercial Warranty

Specifications:

Display

Panel Technology	IPS	Viewable Image Size	65 "
Aspect Ratio	16:9	Native Resolution	3840x2160
Supported Resolutions	DIsplayPort: V1.2 (HDCP 1.3/2.2) VGA60, SVGA60, XGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz) HDMI (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 576i@50 Hz, 480i@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2))	Pixel Pitch	0.37 mm
Pixels Per Inch	68 PPI	Backlight Type	LED Direct-lit
Brightness (typical)	400 cd/m²	Contrast Ratio (typical)	≥8,000:1 (Out of the box conditions, local dimming ON)
Viewing Angle (typical)	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10	Response Time (Gray to Gray)	8 ms
Refresh Rate	60Hz	Active Screen Area	56.2 x 31.6 in. / 1428.5 x 803.5mm

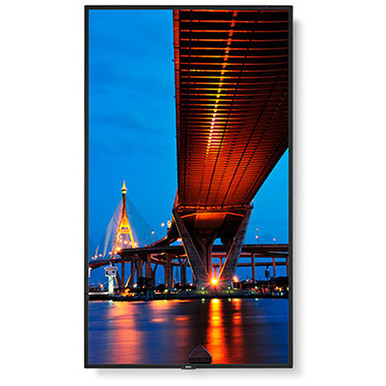

Orientation	Landscape/Portrait	Dimming Capability	Local Dimming Capable
Displayable Colors	More than 1.07 billion	Color Temperature (Max) (°K)	10000K
Color Temperature (Min) (°K)	2600K	Gamma (Typical)	Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3

Synchronization Range

Horizontal (Analog/Digital)	Digital: 26.0 - 135.0kHz	Vertical	Digital: 23.0 - 86.0Hz

Input Signal

Video	Digital TMDS / DisplayPort

Signal Compatibility/Connectivity

PC Signal Compatibility	Yes	Macintosh Signal Compatibility	Yes
Video	Digital TMDS / DisplayPort	External Control	LAN and RS232 In - Full external control capabilities

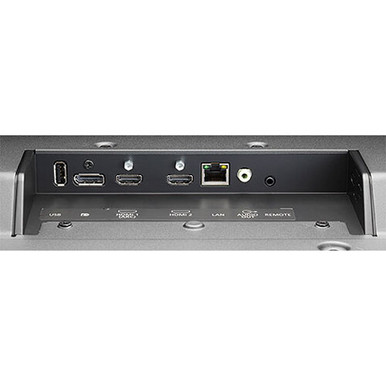

Input Terminals Digital: HDMI (2.0 x 2 with HDCP), DisplayPort (1.2 with HDCP) Audio: Audio Mini-Jack, DisplayPort Audio, HDMI Audio External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) Data: USB 2.0 (Media Player)		Output Terminals Audio: 3.5mm Mini-Jack

Power Consumption (typical)

On	165W	ECO Mode Standby	<0.5W
Network Standby	2W	Power Consumption (max)	165W (Max Brightness), 320W (Brightness Max, Volume Max)
Input Current	3.4A @ 100V 1.6A @ 240V

Physical Specifications

Bezel Width (Left/Right, Top/Bottom)	0.59 in./0.59 in., 0.59 in./0.59 in. : 14.9 mm/14.9 mm, 14.9 mm/14.9 mm	Dimensions (WxHxD) Without stand: 57.6 x 33 x 2.7 in. / 1462.3 x 837.3 x 68.1 mm Shipping: 68.4 x 40.7 x 11.0 in. / 1736.0 x 1033.0 x 280.0mm
Weight Net Weight (without stand): 89.9 lbs. / 40.8 kg. Shipping: 91.9 lbs. / 41.7kg		VESA Hole Configuration	400 x 400mm (M8 x 4-hole)

Environmental Conditions

Operating Temperature	32-104°F / 0-40°C	Operating Humidity	20 - 80%
Operating Altitude	9843 ft. / 3000m	Storage Temperature	-4-140°F / -20-60°C
Storage Humidity	10-80%	Storage Altitude	40,000 ft. / 12,192m

Environmental Compliance

ENERGYSTAR	Energy Star 8.0

Limited Warranty (parts & labor)

3 years Advanced Exchange

Additional Features

AMX Support Automated Email Alert Function CEC Support through HDMI Crestron Roomview Support (FW Update) Display Browser Control Display Wall Calibrator Compatible HDR Support (PQ, HLG, HDR10) Key Guide NaViSet Administrator 2 Compatible OSD Rotation for Portrait Orientation PJ Link Support Power USB Port (5V/2A) Removeable Logo Ornament Real Time Clock Local Dimming TileMatrix Cisco Webex Compatible SNMP Consumer Electronics Control (CEC) Integrated USB Media Player Integrated Temperature sensor Full Input Detect Functionality Programmable Gamma Energy Star 8.0 Scheduler Function Off Timer Vacation Switch
