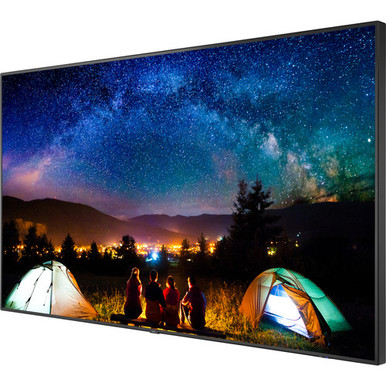

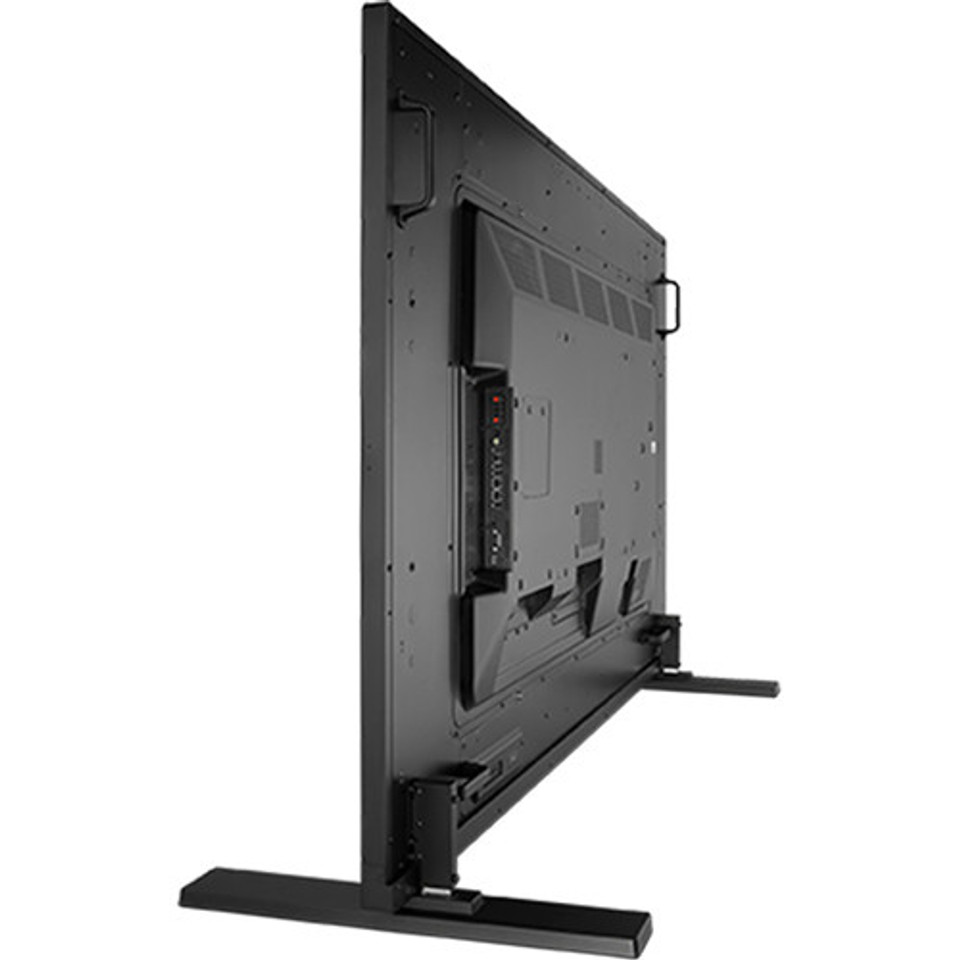

NEC V864Q-AVT3 MultiSync 86" Class 4K UHD Commercial LED Display with Integrated ATSC Tuner Module

Condition:
New
$7,349.00
Shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
V864Q-AVT3
UPC:
805736073737
MPN:
V864Q-AVT3

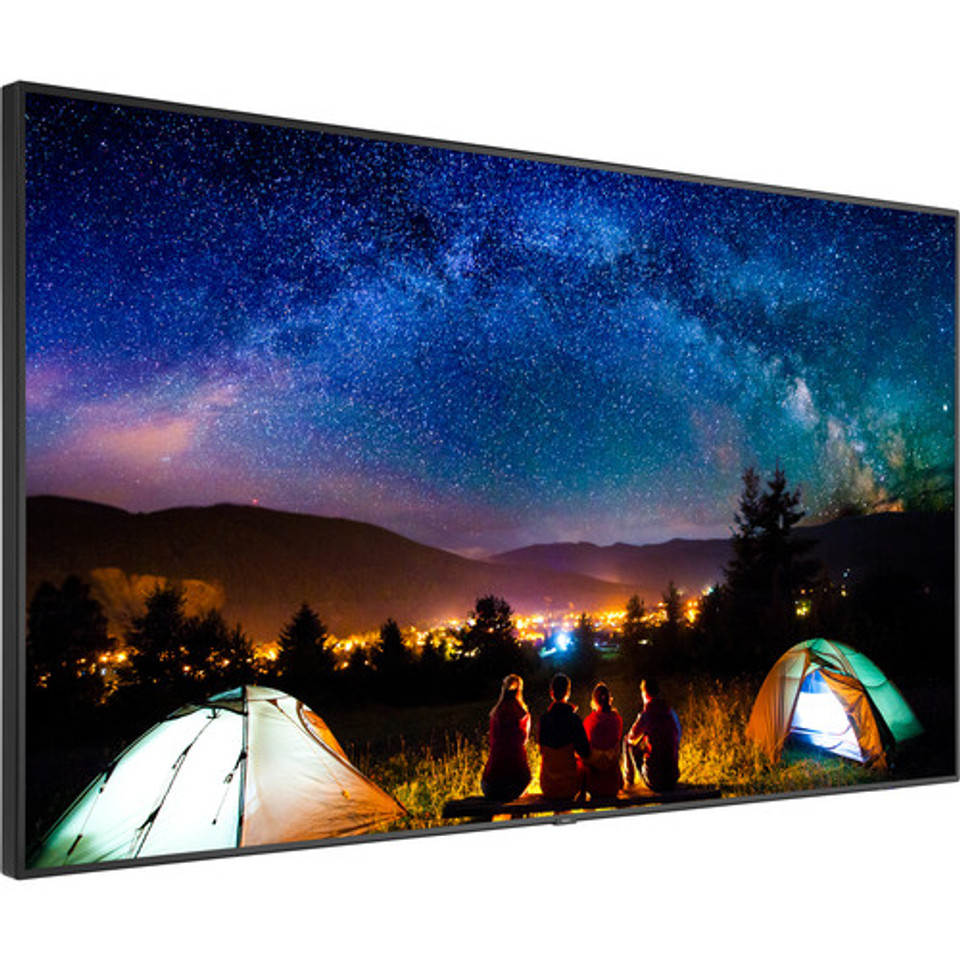

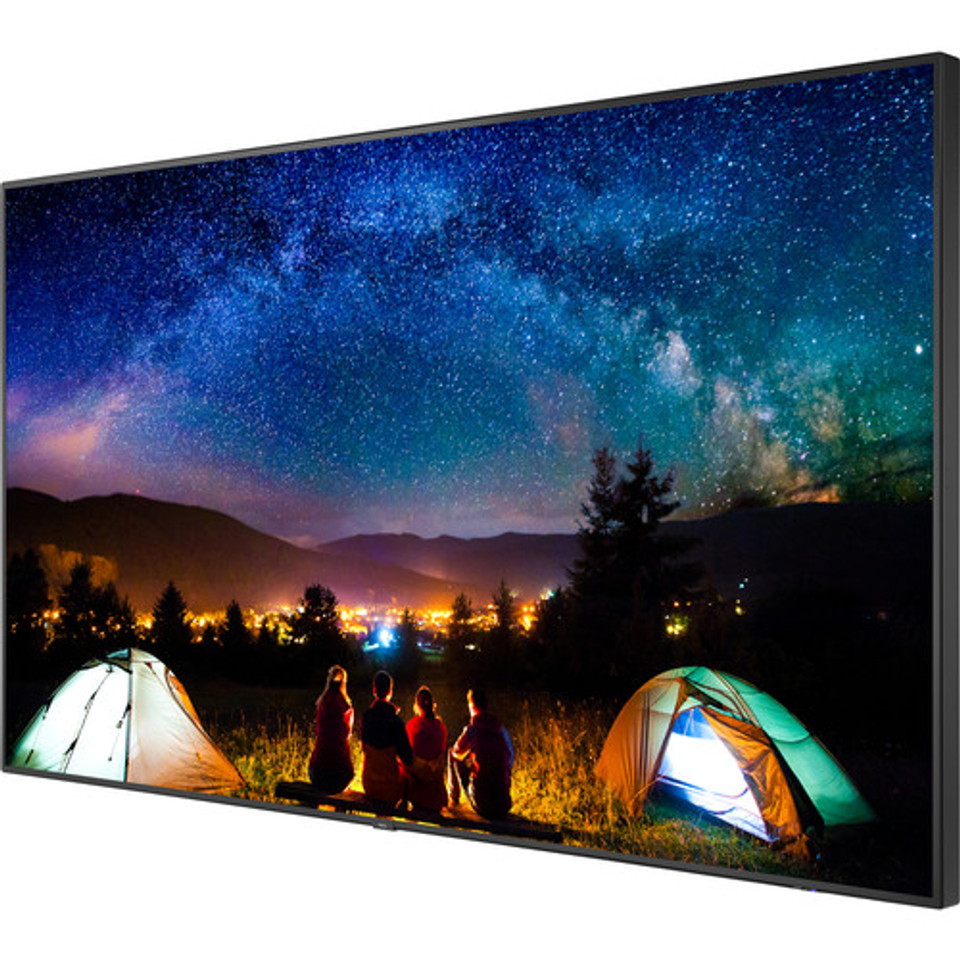

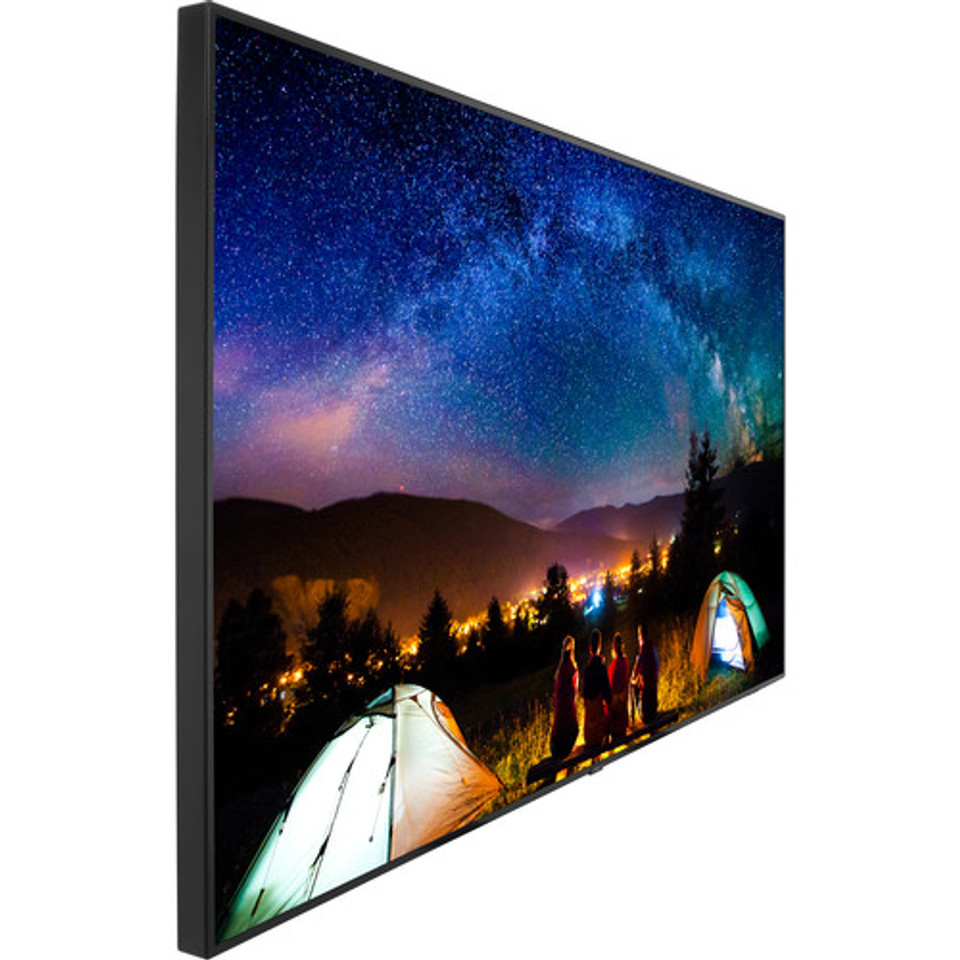

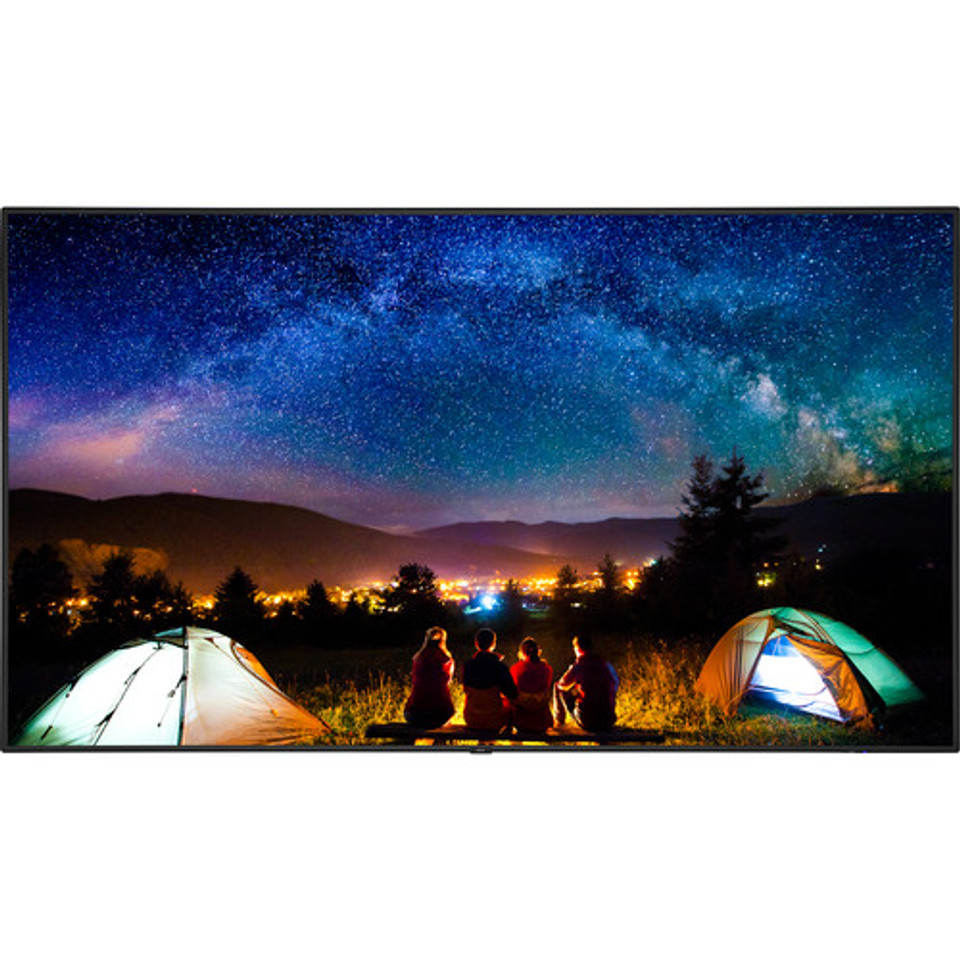

  • NEC MultiSync V864Q-AVT3 86"-Class 4K UHD Commercial LED Display with Integrated ATSC Tuner Module
  • NEC MultiSync V864Q-AVT3 86"-Class 4K UHD Commercial LED Display with Integrated ATSC Tuner Module
  • NEC MultiSync V864Q-AVT3 86"-Class 4K UHD Commercial LED Display with Integrated ATSC Tuner Module
  • NEC MultiSync V864Q-AVT3 86"-Class 4K UHD Commercial LED Display with Integrated ATSC Tuner Module
  • NEC MultiSync V864Q-AVT3 86"-Class 4K UHD Commercial LED Display with Integrated ATSC Tuner Module
  • NEC MultiSync V864Q-AVT3 86"-Class 4K UHD Commercial LED Display with Integrated ATSC Tuner Module
  • NEC MultiSync V864Q-AVT3 86"-Class 4K UHD Commercial LED Display with Integrated ATSC Tuner Module
  • NEC MultiSync V864Q-AVT3 86"-Class 4K UHD Commercial LED Display with Integrated ATSC Tuner Module
Frequently bought together:

Description

With onboard ATSC/NTSC tuner, the 86" NEC V864Q-AVT3 allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Raspberry Pi Compute Module slot for source integration directly into the display. The V864Q-AVT3 series boasts a 500 cd/m² brightness along with a new anti-glare surface that allows for efficient readability when ambient light is present and is ideal for 24/7 signage in Retail environments as well as when used for presentation purposes in Corporate or Educational institutions.

  • Stylish and sleek design allows for easy and unobtrusive integration into any environment
  • 500 cd/m² brightness combined with UHD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions
  • SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance
  • Integrated Media Player allows for audio, video or image playback via USB or SD card
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation
  • Full 3 year commercial warranty to allow for peace of mind and protection of this investment

Specifications:

Display

Panel Technology S-IPS Viewable Image Size 86 "
Native Resolution 3840x2160 Supported Resolutions DisplayPort: V1.2 (HDCP 1.3) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (DisplayPort 1.2))HDMI: (HDCP 1.4/2.2)VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (MODE2)), 4096 x 2160 (30Hz, 24Hz, 25Hz, 60Hz (MODE2))
Pixel Pitch 0.49 mm Pixels Per Inch 51 PPI
Brightness (maximum) 500 cd/m2 Contrast Ratio (typical) 1200:1 (without local dimming)
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Response Time (typical) 8 ms
Refresh Rate 60Hz Active Screen Area 74.61 x 41.97 in. / 1895.04 x 1065.96mm
Orientation Landscape/Portrait Dimming Capability Local Dimming Capable
Displayable Colors More than 1.07 billion

Synchronization Range

Horizontal (Analog/Digital) 26kHz - 135.0kHz

Signal Compatibility/Connectivity

PC Signal Compatibility Yes Macintosh Signal Compatibility Yes

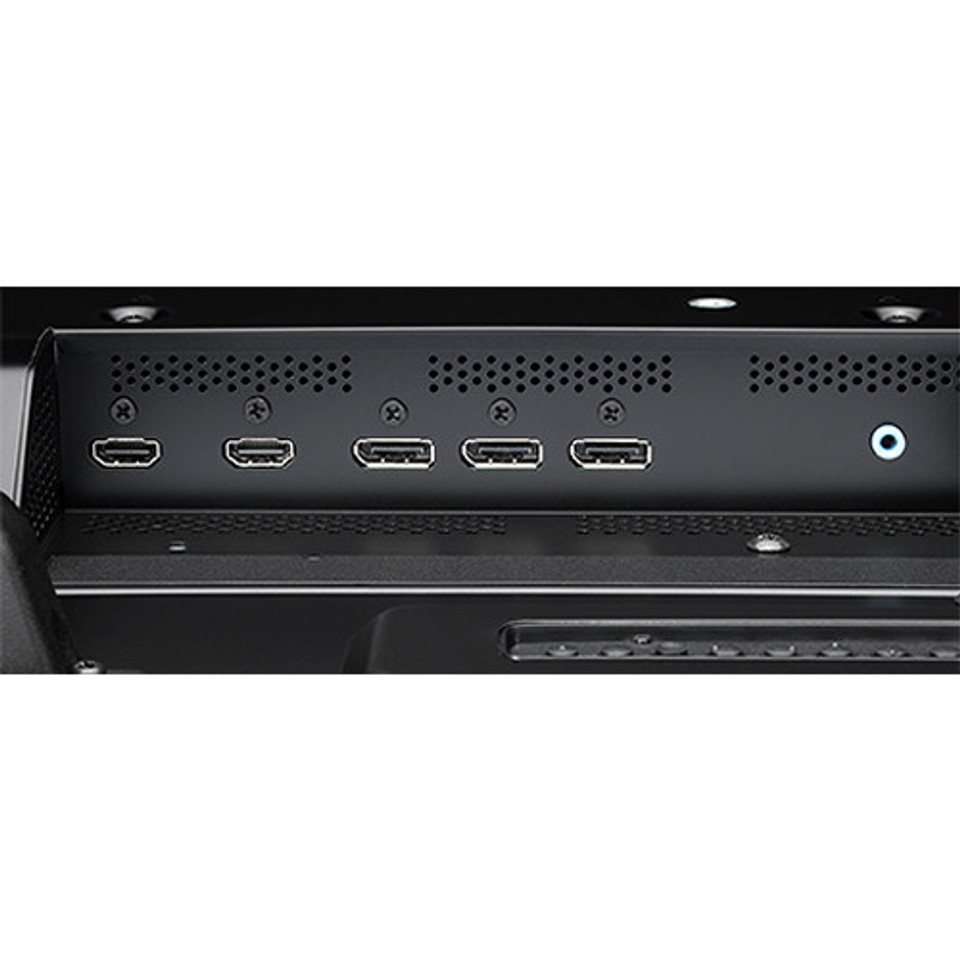

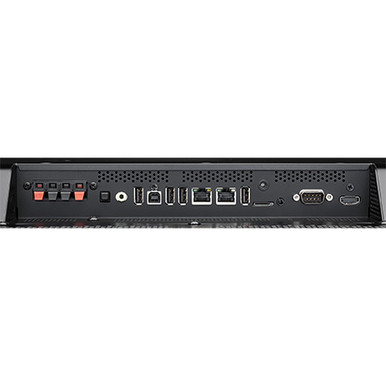

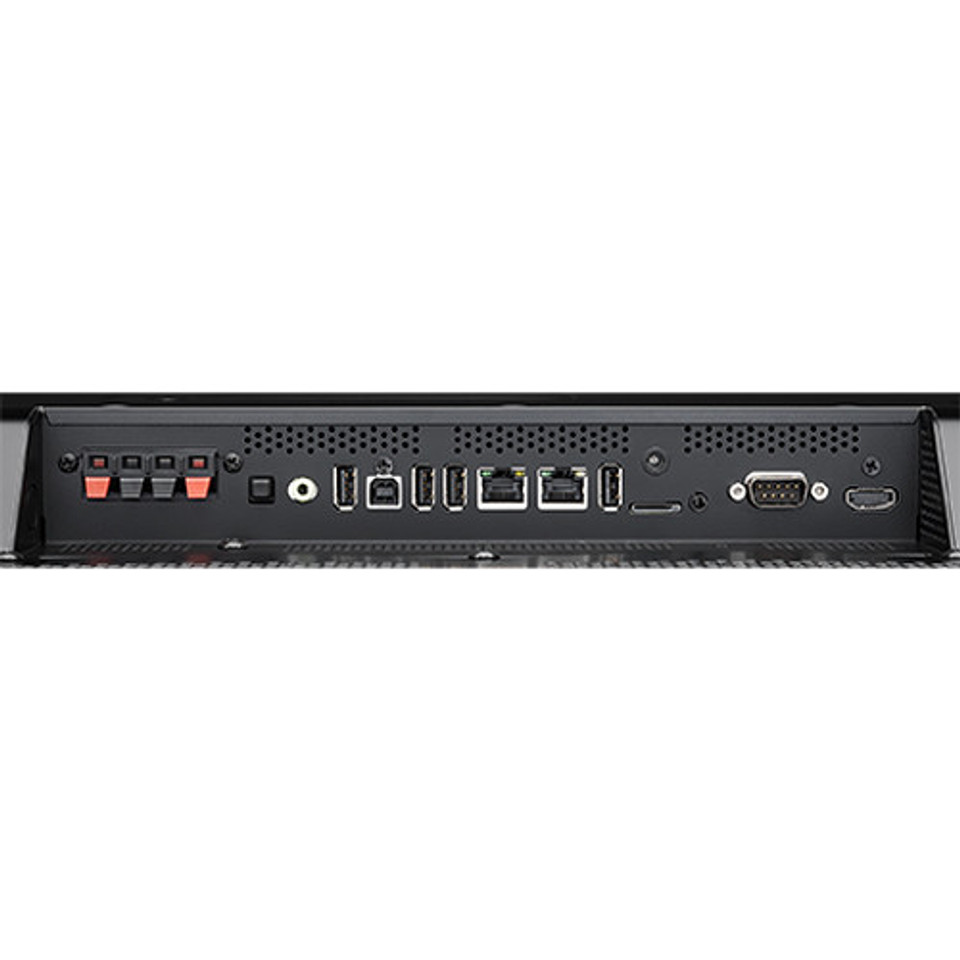

Input Terminals
Digital:
HDMI 2.0 (3), DisplayPort 1.2 (2)
Audio:
Audio Mini-Jack, DisplayPort Audio, HDMI Audio
External Control:
RS-232C, LAN, IR Remote
Data:
microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered)
Output Terminals
Digital:
DisplayPort (Outputs DisplayPort1)
Audio:
Audio Mini-Jack, External Speaker Out (2), DisplayPort Audio
External Control:
LAN

Power Consumption (typical)

On 230W ECO Mode Standby 0.5W
Network Standby 2W Power Consumption (max) 425W (300W Brightness Max)
Input Current 5.0A @ 100V
2.1A @ 240V


Physical Specifications

Bezel Width (Left/Right, Top/Bottom) 0.6 in./0.6 in., 0.6 in./0.6 in. : 15.3 mm/15.3 mm, 15.3 mm/15.3 mm Dimensions (WxHxD)
With stand:
1928.2 x 1136.4 x 606.0mm / 75.91 x 44.74 x 23.9 in.
Without stand:
75.91 x 43.28 x 2.93 in. / 1928.2 x 1099.2 x 74.3 mm
Shipping:
2157.0 x 1290.0 x 320.0mm / 84.92 x 50.79 x 12.60 in.
Weight
Net Weight (with stand):
137.6 lbs. / 62.41kg
Net Weight (without stand):
127.4 lbs. / 57.79 kg.
Shipping:
161.8 lbs. / 73.4kg
VESA Hole Configuration 400 x 400mm (M8 x 16mm)
600 x 400mm (M8 x 16mm)

Environmental Conditions

Operating Temperature 32-104°F / 0-40°C Operating Humidity 20-80%
Operating Altitude 9843 ft. / 3000m Storage Temperature -4-140°F / -20-60°C
Storage Humidity 10-90% Storage Altitude 40,000 ft. / 12,192m

Limited Warranty (parts & labor)

3 Years Advanced Replacement

Additional Features

  • Raspberry Pi Compute Module Compatible
  • SpectraView Engine Color Control (Including Uniformity Adjustment)
  • Integrated OPS Option Slot (filled with SB-11TM)
  • Localized Dimming

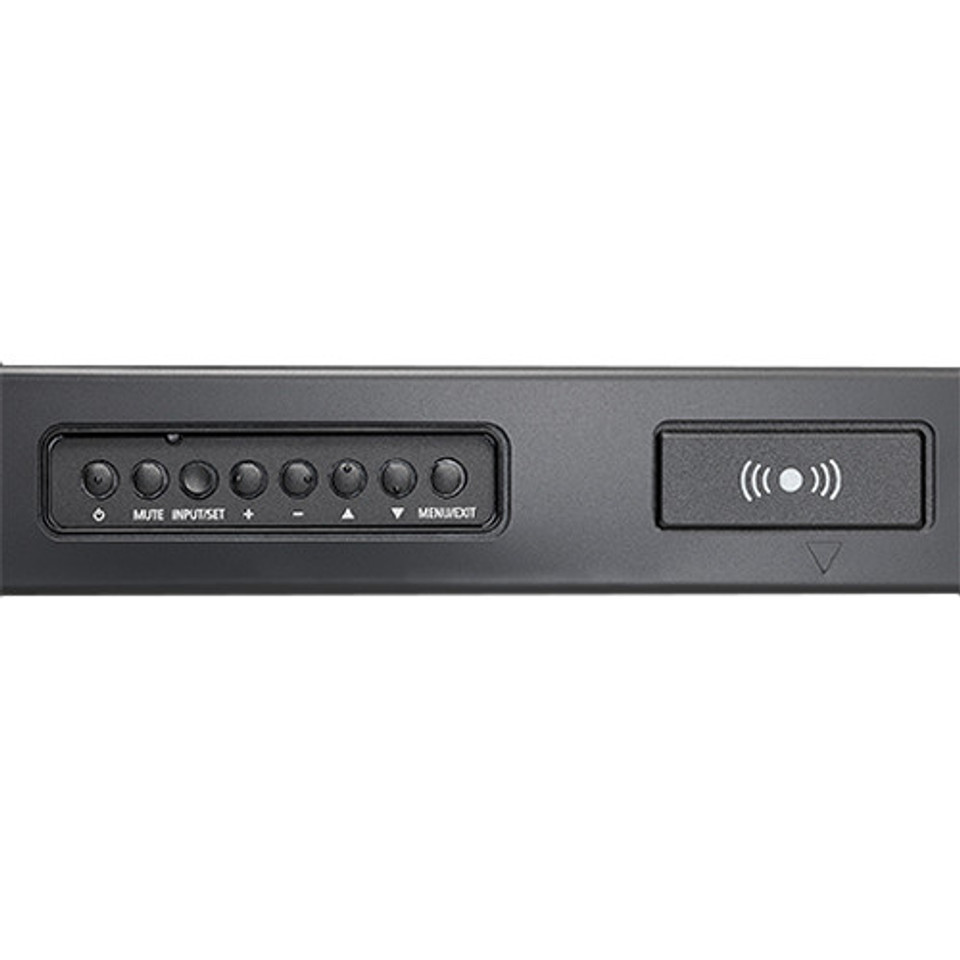

  • On-Screen Key Guide
  • Ethernet Control and Communication
  • USB Upstream/Downstream
  • RS-232 Control and Communication
  • CEC Communication
  • HDCP 1.4 and 2.2 support through HDMI
  • HDCP 1.3 support through DisplayPort
  • Firmware via USB/Network
  • Landscape/Portrait Capable
  • Image Flip
  • TileMatrix (10 x 10)
  • Carbon footprint meter
  • 24/7 Scheduler with Real Time Clock
  • Holiday Settings
  • Screen saver function
  • Multi-Picture Mode
  • 28% haze panel
  • Ambient light sensor
  • Screen Saver Function
  • Optional Human Sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Metal rear cabinet
  • Carrying Handles
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in 10W x 2 speakers
  • Powered USB
  • LED edge-lit backlighting
  • NaViSet Administrator Compatible
  • Auto ID/IP Address Control
  • Crestron RoomView Support
  • AMX Beacon
  • PJLInk Support
  • HDMI and DisplayPort Cable Included


Accessories

Optional
  • Table Top Stand (ST-801)
  • External Speakers (SP-TF1)
  • Standard Wall Mount (WMK-3257)
  • Large Wall Mount (WMK-6598)
  • Human Sensor Accessory (KT-RC2)
  • Compute Module Interface Board (DS1-IF10CE)
  • NEC Raspberry Pi Compute Module (RPi3CM16GB)
  • IR Touch Overlay (OLR-861)


Cooling Method

Integrated Temperature Sensors and Cooling Fans
